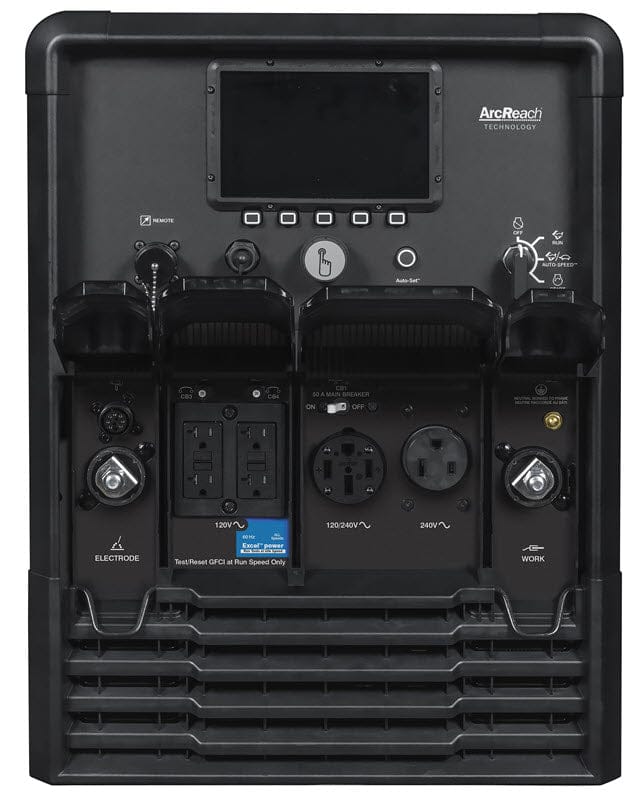

Miller® Trailblazer® 330 Welder EFI with Excel™ Power & Wireless Interface Control 907832002
The Miller® Trailblazer® 330 EFI with Excel™ Power and Wireless Interface Control is a 330 amp DC welder and 12,000 watt AC generator. Weighing in at just 400 pounds, the Trailblazer 330 is over 80 pounds lighter and 13% smaller than previous Miller Trailblazer models. It is specifically designed to take up less room in your pick up truck or UTV.
The Trailblazer 330's WIC (Wireless Interface Control) gives you full remote welder control; including remote amp/voltage control and engine start/stop. The wireless interface control is a handheld unit that adjusts all weld parameters, stores custom weld settings, displays real time engine status and service intervals, AND acts as a remote engine start/stop. Wireless interface control saves fuel, reduces jobsite noise, and enhances worker safety and productivity by reducing trips back and forth to the welder. Built-in ArcReach® also allows the Trailblazer 330 to communicate directly with a Miller ArcReach wire feeder or remote control through the welding leads, eliminating the need for costly control cables. Miller's exclusive AutoSet™ technology allows you to access pre-programmed welding parameters, based on metal thickness and welding process, for easy set up. You can also fine tune your output amperage and voltage manually, to suit your welding style.
The Miller Trailblazer® 330 EFI with Excel™ Power & Battery Charger is the most fuel efficient gas engine welder/generator in its class. It features a Kohler® 23 horse power, fuel injected engine with Miller's exclusive Auto-Speed™ technology. Auto-Speed matches the engine speed with the welding load. This means that the engine can run at optimum RPM rather than full RPM while under load. This translates into reduced fuel consumption, quieter operation and longer engine life.
Miller's exclusive Excel™ Power provides 2,400 watts of generator power while the engine is at idle speed, resulting in dramatically reduced fuel costs. Excel Power reduces emissions, operating noise and extends run time hours. The built in battery charger can charge batteries at 12 volts or 24 volts. It produces 150 amps of charging power and up to 300 amps of jump start power.
The Trailblazer® 330 EFI has the most smooth, stable welding arc in the business. It produces X-Ray quality welds whether you are using MIG, Stick or DC TIG welding processes. For MIG welding, the 330 has a direct spool gun connection for Miller Spoolmatic® series and Spoolmate™ 200 spool guns, eliminating the need for a WC-24 weld control. For stick welding, the Trailblazer 330's Dynamic Dig™ feature produces a consistent arc that is highly adaptive. Lift-Arc™ DC TIG with Quiet Pulse™ is standard on every Trailblazer 330, and produces outstanding results in TIG welding applications time after time.
Processes (X-Ray Quality)
Stick (SMAW)
MIG (GMAW)
Flux Cored (FCAW)
DC TIG (GTAW)
Pulsed DC TIG (GTAW-P)
Air Carbon Arc (CAC-A) Cutting and Gouging (3/16 in carbons)
Air Plasma Cutting and Gouging with optional Spectrum models
AC Generator
Applications
Industrial Applications
Fabrication
Maintenance
Repair
Structural Steel Work
Pipe
Sheet Metal
Features
Wireless Interface Control - With wireless interface control, you can change welding processes, adjust parameters, select and save preset programs, turn the machine on/off, get service reminders and more from wherever you are on the jobsite. Extend time between fill ups and maintenance intervals while eliminating the need to go back to your machine to make adjustments.
300 foot operating range from welder to remote
View engine status, fuel level, and battery charge level of remote.
View and select between all available processes.
Turn contactor on/off manually in remote welding mode. Turn engine on/off with remote.
Save custom presets in up to four programs and easily switch between pre-programmed settings.
Quickly adjust and save arc control settings including DIG, DIG range inductance and Auto-Stop.
Adjust amperage or voltage, by increments or percentage, while welding.
Excel™ Power - Excel power provides 120V, 60Hz of pure sine wave generator power at idle speed and while welding. When connected to the Excel power receptacle, you get up to 2400 watts of the cleanest generator power available. Plus, you can run most jobsite tools - like grinders, chop saws, drills and lights at idle speed, which provides:
Exceptional fuel-efficiency
Extended runtimes
Quieter operation
Longer engine life
EFI gas engine optimizes the air/fuel ratio for all engine speeds and engine loads, resulting in lower operational costs, fewer emissions, longer run times and better performance when compared to carburetor models. The payback from fuel savings alone is a matter of months. EFI will give you:
Easy starts with no choke required
Reliable operation, even with infrequent use - less prone to fuel deterioration
Fuel efficiency - use up to 27 percent less fuel
Fewer emissions - 27 percent less CO and 33 percent lower HC+NOx levels
ArcReach® standard on all models - ArcReach® technology uses the existing weld cable to communicate welding control information between a Miller® ArcReach® feeder or ArcReach® Stick/TIG remote and Bobcat® 265.
This technology eliminates the need for control cords, and their associated problems and costs.
Designed for the professional welder - The Trailblazer® 330 delivers unbeatable arc performance in all weld processes, providing the smoothest, most stable arc in the industry.
Ultra-adaptive arc control - Unlike conventional DIG that provides a preset amount of short-clearing current, Miller-exclusive Dynamic DIG technology works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. Delivers a smoother more consistent arc that can be tailored to match application, material, fit-up and welder technique.
Lift-Arc™ DC TIG with Quite Pulse™ - DC TIG arc is initiated without the use of high frequency. Simply touch the tungsten electrode to the work piece and lift. Quiet Pulse pulsed TIG welding gives you superior control of the welding arc while eliminating the noise typically associated with pulsed TIG welding processes.
Direct spool gun connection - Connect a Miller Spoolmatic® Series or Spoolmate™ 200 spool gun directly to the welder. No need for a WC-24 weld control.
Smart-Cor™ technology - Independent weld and generator power in an improved, more compact design.
No interaction between jobsite tools and the welding arc, resulting in:
Stronger, cleaner, more efficient generator power
Reduced size and weight
Improved arc performance
Auto-Speed™ technology - Automatically adjusts the engine speed to run at lower speeds depending on the total power needed, resulting in:
Exceptional fuel-efficiency
Extended run times
Quieter operation
Reduced emissions
Innovative design - Engine is rotated to the front to create more efficient airflow, resulting in:
Quieter operation
Reduced size and weight
Easier maintenance
More portable, uses less truck space - Miller Trailblazer 330 welder/generators are up to 13% smaller and 80 lbs. lighter than previous models, which means moving them is faster and easier, for maximum productivity. And because they take up less space, Trailblazer welder/generators let work trucks carry more equipment and gear, so your work crews can be ready for anything.
