Miller XR A Pistol Grip Air-Cooled Gun - 15ft. 198127

Code: 198127

Skip to product information
1 of 1

Cyberweld Price $2,339.00
Cyberweld Price $2,339.00
Mfg Industrial Price: $2,701.00
(You Save $362.00)
Finance Options:

This item qualifies for free standard shipping.

Select Your Free Zone Promo Bonus

-
+
FAST & FREE SHIPPING On All Orders Over $99

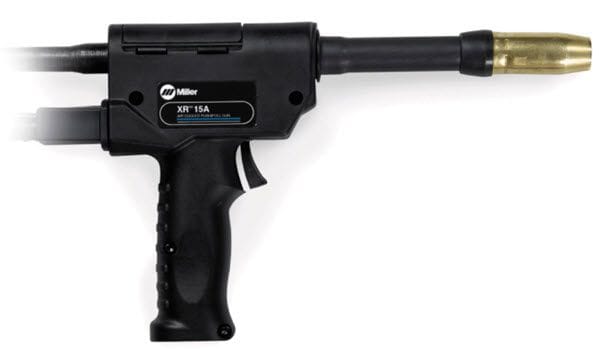

Miller® XR™ Pistol Grip Gun - 15ft. 198127 (Air-Cooled)

The Miller® XR™ Pistol is a 250 amp, air-cooled push-pull gun with 15 foot cable and pistol-style grip. When paired with a Miller XR Control, push-pull wire feeder or larger Millermatic® MIG welder, it is an excellent, economical solution for feeding aluminum or other soft solid welding wires.



Process
  • MIG (GMAW) welding with Aluminum and other soft alloy wire

    Applications
    Manufacturing Industrial
    Sign Manufacturing
    Typical Aluminum Fabrication
    Shipbuilding
    Truck and Trailer Manufacturing
    Railroad

    Features
  • Accepts patented, single-turn, quick-change FasTip™ and Bernard® Centerfire™ contact tip.
  • 15-foot cable length.
  • Replaceable feed cable liner reduces parts costs and service time by allowing a simple means of removing and replacing the liner and not the complete feed cable.
  • Adjustable gun barrel to easily vary contact tip-to-nozzle position.
  • Easy access to drive assembly saves time.
  • Trigger hold reduces fatigue by allowing operator to weld without holding the trigger. (Available when paired with the XR-Control or AlumaFeed™ wire feeder)





    Comes complete with:
  • Drive roll for .030 thru 1/16 diameter wire
  • Idler roll
  • Inlet guide
  • Two FREE 16 lb. spools of Hobart® 4943 .035 diameter aluminum MIG welding wire.




  • Get two FREE 16 lb. spools of Hobart® MaxalMig® 4943 .035 diameter aluminum MIG welding wire with the purchase of this XR™ Pistol push-pull gun. While supplies last. (No substitutions allowed.)

    Hobart® MaxalMig® ER4943 .035 Aluminum MIG Welding Wire - 16# Wire Basket Spool 494303512

    16 lb. Wire Basket Spool - Genuine Hobart® MaxalMig® ER4943 .035 diameter aluminum MIG welding wire is formulated to be used in the same welding applications as ER4043, but with a 25% higher ultimate tensile strength (UTS) and 50% higher yield strength in the "as welded" state. ER4943 has moderate to high strength (35 ksi typical), with a low melting temperature and excellent fluidity. It is well-suited for welding 6XXX series aluminum. It is classified as AWS A5.10 ER4943 and is an all-position solid MIG wire with excellent corrosion resistance and low shrinkage rate.

    The Hobart MaxlMig® 12 inch wire basket spool is made from heavy duty steel and can be put into your shop's scrap metal recycle bin when your MIG wire is depleted. The wire basket protects your welding wire far better than plastics spools and doesn't have to end up in a landfill when your job is done.

    Applications
    Welding 6xxx alloys
    Automotive/motorcycle frames
    Sports products - scooters/bicycles
    General repair and maintenance



    Features
  • Moderate/High strength (35 ksi typical)
  • Low melting temperature/high fluidity
  • Low welding smut and discoloration
  • Low ductility, formability, and lower toughness
  • Moderate electrical conductivity and thermal conductivity
  • Excellent corrosion resistance
  • Low shrinkage rate/reduced distortion
  • Low hot cracking sensitivity in most applications

    Shielding Gas:
    Argon 100%
    Argon/Helium mixes for 1 inch + thick plate





  • Hobart Multi-Use MIG Welding Pliers 770150

    Hobart Multi-Use MIG Welding Pliers 770150

    2.0
    Rated 2.0 out of 5 stars
    1 Review
    Regular price
    $10.80
    Lowest Internet Price
    Mfg Industrial Price: $20.95
    $10.80
    You Save $10.15

    Hobart® Multi-Use MIG Welding Pliers are ideal for welding, electrical, mechanical, farm and home use.

    Spoolmatic 30A Drive Roll VK .030-1/16 (Old Style) 136135

    Spoolmatic 30A Drive Roll VK .030-1/16 (Old Style) 136135

    5.0
    Rated 5.0 out of 5 stars
    1 Review
    Regular price
    $54.74
    Lowest Internet Price
    Mfg Industrial Price: $62.56
    $54.74
    You Save $7.82

    Genuine Miller® Drive Roll VK Groove .030 - 1/16 for your Miller Spoolmatic® 15A & 30A spoolgun.

    Miller Phos Bronze Head Tube Liner 212156

    Miller Phos Bronze Head Tube Liner 212156

    Regular price
    $45.70
    Lowest Internet Price
    Mfg Industrial Price: $50.92
    $45.70
    You Save $5.22

    Package of 2 Genuine Miller® Phos Bronze head tube liners for all Spoolmatic® spoolguns and XR™ Pistol push-pull guns.

    Miller FasTip XR Nozzle Insulator 232284

    Miller FasTip XR Nozzle Insulator 232284

    Regular price
    $11.35
    Lowest Internet Price
    Mfg Industrial Price: $12.60
    $11.35
    You Save $1.25

    Package of 1 Genuine Miller® FasTip™ 232284 nozzle insulator. Suitable for all Miller XR™-Pistol, XR™-Edge, and Miller 3rd Generation (FasTip) Spoolmatic® 15A & 30A spoolguns.

    Miller FasTip XR Diffuser 227749

    Miller FasTip XR Diffuser 227749

    Regular price
    $17.30
    Lowest Internet Price
    Mfg Industrial Price: $26.94
    $17.30
    You Save $9.64

    Package of 1 genuine Miller® FasTip™ replacement diffuser FasTip, .125 recess. Suitable for all Miller XR™-Pistol, XR™-Edge and 3rd generation (FasTip) Miller Spoolmatic® 15A & 30A spoolguns.

    Miller FasTip .035 Contact Tip 206186

    Miller FasTip .035 Contact Tip 206186

    5.0
    Rated 5.0 out of 5 stars
    1 Review
    Regular price
    $46.25
    Lowest Internet Price
    Mfg Industrial Price: $74.00
    $46.25
    You Save $27.75

    Package of 25 genuine Miller® 206186 FasTip™ .035 contact tips for feeding .035 diameter hard MIG wires and .030 diameter aluminum MIG wire.

    Miller FasTip .040 Contact Tip 206187

    Miller FasTip .040 Contact Tip 206187

    4.0
    Rated 4.0 out of 5 stars
    1 Review
    Regular price
    $46.25
    Lowest Internet Price
    Mfg Industrial Price: $74.00
    $46.25
    You Save $27.75

    Package of 25 genuine Miller® 206187 FasTip™ .040 contact tips for feeding .040 diameter hard MIG wires and .035 diameter aluminum MIG wire.

    Miller FasTip .045 Contact Tip 206188

    Miller FasTip .045 Contact Tip 206188

    5.0
    Rated 5.0 out of 5 stars
    1 Review
    Regular price
    $46.25
    Lowest Internet Price
    Mfg Industrial Price: $74.00
    $46.25
    You Save $27.75

    Package of 25 genuine Miller® 206188 FasTip™ .045 contact tips for feeding .045 diameter MIG welding wire.

    Miller FasTip .052 Contact Tip 206189

    Miller FasTip .052 Contact Tip 206189

    Regular price
    $46.25
    Lowest Internet Price
    Mfg Industrial Price: $74.00
    $46.25
    You Save $27.75

    Package of 25 genuine Miller® 206189 FasTip™ .052 contact tips for feeding .052 diameter hard MIG wires and 3/64 diameter aluminum MIG wire.

    Miller FasTip .068 Contact Tip 206191

    Miller FasTip .068 Contact Tip 206191

    Regular price
    $46.25
    Lowest Internet Price
    Mfg Industrial Price: $74.00
    $46.25
    You Save $27.75

    Package of 25 genuine Miller® 206191 FasTip™ .068 contact tips for feeding .068 diameter MIG welding wire.

    Miller FasTip Brass MIG Nozzle 199610

    Miller FasTip Brass MIG Nozzle 199610

    Regular price
    $18.90
    Lowest Internet Price
    Mfg Industrial Price: $29.41
    $18.90
    You Save $10.51

    Package of 1 - Genuine Miller® FasTip™ 199610 Brass MIG nozzle .500 orifice, tapered. Suitable for all Miller Roughneck® C series MIG guns and new Miller Spoolmatic® 15A & 30A spoolguns & XR™ Push-Pull Guns.

    Miller FasTip Brass MIG Nozzle 199611

    Miller FasTip Brass MIG Nozzle 199611

    Regular price
    $18.90
    Lowest Internet Price
    Mfg Industrial Price: $29.41
    $18.90
    You Save $10.51

    Package of 1 - Genuine Miller® FasTip™ 199611 Brass MIG nozzle .750 orifice, straight. Suitable for all Miller Roughneck® C series MIG guns and new Miller Spoolmatic® 15A & 30A spoolguns & XR™ Push-Pull Guns.

    Miller FasTip Brass MIG Nozzle 199613

    Miller FasTip Brass MIG Nozzle 199613

    Regular price
    $18.90
    Lowest Internet Price
    Mfg Industrial Price: $29.41
    $18.90
    You Save $10.51

    Package of 1 - Genuine Miller® FasTip&trade 199613 MIG nozzle .625 orifice, tapered. Suitable for all Miller Roughneck® C series MIG guns and newer Miller Spoolmatic® 15A & 30A spoolguns & XR™ Push-Pull Guns.

    Miller FasTip Copper MIG Nozzle 199615

    Miller FasTip Copper MIG Nozzle 199615

    5.0
    Rated 5.0 out of 5 stars
    1 Review
    Regular price
    $18.70
    Lowest Internet Price
    Mfg Industrial Price: $29.11
    $18.70
    You Save $10.41

    Package of 1 - Genuine Miller® FasTip™ 199615 Copper MIG nozzle .500 orifice, tapered. Suitable for all Miller Roughneck® C series MIG guns and new Miller Spoolmatic® 15A & 30A spoolguns & XR™ Push-Pull Guns.

    Miller FasTip Copper MIG Nozzle 199616

    Miller FasTip Copper MIG Nozzle 199616

    Regular price
    $18.70
    Lowest Internet Price
    Mfg Industrial Price: $29.11
    $18.70
    You Save $10.41

    Package of 1 - Genuine Miller® FasTip™ 199616 Copper MIG nozzle .750 orifice, straight. Suitable for all Miller Roughneck® C series MIG guns and new Miller Spoolmatic® 15A & 30A spoolguns & XR™ Push-Pull Guns.

    Miller FasTip Copper MIG Nozzle 198855

    Miller FasTip Copper MIG Nozzle 198855

    Regular price
    $36.35
    Lowest Internet Price
    Mfg Industrial Price: $56.62
    $36.35
    You Save $20.27

    Package of 2 Genuine Miller® FasTip™ 198855 Copper MIG nozzle .625 orifice, tapered. Suitable for all Miller Roughneck® C series MIG guns and new Miller Spoolmatic® 15A & 30A spoolguns.
