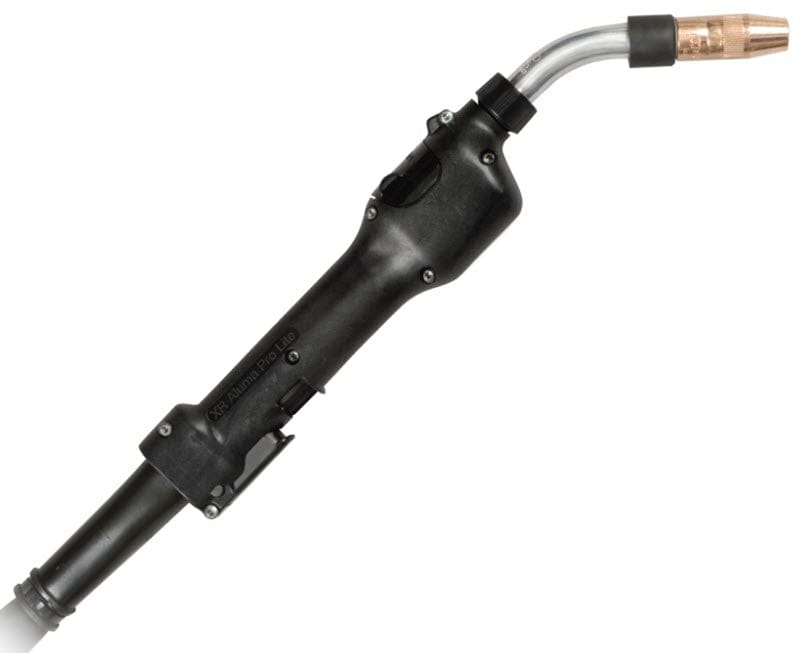

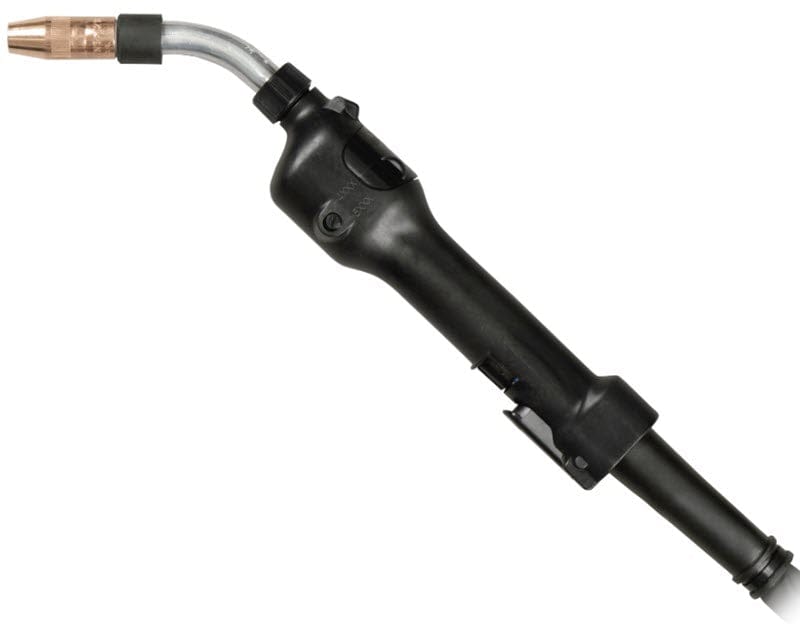

Miller XR™-Aluma Pro Lite Gun 300948 (Air-Cooled)

The Miller XR™-Aluma Pro Lite gooseneck style MIG gun is a 175 amp push-pull wire feed gun that is lightweight and extremely economical. Miller's XR™-Aluma Pro Lite comes with 25 foot cables and hooks directly into your Millermatic® 252, Millermatic® 350P or XR™ push-pull control box. The Aluma Pro Lite comes ready to feed .030 - .047 (3/64) diameter solid wire and is ideal MIG welding with aluminum and other soft alloy wires. The XR™-Aluma Pro Lite weighs only 2 pounds, so it's easy on your body and your wallet.

  • MIG (GMAW)
  • Pulsed MIG (GMAW-P) with pulsing power source

  • Light Industrial
  • Emergency Vehicles
  • Recreational Boats and Vehicles
  • Utility Trailers
  • Sign Manufacturers
  • Tool Boxes
  • Fabrication

  • The 175-amp XR-Aluma-Pro Lite is a compact, lightweight, air-cooled push-pull gun with a 25-foot (7.6 m) cable. It allows operators to easily access hard-to-reach welds, reducing hand and welder fatigue.
  • Aluminum-series-specific tension setting ensures smooth wire feeding performance with 4000 or 5000 series aluminum wires.
  • 3-3/4 turn potentiometer provides better resolution when selecting the right wire speed for the job. The recessed WFS (wire feed speed) control offers durability, yet is easy to use while wearing welding gloves.
  • Trigger mounted at the back of the gun allows operator to easily access hard-to-reach weldments.
  • Replaceable feed cable liner is designed to provide consistent arc performance. It also reduces parts cost and service time by allowing a simple means of removing and replacing liner and not the complete feed cable.
  • Integrated with standard Bernard® rotatable head tube to allow better access into tight spots. Numerous optional Bernard head tubes are available in many sizes and lengths for custom applications and to improve operator comfort.

  • Easy access to drive assembly and removable head tube reduces service time. Pressure release lever allows drive rolls to be held open for wire changeover.
  • Centerfire™ consumables provide superior gas coverage and arc performance. Also compatible with Miller Roughneck®, FasTip™ consumables.

    Comes complete with:
  • Drive roll for .030 thru .047 (3/64) diameter wire
  • Idler roll
  • Inlet guide
  • One FREE 16 lb. spool of Hobart® 4943 .035 diameter aluminum MIG welding wire.

  • Get one FREE 16 lb. spools of Hobart® MaxalMig® 4943 .035 diameter aluminum MIG welding wire with the purchase of this XR™-Aluma Pro Lite push-pull gun. While supplies last. (No substitutions allowed.)

    Hobart® MaxalMig® ER4943 .035 Aluminum MIG Welding Wire - 16# Wire Basket Spool 494303512

    16 lb. Wire Basket Spool - Genuine Hobart® MaxalMig® ER4943 .035 diameter aluminum MIG welding wire is formulated to be used in the same welding applications as ER4043, but with a 25% higher ultimate tensile strength (UTS) and 50% higher yield strength in the "as welded" state. ER4943 has moderate to high strength (35 ksi typical), with a low melting temperature and excellent fluidity. It is well-suited for welding 6XXX series aluminum. It is classified as AWS A5.10 ER4943 and is an all-position solid MIG wire with excellent corrosion resistance and low shrinkage rate.

    The Hobart MaxlMig® 12 inch wire basket spool is made from heavy duty steel and can be put into your shop's scrap metal recycle bin when your MIG wire is depleted. The wire basket protects your welding wire far better than plastics spools and doesn't have to end up in a landfill when your job is done.

    Welding 6xxx alloys
    Automotive/motorcycle frames
    Sports products - scooters/bicycles
    General repair and maintenance

  • Moderate/High strength (35 ksi typical)
  • Low melting temperature/high fluidity
  • Low welding smut and discoloration
  • Low ductility, formability, and lower toughness
  • Moderate electrical conductivity and thermal conductivity
  • Excellent corrosion resistance
  • Low shrinkage rate/reduced distortion
  • Low hot cracking sensitivity in most applications

    Shielding Gas:
    Argon 100%
    Argon/Helium mixes for 1 inch + thick plate
