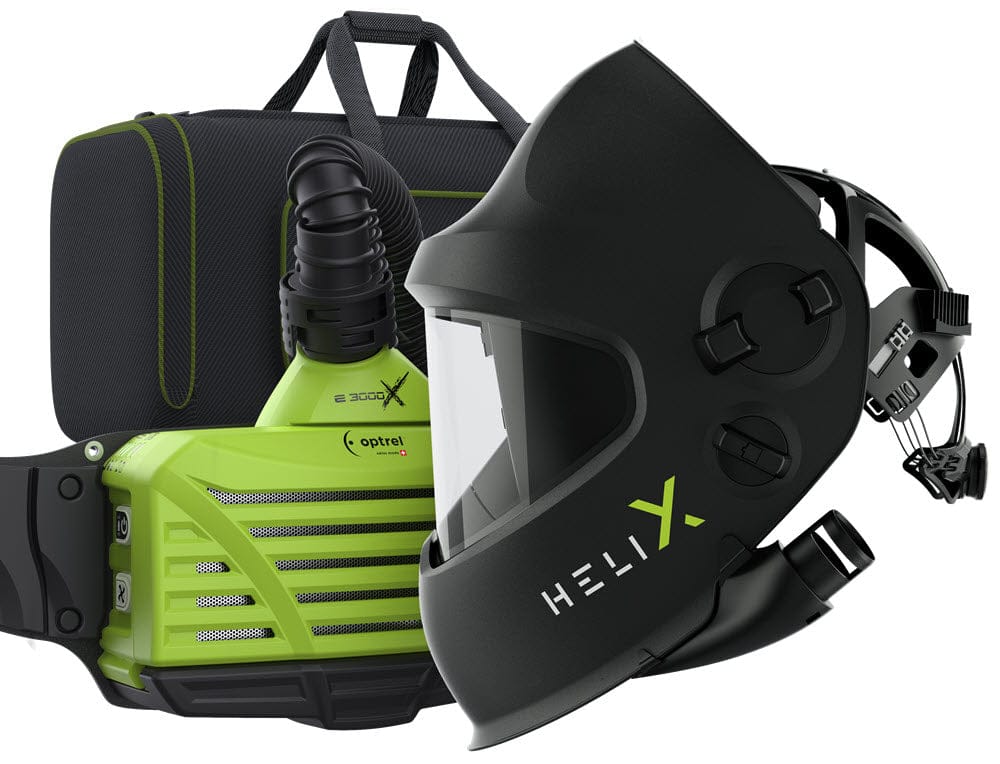

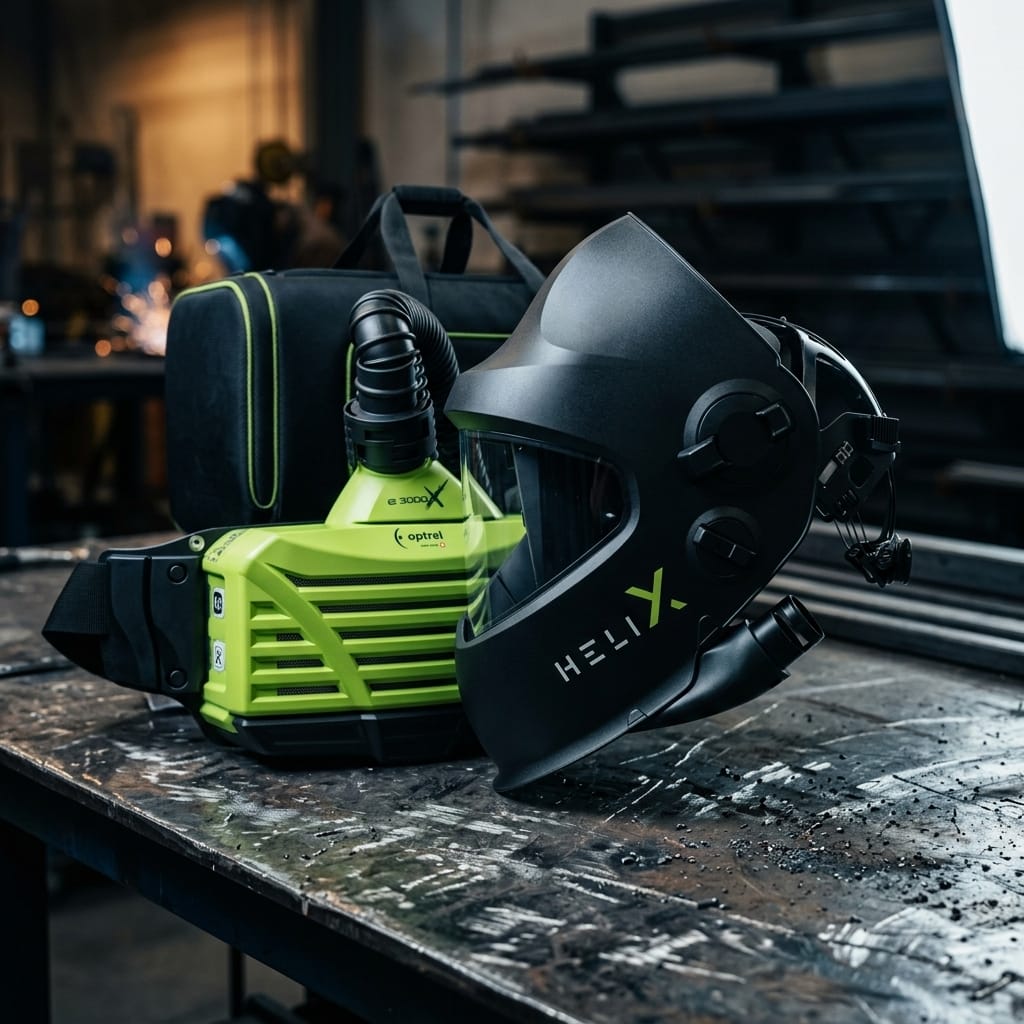

Optrel® e3000x PAPR With Helix Pure Air Quattro Welding Helmet 4550.610
Genuine Optrel® e3000x PAPR (Powered Air Purifying Respirator) with Helix Pure Air Quattro auto-darkening welding helmet filters 99.8% of welding particulates, smoke, aerosols and dust to create a cleaner, healthier work environment under the hood. The e3000x HEPA filter carries a TH3 rating, which means you are getting the highest class of protection available in a PAPR system. The blower unit itself weighs less than 3.5 pounds and comes complete with lithium ion battery that provides up to 18 hours of operation between charges.
Certified to the highest level of respiratory protection in its class, TH3 (HEPA), the e3000X filters and removes 99.8% of harmful solid and liquid airborne particles to deliver clean, filtered breathing air. With the e3000X PAPR system, you complement your optrel PAPR welding helmet with a respiratory protection system, which makes no compromises in matters of safety, health and comfort. Compared to the best in class filter mask (class FFP3), this increases the safety of the user by a factor of ten or even by a factor of 40 when using FFP2 masks.
Complete system comes with e3000x blower motor with hose, TH3 HEPA filter, pre-filter, spark arrestor, battery with charger, belt, and Helix Pure Air Quattro welding helmet with face seal.
Features
NIOSH approved
The highest class of protection (TH3/HEPA) from respirable particles (smoke, aerosol, and dust), including Hexavalent Chromium, most commonly present during welding operations.
Up to 18 hours of operation with included lithium ion battery.
Breathing air becomes cleaner by a factor of up to 500.
Even air distribution in the fresh air helmet.
Automatic air flow control.
Additional cooling effect for keeping a cool head about you.

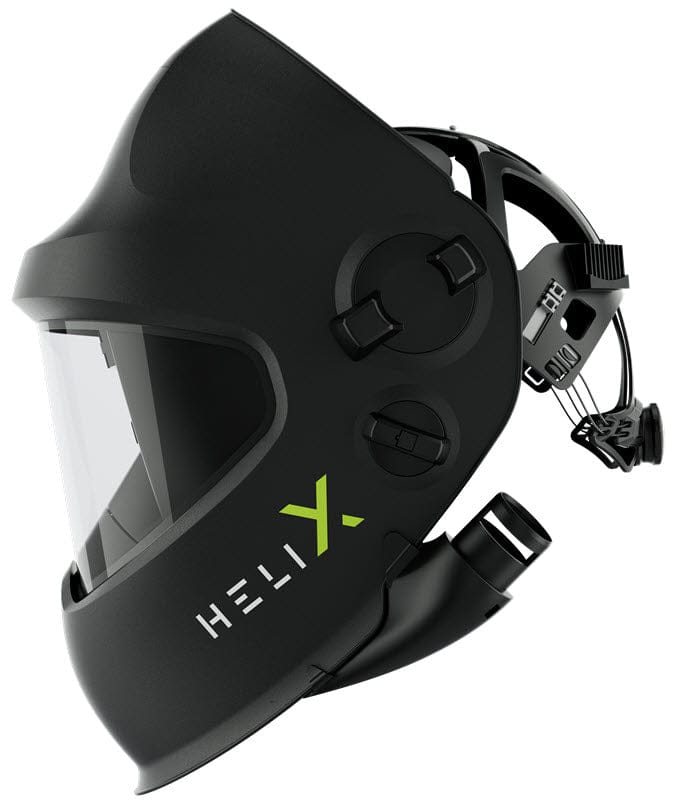

The Optrel® Helix Pure Air Quattro auto-darkening welding hood has a perfect 1/1/1/1 optical rating and features a slide-up lens cartridge. The Helix Quattro provides up to 6X the viewing area of a standard 2" X 4" auto-dark welding lens. When you're done welding, the Helix lens slides up and out of the way, on the inside of the helmet, to give you a clear, unobstructed view of your work. A large, single knob on the outside of the welding hood allows you to quickly and easily slide the auto-darkening lens up for grinding and other tasks. Slide the lens back down into place when you're ready to weld again.
The Helix Quattro auto-darkening filter has advanced features like SHADETRONIC®, which automatically adjusts the shade level based on the brightness of the arc and True Color, which allows for realistic color perception in light or dark states. It has a built-in rechargeable battery that does not need replacing. The battery is charged through arc light or when manual charging is necessary, a micro USB charging port. It comes complete with micro USB cable, helmet bag and Oprel's 2+1 warranty.
The Helix Quattro also comes with Optrel's revolutionary IsoFit® headgear. The IsoFit is the only welding headgear in the world that wraps the entire crown of the head with multiple touch points to provide a custom fit like never before. Independent "three dimensional" size, width and height adjustments ensure all day comfort with a secure hold.
Features
Slide-Up ADF Cartridge
Helix Quattro auto-darkening lens slides up and out of the way, on the inside of the helmet. Slide up for grinding and other tasks. Slide down when you're ready to weld. One large, single knob controls the lens position.
PANORAMIC FIELD OF VISION
The Helix Quattro offers a 6 times larger field of vision than standard welding helmets and is still a lightweight at only 21.9 ounces.
Perfect 1/1/1/1 Optical Rating
Optical class: 1
Stray light class: 1
Homogeneity class: 1
Angular dependence class: 1
SHADETRONIC®
Detection of the arc brightness and fully automated shade level adjustment from 4 to 12. Adjusts automatically to the changing light conditions of the current welding method. A sophisticated SHADETRONIC® sensor continuously measures the light intensity of the welding arc and regulates the glare protection progressively and fully automatically.
FADETRONIC
Patented Optrel FadeTronic technology gradually lightens the auto darkening filter after the welding arc is extinguished. The unpleasant afterglow is faded out especially for high amperage applications. Eye fatigue is significantly reduced, enhancing worker safety. FADETRONIC can be adjusted for a custom user experience.
TRUE COLOR
A specially developed UV/IR filter allows the realistic color perception typical of Optrel®, bringing color to the welder's world. TRUE COLOR passes more colors of the spectrum through compared to standard "green" spectrum welding lenses.
Optrel Re-Charge
With its rechargeable power-pack, changing batteries is no longer necessary. Thanks to the latest solar technology, a rechargeable lithium-polymer battery is recharged either by the welding light or by the ambient light. In addition, the battery can also be charged directly with any USB charger via a micro-USB interface.
5-Point Detection - intelligent sensor control with five sensors.
Sophisticated software and clever positioning of four sensors at the corners and one sensor in the upper center ensures the lens is switched on and off perfectly, even in the most difficult lighting conditions or in awkward positions.
IsoFit® Headgear
Sets a new standard of wearing comfort. It is the only product worldwide that can be adjusted in width, length and height i.e. three-dimensionally to any head shape, so that the helmet really fits "like a glove."
FadeTronic®
Gradually lightens lens when switching from dark (welding) to light state to ease eye fatigue.
Sensitivity Adjustment
Allows operator to change lens switching sensitivity for varying ambient light conditions or outdoor welding in sunlight.
Delay Function
Out-Of Position Welding
Is made possible with Optrel®'s unique shell design, which has no seams or edges where weld spatter can collect.
