Optrel® e3000x PAPR With Panoramaxx Quattro Welding Helmet 4550.561
Genuine Optrel® e3000x PAPR (Powered Air Purifying Respirator) with Panoramaxx Quattro welding helmet filters 99.8% of welding particulates, smoke, aerosols and dust to create a cleaner, healthier work environment under the hood. The e3000x HEPA filter carries a TH3 rating, which means you are getting the highest class of protection available in a PAPR system. The blower unit itself weighs less than 3.5 pounds and comes complete with lithium ion battery that provides up to 18 hours of operation between charges.
Certified to the highest level of respiratory protection in its class, TH3 (HEPA), the e3000X filters and removes 99.8% of harmful solid and liquid airborne particles to deliver clean, filtered breathing air. With the e3000X PAPR system, you complement your optrel PAPR welding helmet with a respiratory protection system, which makes no compromises in matters of safety, health and comfort. Compared to the best in class filter mask (class FFP3), this increases the safety of the user by a factor of ten or even by a factor of 40 when using FFP2 masks.

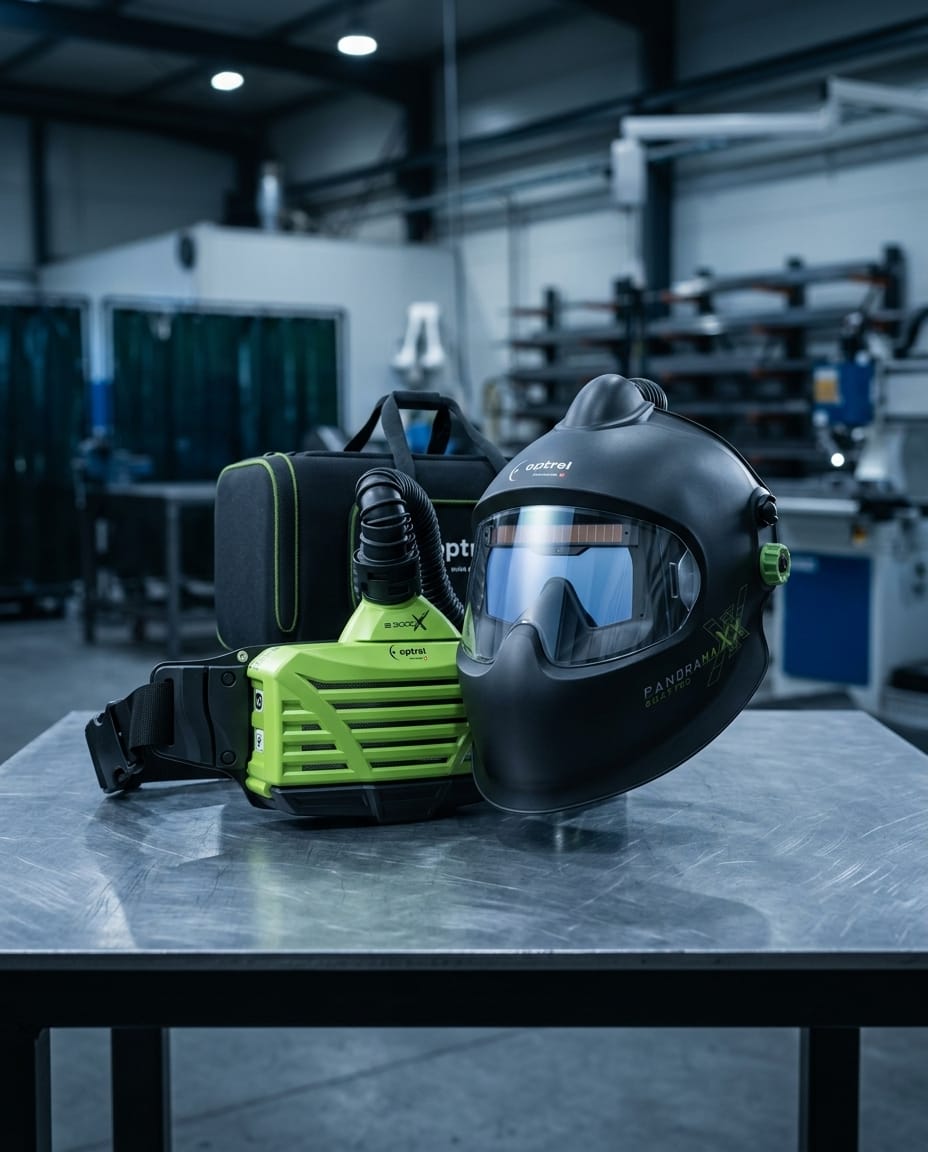

Complete system comes with e3000x blower motor with hose, TH3 HEPA filter, pre-filter, spark arrestor, battery with charger, belt, and Panoramaxx Quattro welding helmet with face seal.
Features
NIOSH approved
The highest class of protection (TH3/HEPA) from respirable particles (smoke, aerosol, and dust), including Hexavalent Chromium, most commonly present during welding operations.
Up to 18 hours of operation with included lithium ion battery.
Breathing air becomes cleaner by a factor of up to 500.
Even air distribution in the fresh air helmet.
Automatic air flow control.
Additional cooling effect for keeping a cool head about you.
The Optrel® Panoramaxx Quattro auto-darkening welding hood, with perfect 1/1/1/1 optical clarity rating, provides up to 6X the viewing area of a standard 2" X 4" auto-dark welding lens. The key to this revolutionary technology is the size and shape of the ADF, coupled with the unique Panoramaxx shell design, which allows the welding lens to be positioned closer to your face. The Panoramaxx also has advanced features like SHADETRONIC®, which automatically adjusts the shade level based on the brightness of the arc and True Color, which allows for realistic color perception in light or dark states.
The Panoramaxx Quattro has a shade 4 light state and a built-in rechargeable battery that does not need replacing. The battery is charged through arc light or when manual charging is necessary, a micro USB charging port. It comes complete with micro USB cable and Oprel's 2+1 warranty.
Features
PANORAMIC FIELD OF VISION
The Panoramaxx offers a 6 times larger field of vision than standard welding helmets and is still a lightweight at only 20.3 ounces.
1/1/1/1 Optical Classification
Provides the clearest view of the weld puddle of any welding lens in the world.
SHADETRONIC®
Detection of the arc brightness and fully automated shade level adjustment from 4 to 13. Adjusts automatically to the changing light conditions of the current welding method. A sophisticated SHADETRONIC® sensor continuously measures the light intensity of the welding arc and regulates the glare protection progressively and fully automatically.
FADETRONIC
Patented Optrel FadeTronic technology gradually lightens the auto darkening filter after the welding arc is extinguished. The unpleasant afterglow is faded out especially for high amperage applications. Eye fatigue is significantly reduced, enhancing worker safety. FADETRONIC can be adjusted for a custom user experience.
TRUE COLOR
A specially developed UV/IR filter allows the realistic color perception typical of Optrel®, bringing color to the welder's world. TRUE COLOR passes more colors of the spectrum through compared to standard "green" spectrum welding lenses.
Optrel Re-Charge
With its rechargeable power-pack, changing batteries is no longer necessary. Thanks to the latest solar technology, a rechargeable lithium-polymer battery is recharged either by the welding light or by the ambient light. In addition, the battery can also be charged directly with any USB charger via a micro-USB interface.
5-Point Detection - intelligent sensor control with five sensors.
Sophisticated software and clever positioning of four sensors at the corners and one sensor in the upper center ensures the lens is switched on and off perfectly, even in the most difficult lighting conditions or in awkward positions.
FadeTronic®
Gradually lightens lens when switching from dark (welding) to light state to ease eye fatigue.
Sensitivity Adjustment
Allows operator to change lens switching sensitivity for varying ambient light conditions or outdoor welding in sunlight.
Grinding Mode
External grind control allows user to switch between welding mode and shade 4 grinding mode quickly and easily.
Delay Function
Out-Of Position Welding
Is made possible with Optrel®'s unique shell design, which has no seams or edges where weld spatter can collect.
