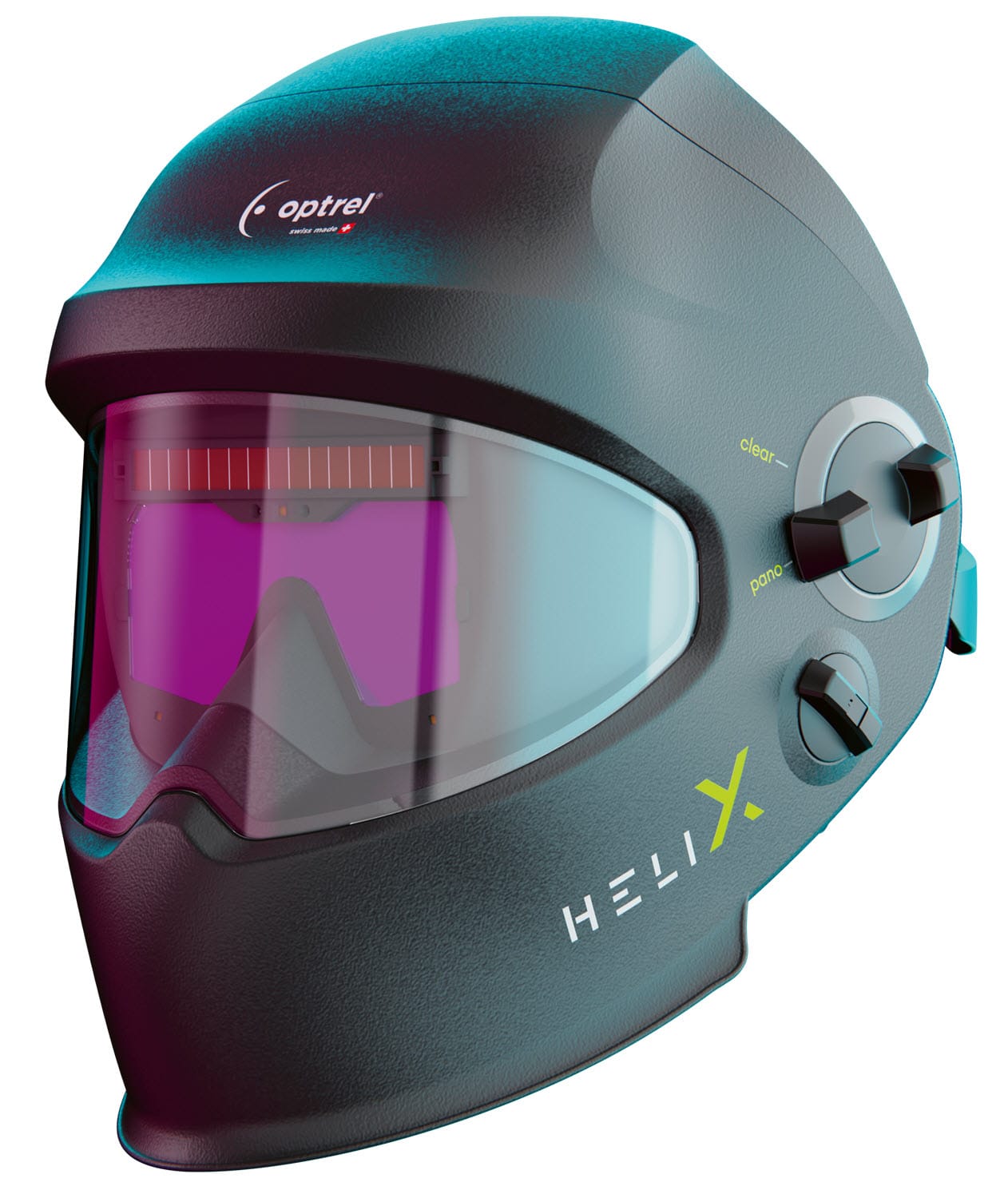

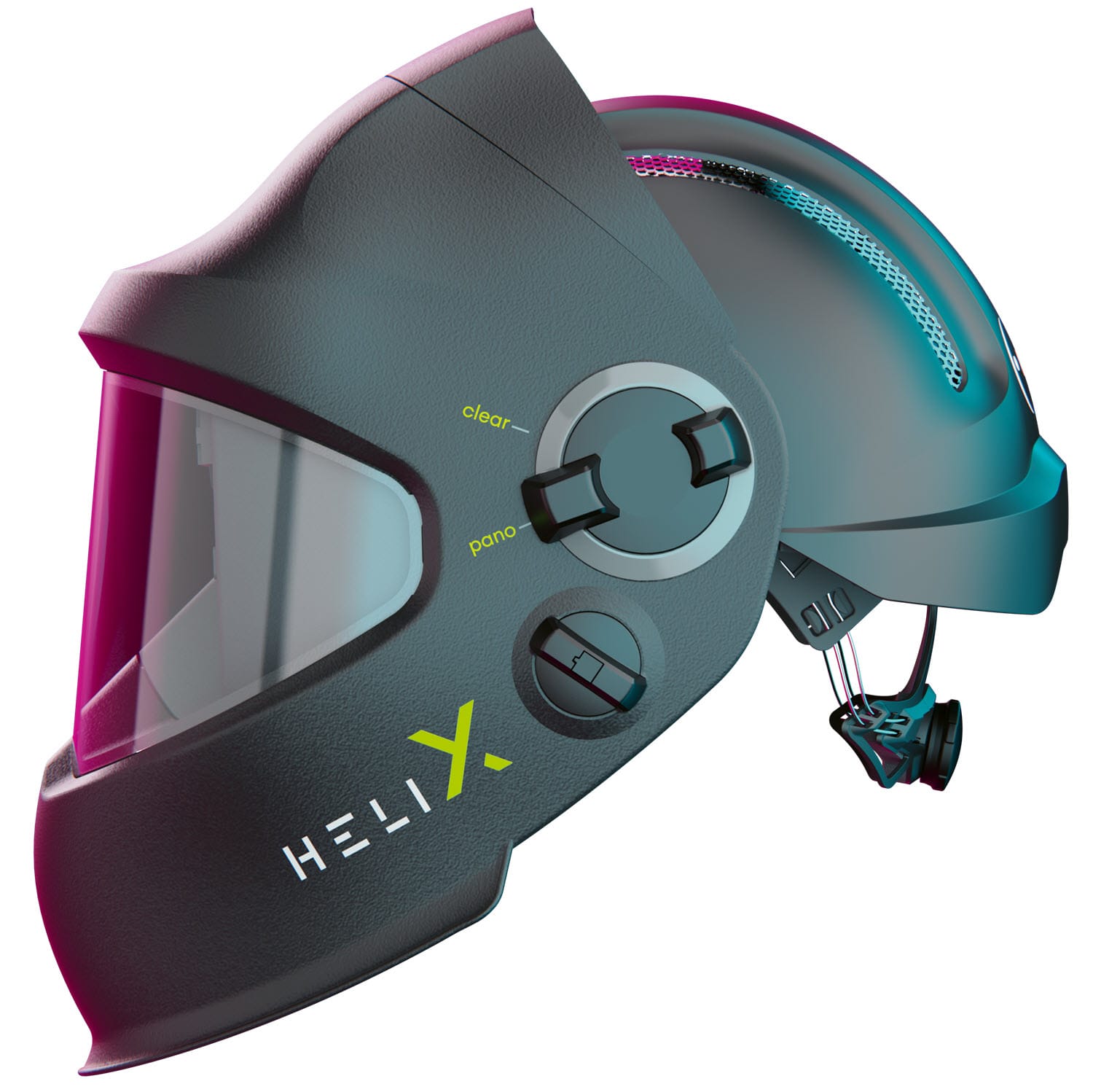

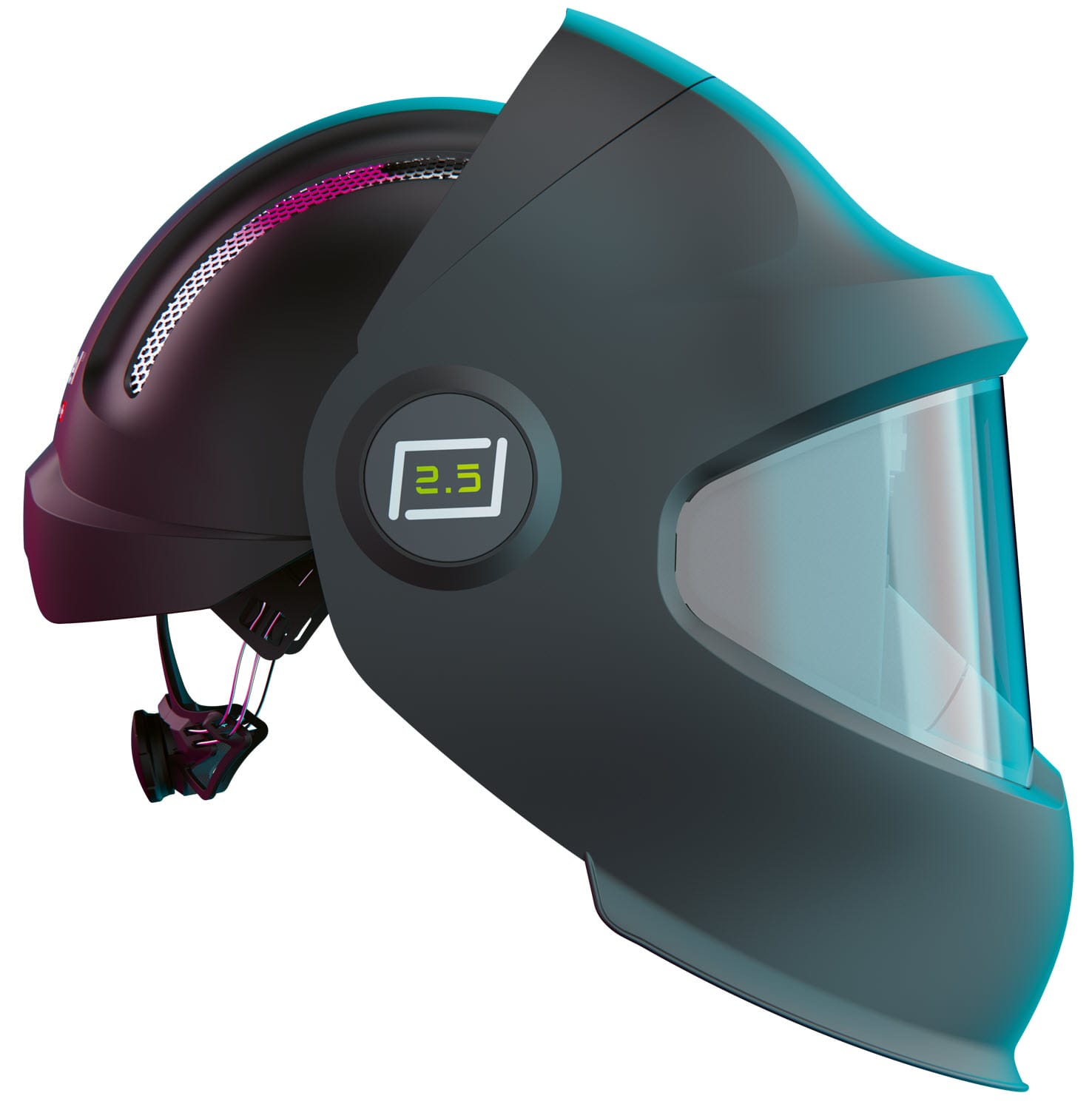

Optrel® Helix 2.5 Welding Helmet with Slide-Up Lens & Integrated Hard Hat 1050.000
The Optrel® Helix 2.5 auto-darkening welding hood has a bright shade 2.5 light state and features a slide-up lens cartridge, plus an integrated, removable hard hat. The Helix 2.5 provides up to 6X the viewing area of a standard 2" X 4" auto-dark welding lens. When you're done welding, the Helix lens slides up and out of the way,
on the inside of the helmet, to give you a clear, unobstructed view of your work. A large, single knob on the outside of the welding hood allows you to quickly and easily slide the auto-darkening lens up for grinding and other tasks. Slide the lens back down into place when you're ready to weld again.
The Helix 2.5 auto-darkening filter has advanced features like SHADETRONIC®, which automatically adjusts the shade level based on the brightness of the arc and True Color, which allows for realistic color perception in light or dark states. It has a built-in rechargeable battery that does not need replacing. The battery is charged through arc light or when manual charging is necessary, a micro USB charging port. It comes complete with micro USB cable, helmet bag and Oprel's 2+1 warranty.
The Helix 2.5 also comes with Optrel's revolutionary IsoFit® headgear AND integrated hard hat. The IsoFit is the only welding headgear in the world that wraps the entire crown of the head with multiple touch points to provide a custom fit like never before. Independent "three dimensional" size, width and height adjustments ensure all day comfort with a secure hold. The IsoFit integrated hard hat provides impact protection against overhead hazards. The hard hat shell can be removed from the headgear when not in use.
Features
Slide-Up ADF Cartridge
Helix 2.5 auto-darkening lens slides up and out of the way, on the inside of the helmet. Slide up for grinding and other tasks. Slide down when you're ready to weld. One large, single knob controls the lens position.
Shade 2.5 Light State
Provides bright, clear views of the workpiece before and after welding, and while in grind mode
PANORAMIC FIELD OF VISION
The Helix 2.5 offers a 6 times larger field of vision than standard welding helmets and is still a lightweight at only 21.9 ounces.
1/1/1/2 Optical Rating
Optical class: 1
Stray light class: 1
Homogeneity class: 1
Angular dependence class: 2
SHADETRONIC®
Detection of the arc brightness and fully automated shade level adjustment from 5 to 12. Adjusts automatically to the changing light conditions of the current welding method. A sophisticated SHADETRONIC® sensor continuously measures the light intensity of the welding arc and regulates the glare protection progressively and fully automatically.
TRUE COLOR
A specially developed UV/IR filter allows the realistic color perception typical of Optrel®, bringing color to the welder's world. TRUE COLOR passes more colors of the spectrum through compared to standard "green" spectrum welding lenses.
Optrel Re-Charge
With its rechargeable power-pack, changing batteries is no longer necessary. Thanks to the latest solar technology, a rechargeable lithium-polymer battery is recharged either by the welding light or by the ambient light. In addition, the battery can also be charged directly with any USB charger via a micro-USB interface.
5-Point Detection - intelligent sensor control with five sensors.
Sophisticated software and clever positioning of four sensors at the corners and one sensor in the upper center ensures the lens is switched on and off perfectly, even in the most difficult lighting conditions or in awkward positions.
IsoFit® Headgear with Integrated Hard Hat
Sets a new standard of wearing comfort. It is the only product worldwide that can be adjusted in width, length and height i.e. three-dimensionally to any head shape, so that the helmet really fits "like a glove." Hard hat shell can be removed when not in use.
FadeTronic®
Gradually lightens lens when switching from dark (welding) to light state to ease eye fatigue.
Sensitivity Adjustment
Allows operator to change lens switching sensitivity for varying ambient light conditions or outdoor welding in sunlight.
Out-Of Position Welding
Is possible with Optrel®'s unique shell design, which has no seams or edges where weld spatter can collect.
Delay Function

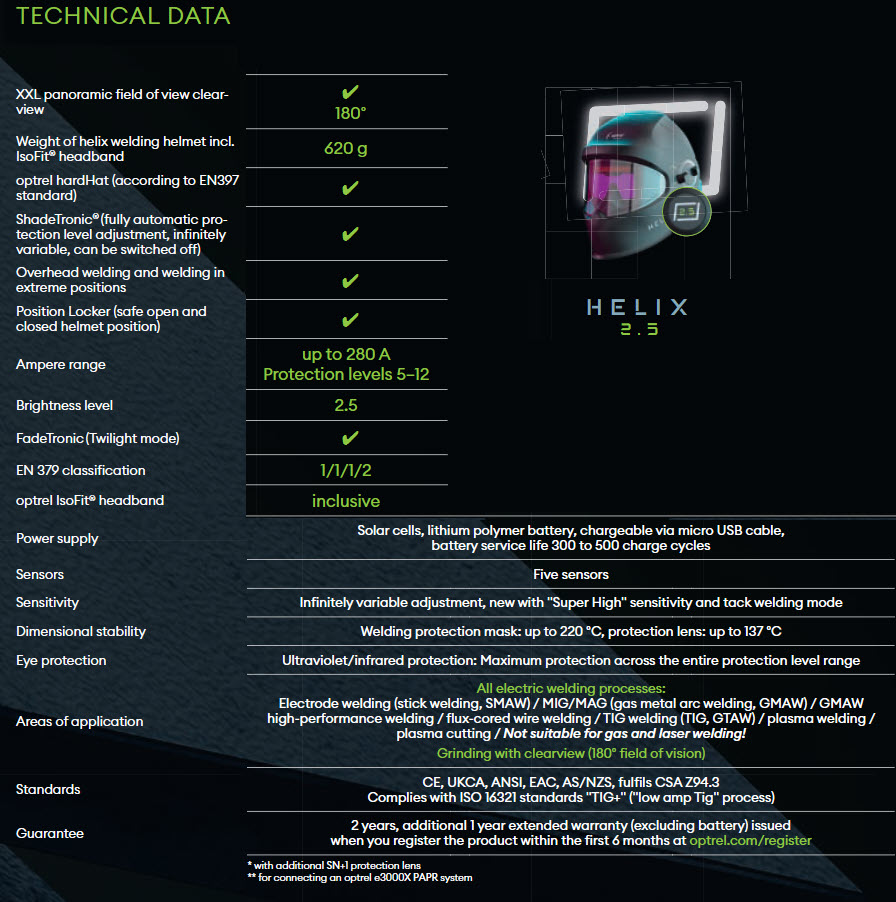

Specs
Comes complete with
IsoFit® headgear with integrated, removable hard hat
Micro USB charging cable
Helmet bag

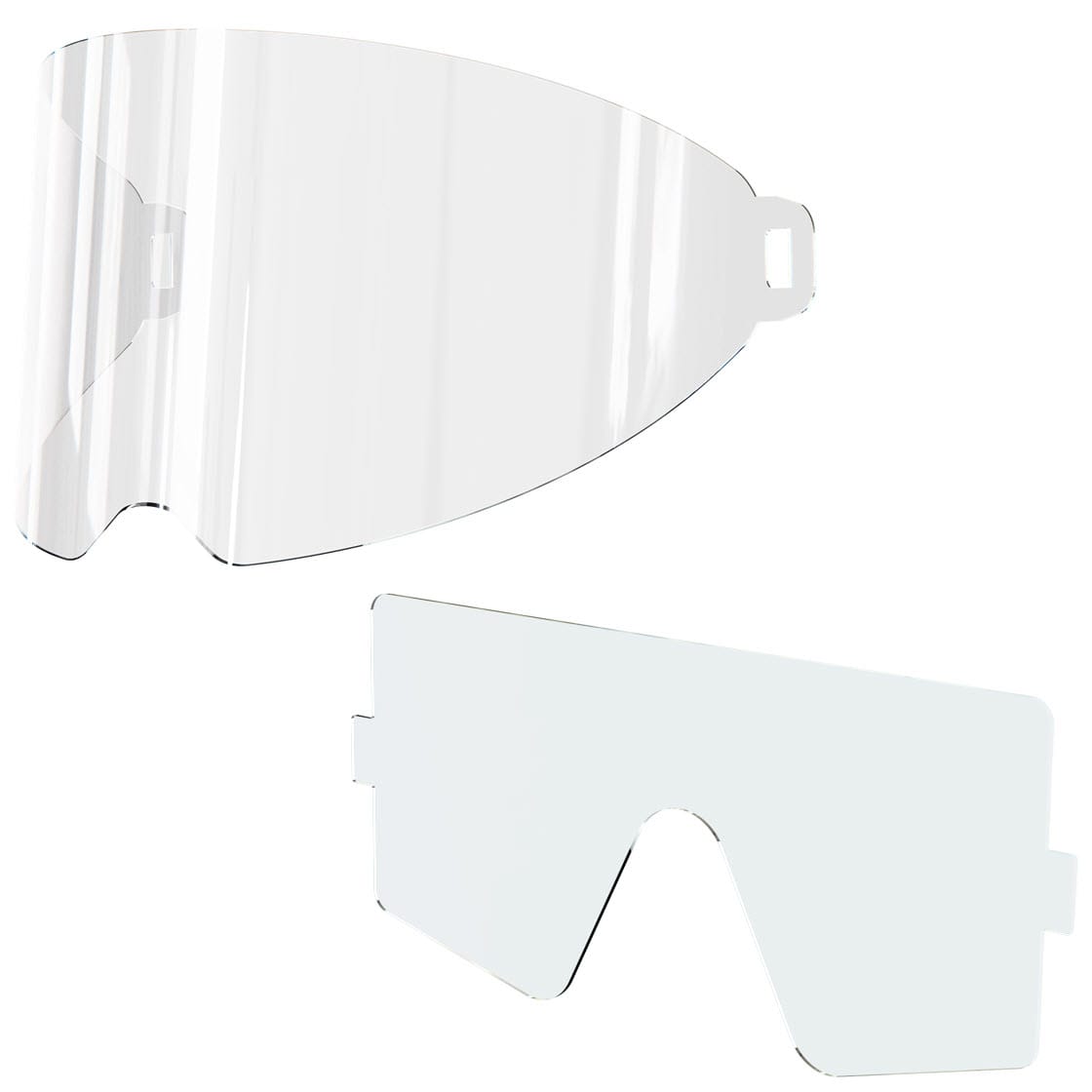

1 extra outside cover plate
2+1 warranty
