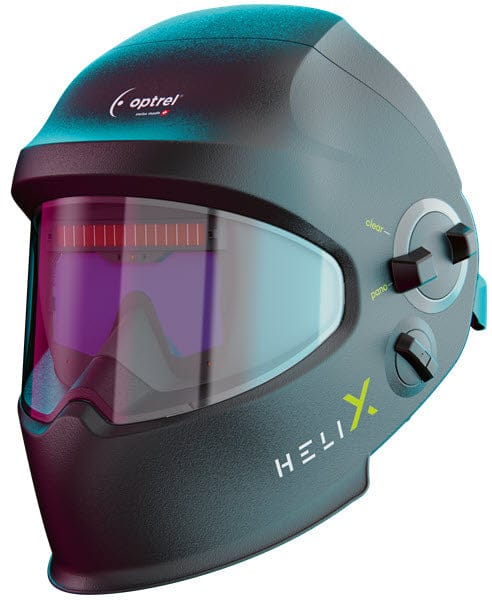

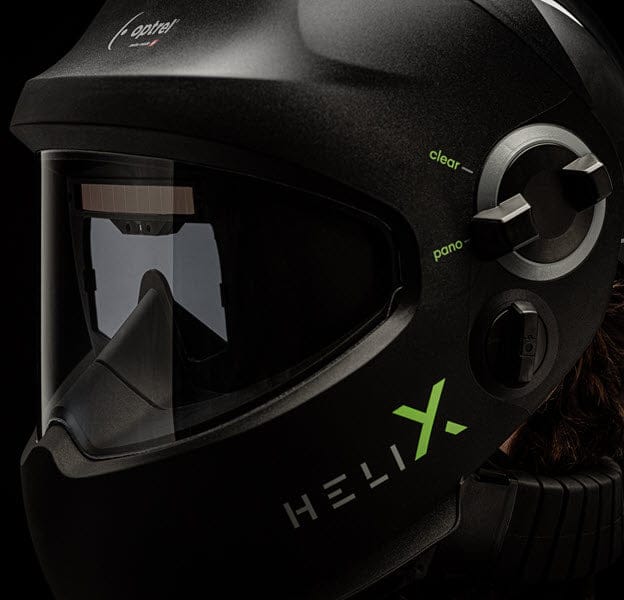

Optrel® Helix Quattro Welding Helmet with Slide-Up Lens & Integrated Hard Hat 1050.100
The Optrel® Helix Quattro auto-darkening welding hood has a perfect 1/1/1/1 optical rating and features a slide-up lens cartridge, plus an integrated, removable hard hat. The Helix Quattro provides up to 6X the viewing area of a standard 2" X 4" auto-dark welding lens. When you're done welding, the Helix lens slides up and out of the way,
on the inside of the helmet, to give you a clear, unobstructed view of your work. A large, single knob on the outside of the welding hood allows you to quickly and easily slide the auto-darkening lens up for grinding and other tasks. Slide the lens back down into place when you're ready to weld again.
The Helix Quattro auto-darkening filter has advanced features like SHADETRONIC®, which automatically adjusts the shade level based on the brightness of the arc and True Color, which allows for realistic color perception in light or dark states. It has a built-in rechargeable battery that does not need replacing. The battery is charged through arc light or when manual charging is necessary, a micro USB charging port. It comes complete with micro USB cable, helmet bag and Oprel's 2+1 warranty.
The Helix Quattro also comes with Optrel's revolutionary IsoFit® headgear AND integrated hard hat. The IsoFit is the only welding headgear in the world that wraps the entire crown of the head with multiple touch points to provide a custom fit like never before. Independent "three dimensional" size, width and height adjustments ensure all day comfort with a secure hold. The IsoFit integrated hard hat provides impact protection against overhead hazards. The hard hat shell can be removed from the headgear when not in use.
Features
Slide-Up ADF Cartridge - Helix Quattro auto-darkening lens slides up and out of the way, on the inside of the helmet. Slide up for grinding and other tasks. Slide down when you're ready to weld. One large, single knob controls the lens position.
PANORAMIC FIELD OF VISION - The
Panoramaxx CLT offers a 6 times larger field
of vision than standard welding helmets ? and
is still a lightweight at only 21.9 ounces.
Perfect 1/1/1/1 Optical Rating
Optical class: 1
Stray light class: 1
Homogeneity class: 1
Angular dependence class: 1
SHADETRONIC® - Detection of the arc brightness and fully automated shade level adjustment from 4 to 12. Adjusts automatically to the changing light
conditions of the current welding method. A sophisticated SHADETRONIC® sensor
continuously measures the light intensity of
the welding arc and regulates the glare protection
progressively and fully automatically.
FADETRONIC - Patented Optrel FadeTronic technology gradually lightens the auto darkening filter after the welding arc is extinguished. The unpleasant afterglow is faded out ? especially for high amperage applications. Eye fatigue is
significantly reduced, enhancing worker safety. FADETRONIC can be adjusted for a custom user experience.
TRUE COLOR - A specially developed UV/IR filter allows the realistic color perception typical of
Optrel®, bringing color to the welder?s
world. TRUE COLOR passes more colors of the spectrum through compared to standard "green" spectrum welding lenses.
Optrel Re-Charge - With its rechargeable
power-pack, changing
batteries is no longer
necessary. Thanks to the latest solar technology,
a rechargeable lithium-polymer battery is
recharged either by the welding light or by the
ambient light. In addition, the battery can also
be charged directly with any USB charger via
a micro-USB interface.
5-Point Detection - intelligent sensor
control with five sensors. Sophisticated software
and clever positioning of four sensors at
the corners and one sensor in the upper center
ensures the lens is switched on and
off perfectly, even in the most difficult lighting
conditions or in awkward positions.
IsoFit® Headgear with Integrated Hard Hat sets a new standard of wearing comfort. It is the only product worldwide
that can be adjusted in width, length and height ? i.e. three-dimensionally ? to any head shape, so that the
helmet really fits "like a glove." Hard hat shell can be removed when not in use.
FadeTronic® - gradually lightens lens when switching from dark (welding) to light state to ease eye fatigue.
Sensitivity Adjustment - allows operator to change lens switching sensitivity for varying ambient light conditions or outdoor welding in sunlight.
Delay Function
Out-Of Position Welding is possible with Optrel®'s unique shell design, which has no seams or edges where weld spatter can collect.
Specs
Comes complete with
IsoFit® headgear with integrated, removable hard hat
Micro USB charging cable
Helmet bag
1 extra outside cover plate
2+1 warranty
FREE Optrel® Duffel Bag ($40.06 MSRP Value) & 5 Outside Cover Plates ($42.00 MSRP Value)
Get a FREE Optrel® Duffel Bag ($40.06 MSRP Value) and Five (5) Replacement Outside Cover Plates ($42.00 MSRP Value) with the purchase of this Optrel® Helix welding helmet. Free items ship with order. Expires 6/30/23. (No substitutions allowed.)
Genuine Optrel® welding helmet duffel bag stores and protects your Optrel® welding helmet, accessories or Optrel® PAPR (Powered Air Purifying Respirator). Duffel bag is made from sturdy black nylon with green trim. Generous inner compartment has snap out partition to help keep your welding helmet separated from other welding gear. A large single outer pocket has zipper closure and is excellent for storing tools. Duffel bag has two nylon carry handles and one nylon shoulder strap.
Suitable for use with
All Optrel welding helmet models.
Optrel® Helix Front Cover Lens 5000.580
Pkg. of 5 - Genuine Optrel® clear front cover lens for your Optrel® Helix welding helmet.
