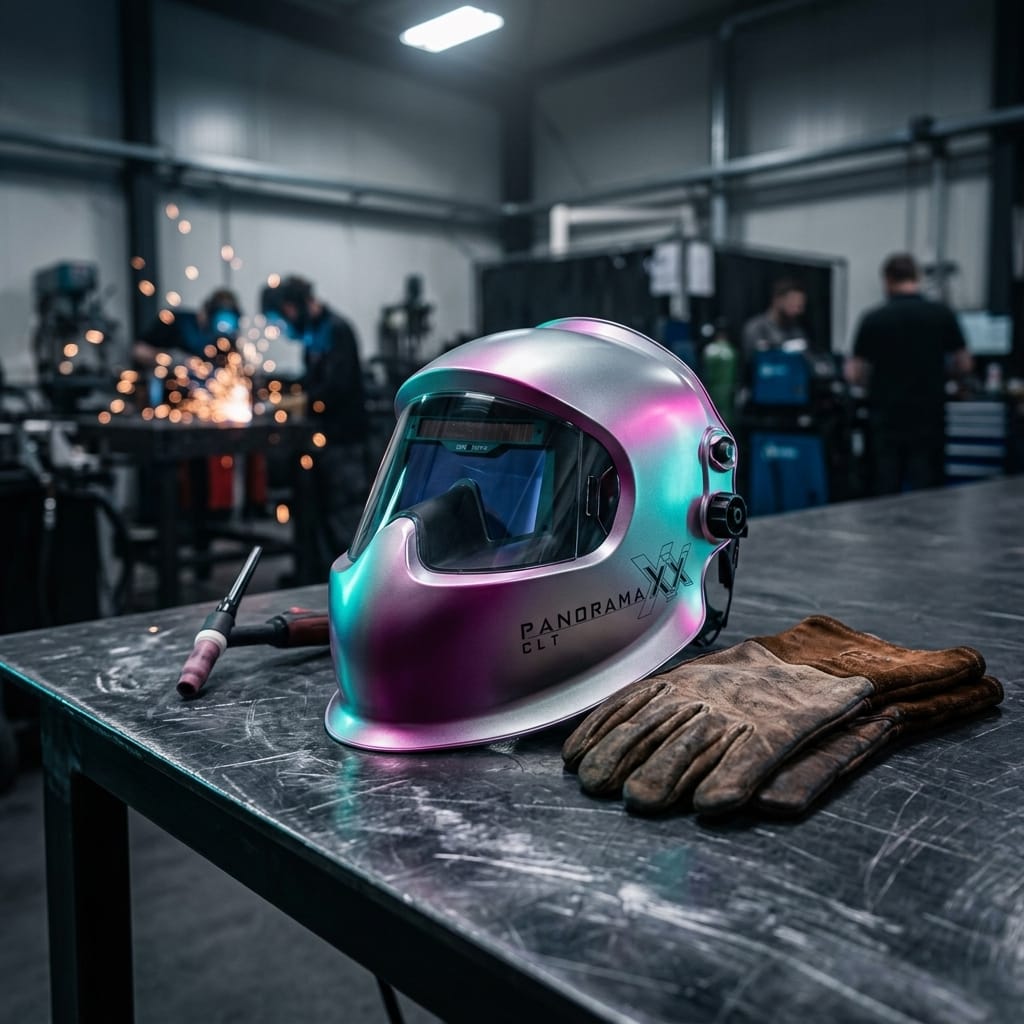

Optrel® Panoramaxx CLT 2.0 (Crystal Lens Technology) Silver Welding Helmet 1010.201
The Optrel® Panoramaxx CLT Silver auto-darkening welding hood features Crystal shade 2.0 light state that is unmatched in the world for color and clarity and provides up to 6X the viewing area of a standard 2" X 4" auto-dark welding lens. The key to this revolutionary technology is the size and shape of the ADF, coupled with the unique Panoramaxx shell design, which allows the welding lens to be positioned closer to your face. The Panoramaxx also has advanced features like SHADETRONIC®, which automatically adjusts the shade level based on the brightness of the arc and True Color, which allows for realistic color perception in light or dark states.
All Panoramaxx welding helmets now come with the revolutionary IsoFit® headgear. It is the only welding headgear in the world that wraps the entire crown of the head with multiple touch points to provide a custom fit like never before. Independent "three dimensional" size, width and height adjustments ensure all day comfort with a secure hold.
The Panoramaxx CLT has a built-in rechargeable battery that does not need replacing. The battery is charged through arc light or when manual charging is necessary, a micro USB charging port. It comes complete with micro USB cable, helmet bag and Oprel's 2+1 warranty.
Features
PANORAMIC FIELD OF VISION - The
Panoramaxx CLT offers a 6 times larger field
of vision than standard welding helmets ? and
is still a lightweight at only 21.5 ounces.
CRYSTAL LENS TECHNOLOGY 2.0 - Shade 2.0 light state provides the brightest view of your working environment available anywhere. The natural color and clear optics supplied by CLT increases both safety and efficiency in the workplace.
SHADETRONIC® - Detection of the arc brightness and fully automated shade level adjustment from 4 to 12. Adjusts automatically to the changing light
conditions of the current welding method. A sophisticated SHADETRONIC® sensor
continuously measures the light intensity of
the welding arc and regulates the glare protection
progressively and fully automatically.
FADETRONIC - Patented Optrel FadeTronic technology gradually lightens the auto darkening filter after the welding arc is extinguished. The unpleasant afterglow is faded out ? especially for high amperage applications. Eye fatigue is
significantly reduced, enhancing worker safety. FADETRONIC can be adjusted for a custom user experience.
TRUE COLOR - A specially developed UV/IR filter allows the realistic color perception typical of
Optrel®, bringing color to the welder?s
world. TRUE COLOR passes more colors of the spectrum through compared to standard "green" spectrum welding lenses.

Optrel Re-Charge - With its rechargeable
power-pack, changing
batteries is no longer
necessary. Thanks to the latest solar technology,
a rechargeable lithium-polymer battery is
recharged either by the welding light or by the
ambient light. In addition, the battery can also
be charged directly with any USB charger via
a micro-USB interface.
5-Point Detection - intelligent sensor
control with five sensors. Sophisticated software
and clever positioning of four sensors at
the corners and one sensor in the upper center
ensures the lens is switched on and
off perfectly, even in the most difficult lighting
conditions or in awkward positions.
IsoFit® headgear sets a new standard of wearing comfort. It is the only product worldwide
that can be adjusted in width, length and height ? i.e. three-dimensionally ? to any head shape, so that the
helmet really fits "like a glove."

FadeTronic® - gradually lightens lens when switching from dark (welding) to light state to ease eye fatigue.
Sensitivity Adjustment - allows operator to change lens switching sensitivity for varying ambient light conditions or outdoor welding in sunlight.
Grinding Mode - external grind control allows user to switch between welding mode and shade 2 grinding mode quickly and easily.
Delay Function
Out-Of Position Welding is possible with Optrel®'s unique shell design, which has no seams or edges where weld spatter can collect.

Specs


Comes complete with
Micro USB charging cable
Helmet bag
1 extra outside cover plate
2+1 warranty
FREE Optrel® Duffel Bag ($40.06 MSRP Value) & 5 Outside Cover Plates ($39.66 MSRP Value)

Get a FREE Optrel® Duffel Bag ($40.06 MSRP Value) and Five (5) Replacement Outside Cover Plates ($39.66 MSRP Value) with the purchase of an Optrel® Panoramaxx welding helmet. Free items ship with order. Expires 6/30/23. (No substitutions allowed.)
Genuine Optrel® welding helmet duffel bag stores and protects your Optrel® welding helmet, accessories or Optrel® PAPR (Powered Air Purifying Respirator). Duffel bag is made from sturdy black nylon with green trim. Generous inner compartment has snap out partition to help keep your welding helmet separated from other welding gear. A large single outer pocket has zipper closure and is excellent for storing tools. Duffel bag has two nylon carry handles and one nylon shoulder strap.
Suitable for use with
All Optrel welding helmet models.
Optrel® Panoramaxx Front Cover Lens 5000.270
Pkg. of 5 - Genuine Optrel® clear front cover lens for your Optrel® Panoramaxx welding helmet.
