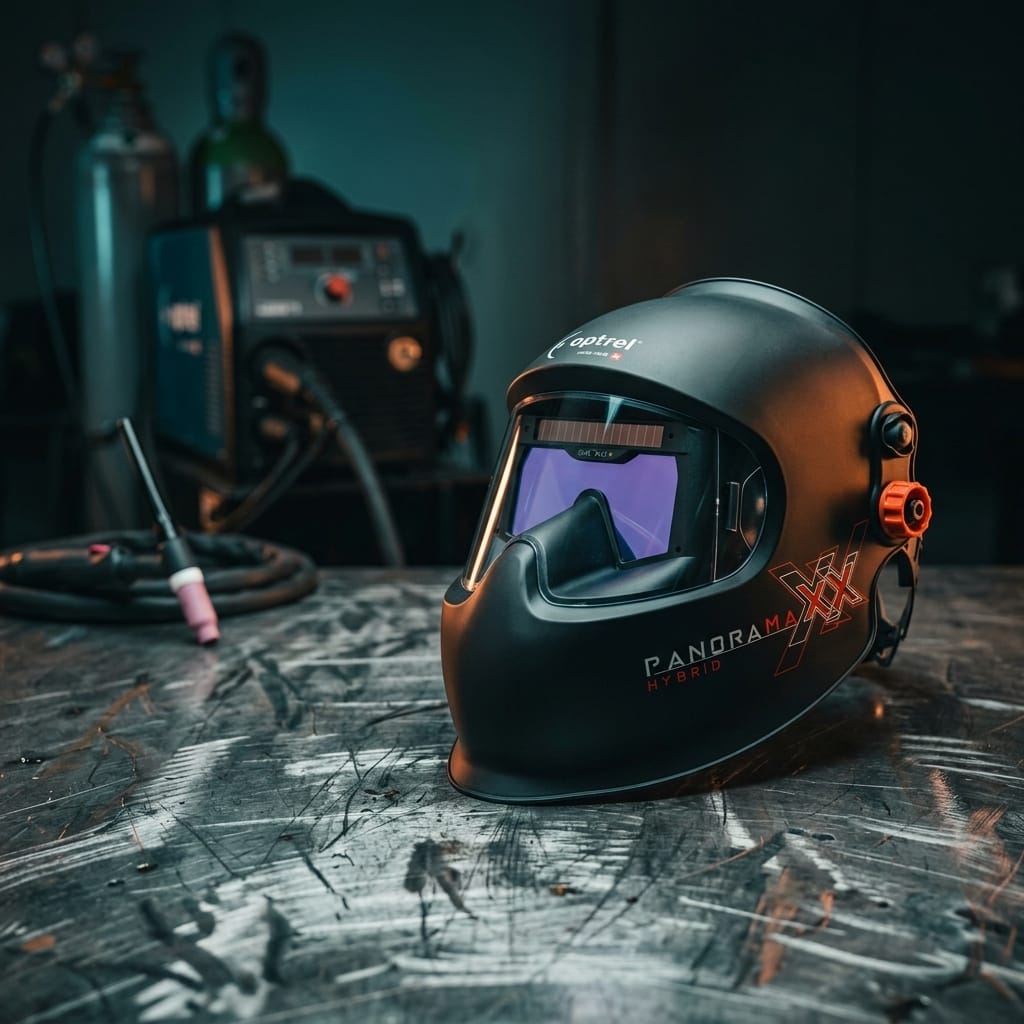

Optrel® Panoramaxx Hybrid Laser Welding/Arc Welding Helmet 1010.301
Genuine Optrel® Panoramaxx Hybrid is a combination laser welding and arc welding helmet that provides superior optics and protection - whatever your welding application. For laser welding, the Panoramaxx Hybrid is ideal for handheld welding lasers operating within the 1000 to 1100 nm range. Optrel's patent-pending enclosed inner protection frame shields the eyes from damaging invisible direct and reflected laser light, that is associated with Class 4 laser welding. For arc welding, the Panoramaxx Hybrid's auto-darkening lens has variable shade 5-13 cut/welding modes. It also has advanced features like SHADETRONIC®, which automatically adjusts the shade level based on the brightness of the arc; and True Color, which allows for realistic color perception in light or dark states.
The Panoramaxx Hybrid welding hood provides up to 6X the viewing area of a standard 2" X 4" welding lens. The key to this revolutionary technology is the size and shape of the lens, coupled with the unique Panoramaxx shell design, which allows the welding lens to be positioned closer to your face. All Panoramaxx welding helmets also come with the revolutionary IsoFit® headgear. The IsoFit is the only welding headgear in the world that wraps the entire crown of the head with multiple touch points, to provide a custom fit like never before. Independent "three dimensional" size, width and height adjustments ensure all day comfort with a secure hold.
The Panoramaxx Hybrid has a shade 3 light state and a built-in rechargeable battery that does not need replacing. The battery is charged through arc light, or when manual charging is necessary, a micro USB charging port. It comes complete with micro USB cable, helmet bag and Oprel's 2+1 warranty.
Features
2 in 1 laser welding & arc welding protection
ISO certification for both laser (1000-1100 nm range) and arc welding (shade 5-13) protection.
Integrated laser safety glasses
Patent-pending enclosed inner-frame shields the eyes from damaging reflected laser light.
PANORAMIC FIELD OF VISIONThe Panoramaxx offers a 6 times larger field of vision than standard welding helmets and is still a lightweight at only 21.3 ounces.
SHADETRONIC®
Detection of the arc brightness and fully automated shade level adjustment from 5 to 13. Adjusts automatically to the changing light conditions of the current welding method. A sophisticated SHADETRONIC® sensor continuously measures the light intensity of the welding arc and regulates the glare protection progressively and fully automatically.
FADETRONIC
Patented Optrel FadeTronic technology gradually lightens the auto darkening filter after the welding arc is extinguished. The unpleasant afterglow is faded out especially for high amperage applications. Eye fatigue is significantly reduced, enhancing worker safety. FADETRONIC can be adjusted for a custom user experience.
TRUE COLOR
A specially developed UV/IR filter allows the realistic color perception typical of Optrel®, bringing color to the welder's world. TRUE COLOR passes more colors of the spectrum through compared to standard "green" spectrum welding lenses.
Optrel Re-Charge
With its rechargeable power-pack, changing batteries is no longer necessary. Thanks to the latest solar technology, a rechargeable lithium-polymer battery is recharged either by the welding light or by the ambient light. In addition, the battery can also be charged directly with any USB charger via a micro-USB interface.
5-Point Detection
Intelligent sensor control with five sensors. Sophisticated software and clever positioning of four sensors at the corners and one sensor in the upper center ensures the lens is switched on and off perfectly, even in the most difficult lighting conditions or in awkward positions.
IsoFit® headgear
Sets a new standard of wearing comfort. It is the only product worldwide that can be adjusted in width, length and height (i.e. three-dimensionally) to any head shape, so that the helmet really fits "like a glove."
FadeTronic®
Gradually lightens lens when switching from dark (welding) to light state to ease eye fatigue.
Sensitivity Adjustment
Allows operator to change lens switching sensitivity for varying ambient light conditions or outdoor welding in sunlight.
Delay Function
Out-Of Position Welding
Is possible with Optrel®'s unique shell design, which has no seams or edges where weld spatter can collect.
Position Locker
Two-position locking function for a securely opened or closed helmet.
Comes complete with
Micro USB charging cable
Helmet bag
2+1 warranty
