Smith Oxygen Regulator 30-100-540

Smith® Oxygen Regulator 30-100-540

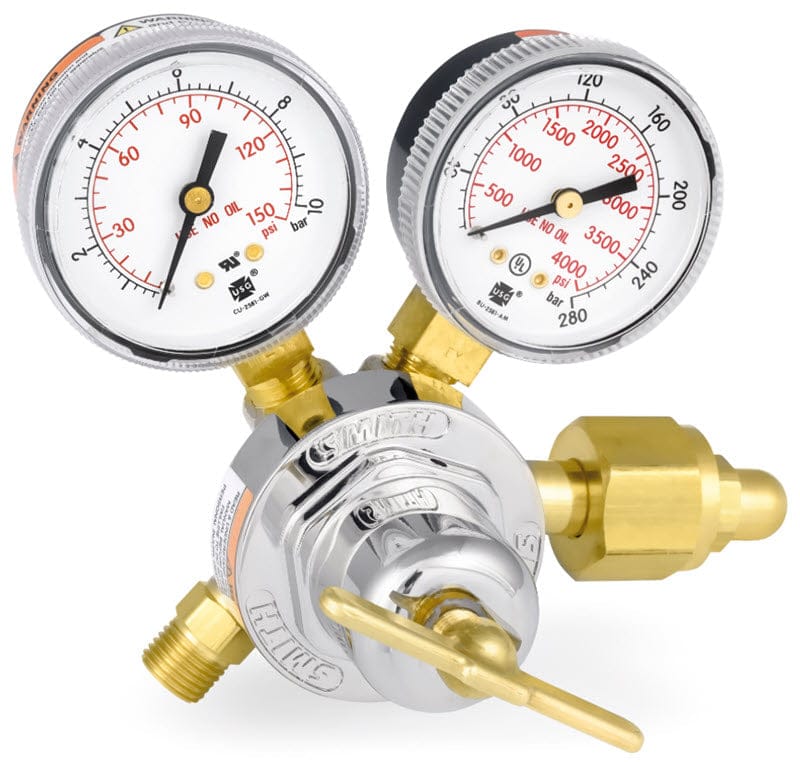

Smith® 30-100-540 Oxygen Regulator is a medium duty, single stage industrial gas regulator with 100 PSIG outlet pressure. It is built to be extremely rugged, featuring a nickel-plated bonnet, shatter resistant 2 inch gauges and Sure Seat™ filtered seat. Smith's Sure Seat™ technology extends regulator life by preventing external contaminants from reaching the pressure seat area.

The 30-100-540 comes with Smith's True Blue® 3 year warranty and is made in the USA.



Features

Sure-Seat™ filtered high-pressure seat assembly extends regulator life by preventing contamination from entering the seating area.

Neoprene Composite Diaphragm - Highly durable neoprene composite diaphragm offers precise adjustment of outlet pressure and extended service life.

Color-Coded Labels - Identifies supply performance capabilities, easy gas service identification and technical information.

Nickel-Plated Bonnet - The nickel-plated bonnet, along with brass body, protects against corrosion.

Shatter-Resistant Gauge Lenses - 2.0 inch corrosion-resistant polished brass gauges with shatter-resistant polycarbonate lenses.

External Relief Valve - Protects regulator from damage do to inadvertent high-pressure surge. Relief valve will release excessive pressure and automatically reset.
