Smith Toughcut Propane Cutting Outfit MB54A-510LP

Smith™ Toughcut™ Propane Cutting Outfit MB54A-510LP

Genuine Smith™ Toughcut™ MB54A-510LP cutting outfit is a light to medium duty oxy/fuel kit that uses propane (LP) or natural gas as the fuel gas. Smith's slip-in cutting tips with Graf-Tite&reg seal provide quick change of tips without the use of tools and superior seal for longer tip life.

The MB54A-510LP oxy/propane torch kit comes with Smith's proven in-tip gas mixing technology, which helps eliminate flash backs and increases torch life. The outfit features rugged, highly accurate 30 series regulators and comes complete with safety and operations manual.

Covered by Smith's 25-year warranty on torch handle and cutting attachment. Regulators are covered by a 3-year warranty. NOTE: Use of tips not manufactured by Smith or repairs made with other than genuine Smith parts will void the warranty.



Applications
Farm
Ranch
Hobby
Automotive
Refrigeration
Light fabrication and repair

Features

Graf-Tite soft seats
Resilient Graf-Tite seat material protects tip seating areas from nicking to maintain positive seating. Requires less replacement than metal-to-metal seat designs. Compressible soft seats are practically indestructible and withstand extremely high temperatures, resulting in longer tip life.

In-tip mix
Each tip is a precision engineered mixer for combining preheat oxygen and fuel gas to attain maximum efficiency. Adds resistance to flashback.

Slip-in tip design
Just hand tighten After the first tightening with a wrench, only hand tightening is required to seat the tip, saving time when changing tips. Quick and easy tip changes encourage use of right tip for the job.

Removable high-pressure seat
Allows cleaning from back of tip.

Three-tube construction
Gases are kept separated, eliminating mixing tube burnout. Our thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength.

Ease-on oxygen cutting valve
Allows smooth piercing and keyhole free starts and restarts.

Triple o-ring seal
Provides positive gas seal, and allows rotation.

Internal threads
Threads are protected from damage if the torch is dropped, eliminating costly torch repair, replacement or downtime.

Double-tube handle
Tube-within-a-tube design provides strength while reducing weight. Internal tube is silver brazed for extra protection, strength and leak resistance.

Adjustable valve resistance
Special PTFE packing provides a gas-tight seal while allowing the drag to be adjusted to the individual preference.

Stainless steel ball-style valves
Corrosion-resistant balls and brass seating surfaces provide gall resistance and positive, chatter-free seating.

Easy-to-read two-inch gauges
With shatter-resistant polycarbonate lens covers

Replaceable hose connections
Hose connections are easily replaced if damaged.

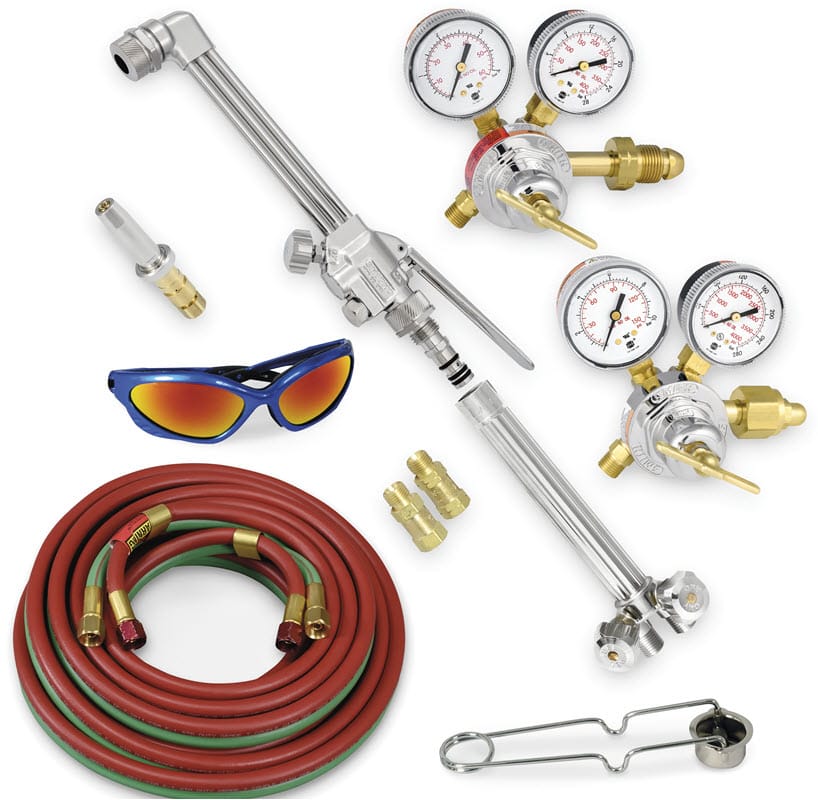

Comes complete with

Torch handle (CW5A)

Cutting Attachment (CC509P)

Oxygen Regulator (30-100-540)

LPG (Propane) Regulator (30-50-510)

Cutting Tip (MC40-1)

20-ft 1/4" Twin Hose

Friction Lighter

Safety Glasses

Regulator Mount Check Valves (H698)

Operations Manual
