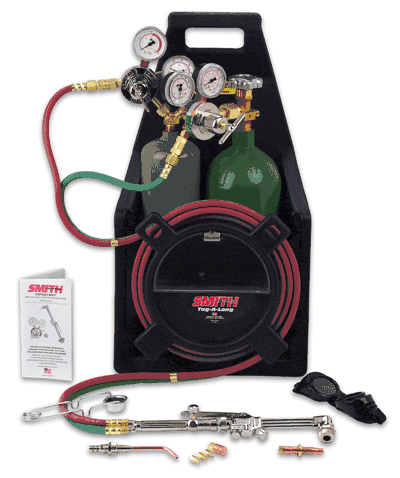

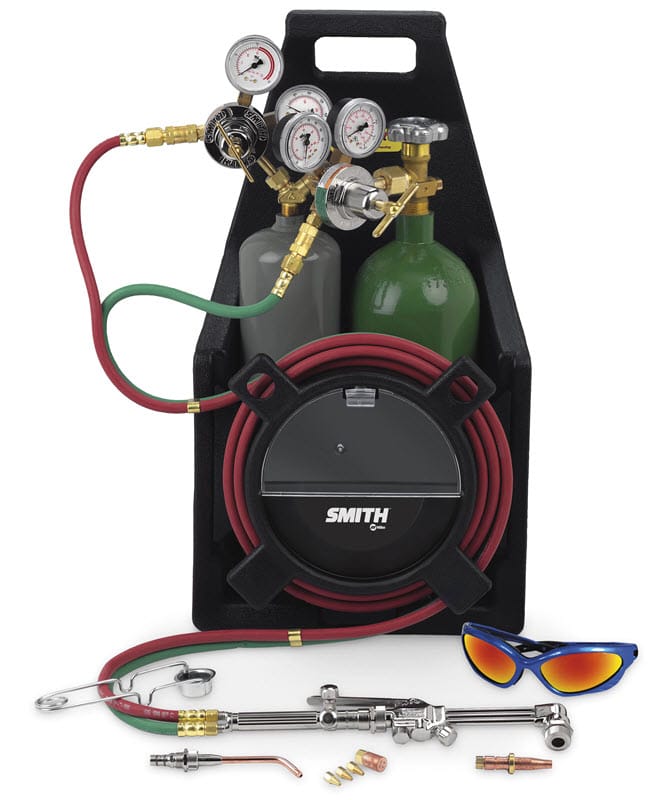

Smith™ Versa-Torch® Refrigeration and Air Conditioning Outfit VT-4T
Genuine Smith™ VT-4T Versa-Torch® is a portable, highly versatile oxy/acetylene torch outfit that is optimized for HVAC applications. The Versa-Torch features a lightweight nickel
plated torch handle and cutting attachment. A broad selection of cutting, welding and specialty attachments makes the Versa-Torch
System ideal for manufacturing, maintenance
and repair, air conditioning, refrigeration, plumbing,
metal fabrication, jewelry, metal sculpture and hundreds
of other applications. High density polyethylene carrier
is rugged and lightweight. Outfit includes complete
operation and instruction manual, and reverse flow check valves.
Covered by Smith's 25-year warranty on torch handle and cutting attachment. Regulators are covered by a 3-year warranty.
NOTE: Use of tips not manufactured by Smith or repairs made with other than genuine Smith parts will void the warranty.
Features
Three-tube construction
Keeps gases separate in the cutting
attachment until mixed at the tip for safety.
In-tip gas mixing
Ensures lowest amount of mixed gas in the system.
Sustained backfire can be isolated in the tip, helping protect the operator
and the torch.
Concave-shaped tip end
Reduces backfire and resists flameout during
accidental contact with the base metal while cutting.
External relief valve
Protects regulators from damage due to inadvertent
high-pressure surge.
Relief valve will release excessive pressure and
automatically reset.
Dual filters including Sure Seat™
Protect regulator high-pressure
seat from debris for reliable operation and long service life.
Silver-brazed torch joints
Provide strength and leak resistance.
Nickel-plated torch assembly
Provides heat protection.
Internal threads on handle
Protect threads from damage if torch
is dropped.
O-ring seals on cutting attachment and welding tip
Allow for easy
360-degree rotation to reduce operator fatigue.
Hand-tighten only to seat the tip and attachments
Saving time and
tools when changing tips.
Graf-Tite™ soft seats on tips
Compress and conform to the shape of the torch head for positive seating, eliminating leaks even when tips are
nicked.
Soft seat withstands extremely high temperature for longer tip life.
Easy-to-read two-inch gauges
With shatter-resistant polycarbonate
lens covers
Comes Complete With
AW1A Torch Handle
AC309 Cutting Attachment
MC12-00 Cutting Tips
LTI03 through LTI06 brazing tips
13716 Heating Tip (rosebud)
AT60 Mixer/Tube Assembly
30-100-540 oxygen regulator
30-15-200 CGA 200 acetylene Regulator
10 cubic foot "MC" acetylene cylinder (empty)
20 cubic foot "R" oxygen cylinder (empty)
Also includes:
lighter, goggles,twin hose, tank wrench regulator mount, check valves and operations manual.
