Smith Welding & Cutting Outfit - Heavy Duty HBA-30510

5.0
Rated 5.0 out of 5 stars
2 Reviews

Code: HBA-30510

Skip to product information
1 of 1

Cyberweld Price $635.60
Cyberweld Price $635.60
Mfg Industrial Price: $1,350.58
(You Save $714.98)
This item qualifies for free standard shipping.

Acetylene Inlet:CGA 510 (Male)

-
+
FAST & FREE SHIPPING On All Orders Over $99

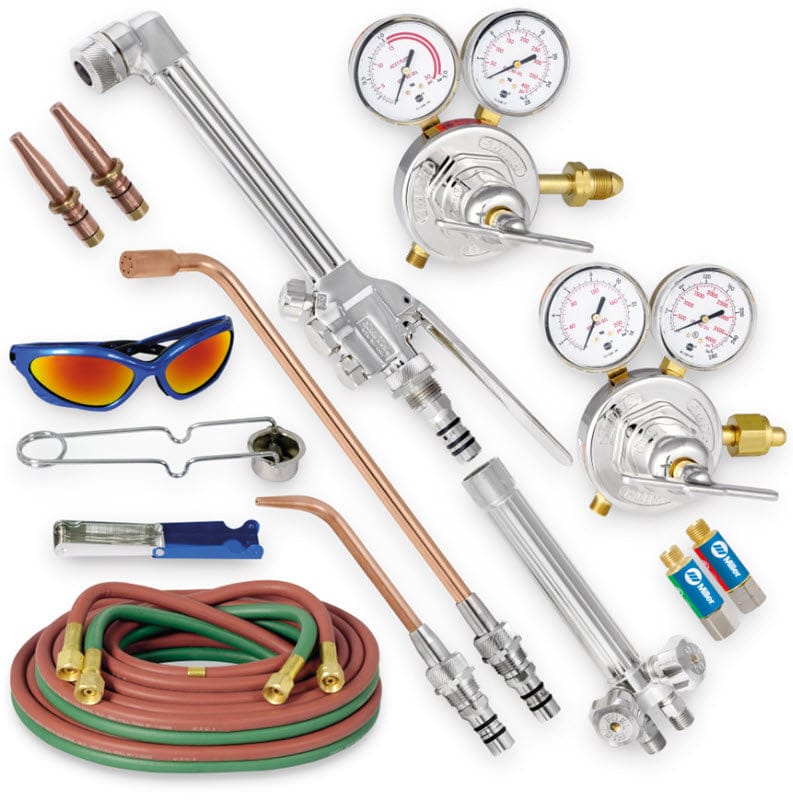

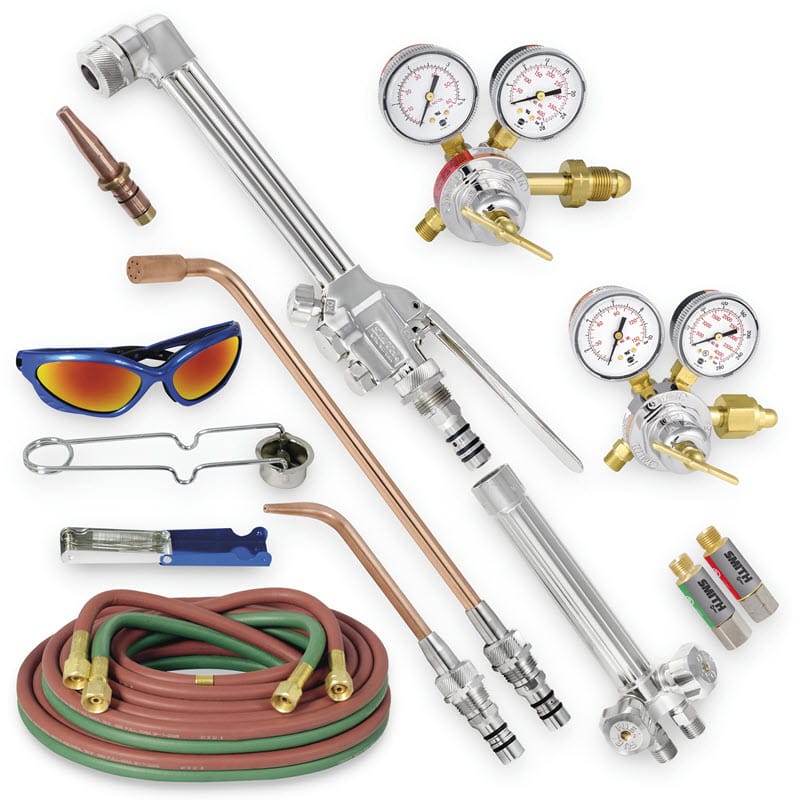

Smith® Welding & Cutting Outfit - Heavy Duty HBA-30510

The Smith® HBA-30510 welding and cutting kit is a premium heavy duty outfit featuring Smith's Series 30 medium duty gas regulators with heavy duty torch handle, cutting attachment and tips. Smith's proven in-tip gas mixing technology greatly improves operator safety and increases torch life. The cutting attachment and torch handle are covered by Smith's True Blue® 5 year warranty.  The gas regulators, are covered by Smith's True Blue® 3 year warranty. The Smith® 30 series medium duty brass regulators have large 2 inch gauges.

Outfits are complete with safety and operations manual. Outfit include 1 cutting tip, welding tip, heating tip, tip cleaner.

Applications
HEAVY DUTY CUTTING, WELDING & HEATING OUTFIT CUTS UP TO 8 inches (203mm) WELDS UP TO 1/2 inches (13mm) (With optional tips)



Features
  • Graf-Tite® soft seats - Resilient Graf-Tite® seat material protects tip seating areas from nicking to maintain positive seating. Requires less replacement than metal-to-metal seat designs. Compressible soft seats are practically indestructible and withstand extremely high temperatures, resulting in longer tip life.
  • In-tip mix - Each tip is a precision engineered mixer for combining preheat oxygen and fuel gas to attain maximum efficiency. Adds resistance to flashback.
  • Slip-in tip design - just hand tighten After the first tightening with a wrench, only hand tightening is required to seat the tip, saving time when changing tips. Quick and easy tip changes encourage use of right tip for the job.
  • Removable high-pressure seat - Allows cleaning from back of tip.
  • Three-tube construction - Gases are kept separated, eliminating mixing tube burnout. Our thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength.
  • Ease-on oxygen cutting valve - Allows smooth piercing and keyhole free starts and restarts.
  • Triple o-ring seal - Provides positive gas seal, and allows rotation.
  • Internal threads - Threads are protected from damage if the torch is dropped, eliminating costly torch repair, replacement or downtime.
  • Double-tube handle - Tube-within-a-tube design provides strength while reducing weight. Internal tube is silver brazed for extra protection, strength and leak resistance.
  • Adjustable valve resistance - Special PTFE packing provides a gas-tight seal while allowing the "drag" to be adjusted to the individual preference.
  • Stainless steel ball-style valves - Corrosion-resistant balls and brass seating surfaces provide gall resistance and positive, chatter-free seating.
  • Dual Filters Including Sure Seat™ - The regulator dual filter design protects the high-pressure seat from debris for reliable operation and long service life.
  • Replaceable hose connections - Hose connections are easily replaced if damaged.

    Specs





    Comes complete with:
  • WH200A Torch handle
  • SC209 Cutting attachment
  • SC12-1 Acetylene cutting tip
  • SW205 Welding tip
  • ST602 Heating tip
  • 30-100-540 Oxygen regulator
  • 30-15-510 Acetylene regulator
  • RL1131 25-ft 1/4" Twin hose N113ANB Friction lighter
  • 235657 Safety glasses
  • N230 Tip cleaner
  • H743 Torch mount flashback arrestors
  • operations manual

    Know your acetylene inlet
  • If your tank valve has female threads, you should choose this CGA 510 (male) torch kit. Note: will not fit "B" or "MC" acetylene cylinder.

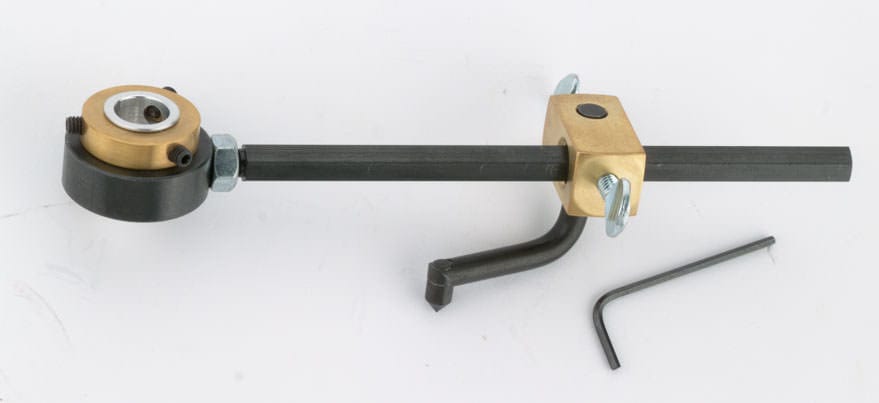

  • Smith Circle Cutting Guide 16229

    Smith Circle Cutting Guide 16229

    Regular price
    $133.75
    Lowest Internet Price
    Mfg Industrial Price: $152.81
    $133.75
    You Save $19.06

    Smith® Circle Cutting Guide - Universal circle cutting guide fits all major brands of oxy/fuel cutting torches/cutting attachments.

    Smith "Hard Hat" Gauge Guard - Medium Duty H195

    Smith "Hard Hat" Gauge Guard - Medium Duty H195

    1.0
    Rated 1.0 out of 5 stars
    1 Review
    Regular price
    $37.10
    Lowest Internet Price
    Mfg Industrial Price: $74.13
    $37.10
    You Save $37.03

    Smith® "Hard Hat" Gauge Guard - Medium Duty H195

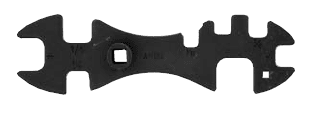

    Atlas Cylinder Wrench - 10 Way W1013

    Atlas Cylinder Wrench - 10 Way W1013

    3.3
    Rated 3.3 out of 5 stars
    4 Reviews
    Regular price
    $6.25
    Lowest Internet Price
    Mfg Industrial Price: $6.92
    $6.25
    You Save $0.67

    Atlas Cylinder Wrench - 10 Way W1013

    Smith Flashback Arrestor (set) - Torch Mount H743

    Smith Flashback Arrestor (set) - Torch Mount H743

    5.0
    Rated 5.0 out of 5 stars
    3 Reviews
    Regular price
    $72.60
    Lowest Internet Price
    Mfg Industrial Price: $116.09
    $72.60
    You Save $43.49

    Smith® Torch Mount H743 Flashback Arrestor set consists of one oxygen and one fuel gas flashback arrestor.

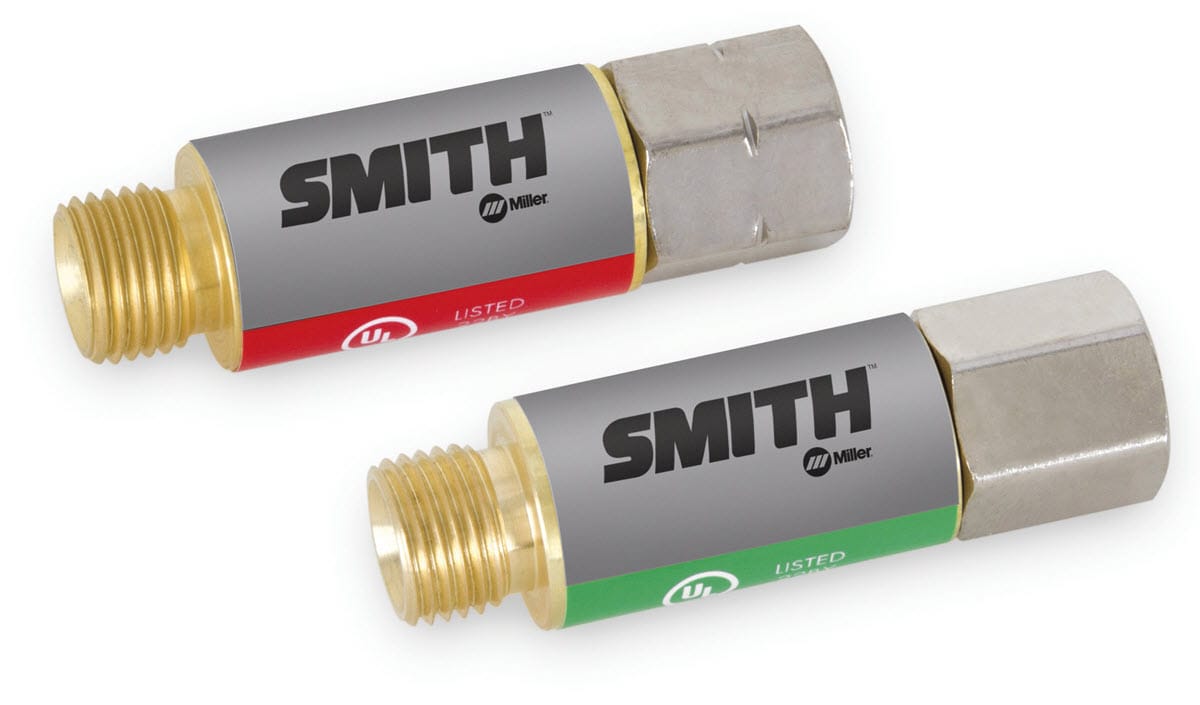

    Smith Flashback Arrestor (set) - Regulator Mount H753

    Smith Flashback Arrestor (set) - Regulator Mount H753

    4.6
    Rated 4.6 out of 5 stars
    8 Reviews
    Regular price
    $72.60
    Lowest Internet Price
    Mfg Industrial Price: $116.09
    $72.60
    You Save $43.49

    Smith® Flashback Arrestor (set) - Regulator Mount H753

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-0

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-0

    Regular price
    $18.80
    Lowest Internet Price
    Mfg Industrial Price: $37.58
    $18.80
    You Save $18.78

    Genuine Smith® SC12 series replacement cutting tip, size 0.

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-1

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-1

    Regular price
    $18.80
    Lowest Internet Price
    Mfg Industrial Price: $37.58
    $18.80
    You Save $18.78

    Genuine Smith® SC12 series replacement cutting tip, size 1.

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-2

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-2

    Regular price
    $18.80
    Lowest Internet Price
    Mfg Industrial Price: $37.58
    $18.80
    You Save $18.78

    Genuine Smith® SC12 series replacement cutting tip, size 2.

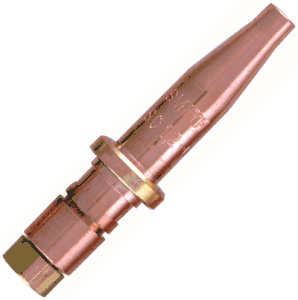

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-3

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-3

    Regular price
    $18.80
    Lowest Internet Price
    Mfg Industrial Price: $37.58
    $18.80
    You Save $18.78

    Genuine Smith® SC12 series replacement cutting tip, size 3.

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-4

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-4

    Regular price
    $18.80
    Lowest Internet Price
    Mfg Industrial Price: $37.58
    $18.80
    You Save $18.78

    Genuine Smith® SC12 series replacement cutting tip, size 4.

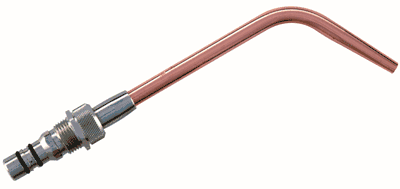

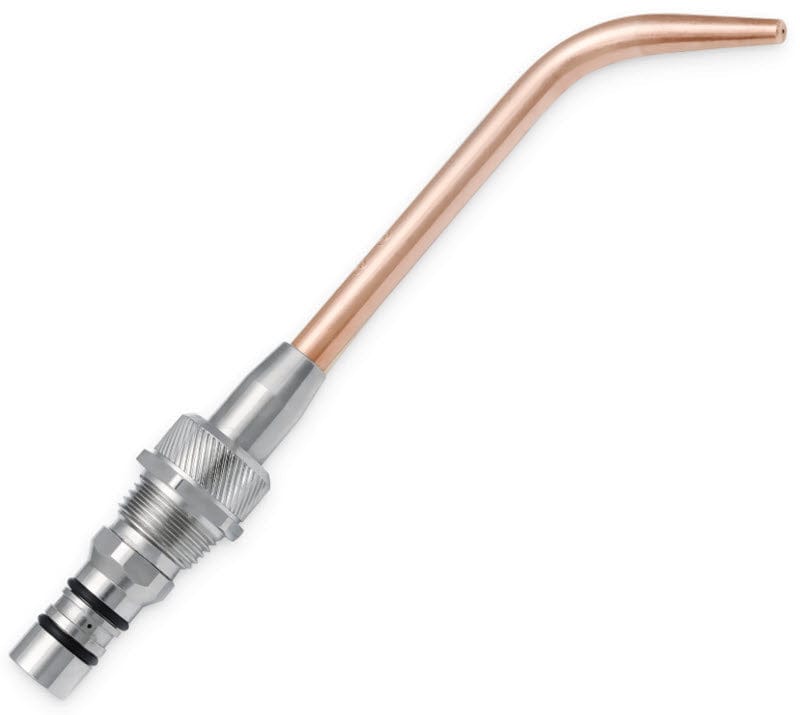

    Smith Welding - SW Series (Acetylene) SW203

    Smith Welding - SW Series (Acetylene) SW203

    Regular price
    $58.85
    Lowest Internet Price
    Mfg Industrial Price: $117.65
    $58.85
    You Save $58.80

    Genuine Smith® Welding Tip - SW Series (Acetylene), size SW203, for use with SW1, SW2 and WH200 torch handles.

    Smith Welding - SW Series (Acetylene) SW205

    Smith Welding - SW Series (Acetylene) SW205

    Regular price
    $58.85
    Lowest Internet Price
    Mfg Industrial Price: $117.65
    $58.85
    You Save $58.80

    Genuine Smith® Welding Tip - SW Series (Acetylene), size SW205, for use with SW1, SW2 and WH200 torch handles.

    Smith Welding - SW Series (Acetylene) SW207

    Smith Welding - SW Series (Acetylene) SW207

    Regular price
    $63.99
    Lowest Internet Price
    Mfg Industrial Price: $127.94
    $63.99
    You Save $63.95

    Genuine Smith® Welding Tip - SW Series (Acetylene), size SW207, for use with SW1, SW2 and WH200 torch handles.

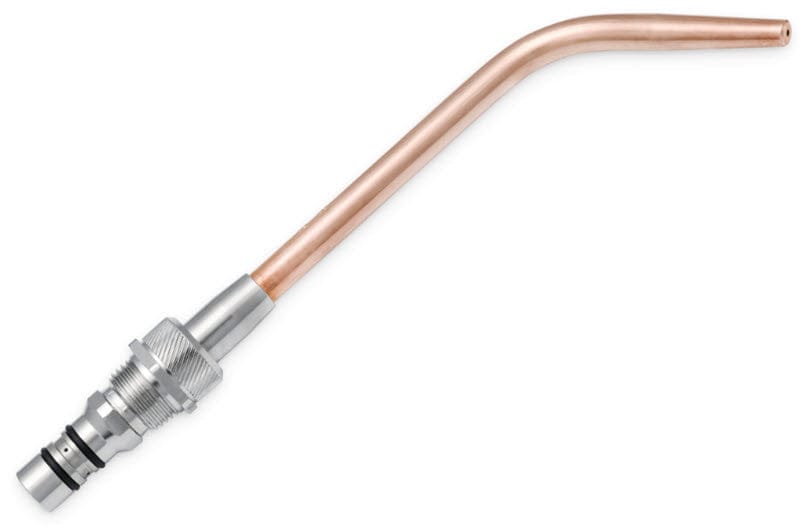

    Smith Welding - SW Series (Acetylene) SW209

    Smith Welding - SW Series (Acetylene) SW209

    Regular price
    $63.99
    Lowest Internet Price
    Mfg Industrial Price: $127.94
    $63.99
    You Save $63.95

    Genuine Smith® Welding Tip - SW Series (Acetylene), size SW209, for use with SW1, SW2 and WH200 torch handles.

    Smith Heating Tip - ST Series (Acetylene) ST602

    Smith Heating Tip - ST Series (Acetylene) ST602

    5.0
    Rated 5.0 out of 5 stars
    3 Reviews
    Regular price
    $105.75
    Lowest Internet Price
    Mfg Industrial Price: $211.42
    $105.75
    You Save $105.67

    Smith's® ST Series, multi-flame heating tip, size ST602, is suitable for use with Smith WH200, SW1A and SW1B torch handles.

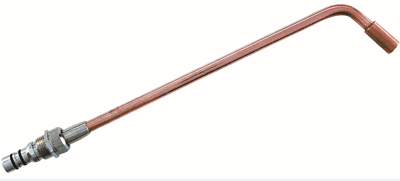

    Smith Heating Tip - ST Series (Acetylene) ST603
