Smith Welding & Cutting Outfit - Heavy Duty HBA-40300

5.0
Rated 5.0 out of 5 stars
2 Reviews

Code: HBA-40300

Skip to product information
1 of 1

Cyberweld Price $784.95
Cyberweld Price $784.95
Mfg Industrial Price: $1,667.96
(You Save $883.01)
This item qualifies for free standard shipping.

Acetylene Inlet:CGA 300 (Female)

-
+
FAST & FREE SHIPPING On All Orders Over $99


Smith® Welding & Cutting Outfit - Heavy Duty HBA-40300

The Smith® HBA-40300 welding and cutting kit is a premium heavy duty torch outfit featuring Smith's proven in-tip gas mixing technology. This greatly improves operator safety and increases torch life.Regulators, cutting attachment and torch handle are covered by Smith's True Blue® 3 year warranty. The Smith® 40 series heavy duty brass regulators have large 2.5 inch gauges.

Outfits are complete with safety and operations manual. All outfits include 2 cutting tips, welding tip, heating tip, tip cleaner.

Applications
HEAVY DUTY CUTTING, WELDING & HEATING OUTFIT CUTS UP TO 8 inches (203mm) WELDS UP TO 1/2 inch (13mm) (With optional tips)



Features
  • Graf-Tite soft seats - Resilient Graf-Tite seat material protects tip seating areas from nicking to maintain positive seating. Requires less replacement than metal-to-metal seat designs. Compressible soft seats are practically indestructible and withstand extremely high temperatures, resulting in longer tip life.
  • In-tip mix - Each tip is a precision engineered mixer for combining preheat oxygen and fuel gas to attain maximum efficiency. Adds resistance to flashback.
  • Slip-in tip design just hand tighten After the first tightening with a wrench, only hand tightening is required to seat the tip, saving time when changing tips. Quick and easy tip changes encourage use of right tip for the job.
  • Removable high-pressure seat - Allows cleaning from back of tip.
  • Three-tube construction - Gases are kept separated, eliminating mixing tube burnout. Our thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength.
  • Ease-on oxygen cutting valve - Allows smooth piercing and keyhole free starts and restarts.
  • Triple o-ring seal - Provides positive gas seal, and allows rotation.
  • Internal threads - Threads are protected from damage if the torch is dropped, eliminating costly torch repair, replacement or downtime.
  • Double-tube handle - Tube-within-a-tube design provides strength while reducing weight. Internal tube is silver brazed for extra protection, strength and leak resistance.
  • Adjustable valve resistance - Special PTFE packing provides a gas-tight seal while allowing the drag to be adjusted to the individual preference.
  • Stainless steel ball-style valves - Corrosion-resistant balls and brass seating surfaces provide gall resistance and positive, chatter-free seating.
  • Replaceable hose connections - Hose connections are easily replaced if damaged.

    Specs





    Comes complete with:
  • 40 Series heavy duty oxy/acetylene regulators
  • WH200A heavy duty torch handle
  • SC209 heavy duty cutting attachment
  • 1 each SC12-1 & SC12-2 cutting tips
  • SW205 welding tip
  • ST602 heating tip
  • 25-ft. (7.6 m) 1/4-in. (6 mm) grade R twin hose
  • Spark lighter
  • Safety glasses
  • Tip cleaner
  • H743 torch-mount flashback arrestors
  • Operations manual

    Know your acetylene inlet
  • If your tank valve has male threads, you should choose this CGA 300 (female) torch kit. Note: will not fit "B" or "MC" acetylene cylinder.

  • Smith Circle Cutting Guide 16229

    Smith Circle Cutting Guide 16229

    Regular price
    $133.75
    Lowest Internet Price
    Mfg Industrial Price: $152.81
    $133.75
    You Save $19.06

    Smith® Circle Cutting Guide - Universal circle cutting guide fits all major brands of oxy/fuel cutting torches/cutting attachments.

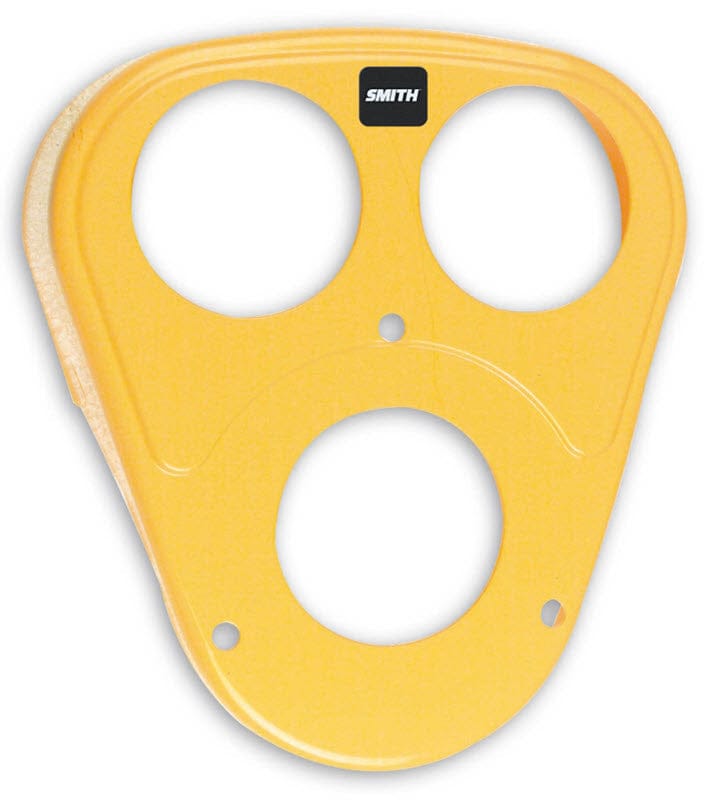

    Smith "Hard Hat" Gauge Guard - Heavy Duty HB190
