Smith Welding & Cutting Outfit - Medium Duty MBA-30300

4.9
Rated 4.9 out of 5 stars
10 Reviews

Code: MBA-30300

1 1

Cyberweld Price $516.00
Cyberweld Price $516.00
Mfg Industrial Price: $1,096.45
(You Save $580.45)

This item qualifies for free standard shipping.
Earn 516 rewards points for this item!  (Start Earning Rewards!)

Acetylene Inlet:CGA 300 (Female)

-
+
CA Warning
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
FAST & FREE SHIPPING On All Orders Over $99

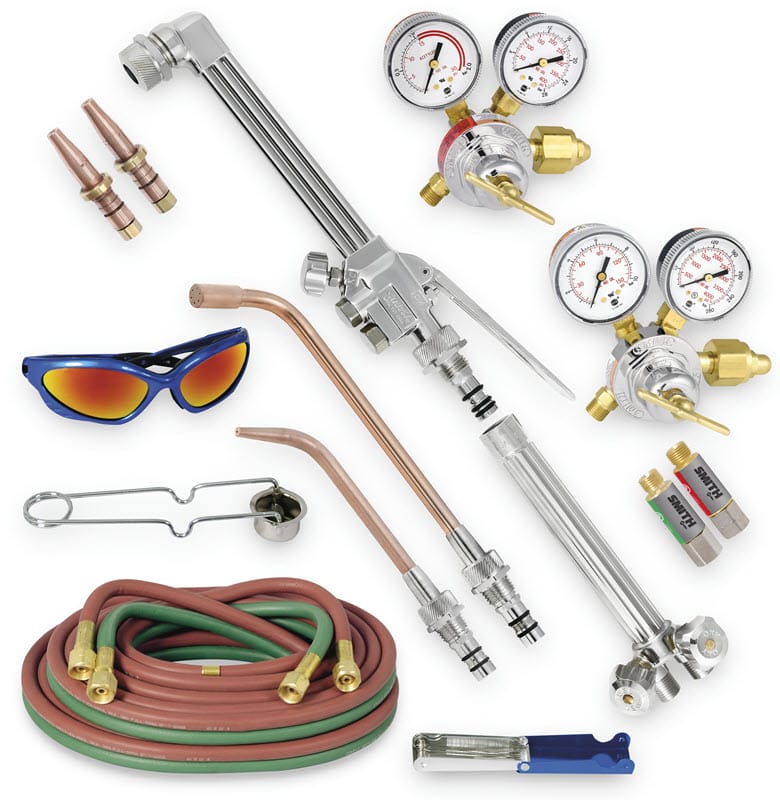

Smith® Welding & Cutting Outfit - Series 30 Medium Duty MBA-30300

The Smith® MBA-30300 medium duty welding and cutting outfit features quality construction throughout and is built to provide reliability and extended service. This oxy/acetylene torch kit comes with Smith's proven in-tip gas mixing technology. This combination greatly improves operator safety and increases torch life. Regulators, cutting attachment and torch handle are covered by Smith's True Blue® 3 year warranty. The outfit features rugged, highly accurate regulators. Outfits come complete with safety and operations manual.



Features
  • Graf-Tite™ soft seats - Resilient Graf-Tite™ seat material protects tip seating areas from nicking to maintain positive seating. Requires less replacement than metal-to-metal seat designs. Compressible soft seats are practically indestructible and withstand extremely high temperatures, resulting in longer tip life.
  • In-tip mix - Each tip is a precision engineered mixer for combining preheat oxygen and fuel gas to attain maximum efficiency. Adds resistance to flashback.
  • Slip-in tip design - just hand tighten After the first tightening with a wrench, only hand tightening is required to seat the tip, saving time when changing tips. Quick and easy tip changes encourage use of right tip for the job.
  • Removable high-pressure seat - Allows cleaning from back of tip.
  • Three-tube construction - Gases are kept separated, eliminating mixing tube burnout. Our thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength.
  • Ease-on oxygen cutting valve - Allows smooth piercing and keyhole free starts and restarts.
  • Triple o-ring seal - Provides positive gas seal, and allows rotation.
  • Internal threads - Threads are protected from damage if the torch is dropped, eliminating costly torch repair, replacement or downtime.
  • Double-tube handle - Tube-within-a-tube design provides strength while reducing weight. Internal tube is silver brazed for extra protection, strength and leak resistance.
  • Adjustable valve resistance - Special PTFE packing provides a gas-tight seal while allowing the drag to be adjusted to the individual preference.
  • Stainless steel ball-style valves - Corrosion-resistant balls and brass seating surfaces provide gall resistance and positive, chatter-free seating.
  • Replaceable hose connections - Hose connections are easily replaced if damaged.



    Comes complete with
  • W100 Torch handle
  • MC509 Cutting attachment
  • MC12-0 Acetylene cutting tip
  • MC12-1 Acetylene cutting tip
  • MW205 Welding tip
  • MT603 Heating tip
  • 30-100-540 Oxygen regulator
  • 30-15-300 Acetylene regulator
  • RL935 3/16"-20 ft. twin hose
  • N113ANB Friction lighter
  • Miller 235657 Safety glasses
  • N230 Tip cleaner
  • H743 Torch mount flashback arrestors
  • Operations manual

    Know your acetylene inlet
  • If your tank valve has male threads, you should choose a CGA 300 (female) regulator. Note: will not fit "B" or "MC" acetylene cylinder.
    • Smith Circle Cutting Guide 16229

    Smith Circle Cutting Guide 16229

    $133.75
    Lowest Internet Price
    Mfg Industrial Price: $152.81
    $133.75
    You Save $19.06

    Smith® Circle Cutting Guide - Universal circle cutting guide fits all major brands of oxy/fuel cutting torches/cutting attachments.

    Smith "Hard Hat" Gauge Guard - Medium Duty H195

    Smith "Hard Hat" Gauge Guard - Medium Duty H195

    1.0
    Rated 1.0 out of 5 stars
    1 Review
    $37.10
    Lowest Internet Price
    Mfg Industrial Price: $74.13
    $37.10
    You Save $37.03

    Smith® "Hard Hat" Gauge Guard - Medium Duty H195

    Atlas Cylinder Wrench - 10 Way W1013

    Atlas Cylinder Wrench - 10 Way W1013

    3.3
    Rated 3.3 out of 5 stars
    4 Reviews
    $6.25
    Lowest Internet Price
    Mfg Industrial Price: $6.92
    $6.25
    You Save $0.67

    Atlas Cylinder Wrench - 10 Way W1013

    Smith Flashback Arrestor (set) - Torch Mount H743

    Smith Flashback Arrestor (set) - Torch Mount H743

    5.0
    Rated 5.0 out of 5 stars
    3 Reviews
    $72.60
    Lowest Internet Price
    Mfg Industrial Price: $116.09
    $72.60
    You Save $43.49

    Smith® Torch Mount H743 Flashback Arrestor set consists of one oxygen and one fuel gas flashback arrestor.

    Smith Flashback Arrestor (set) - Regulator Mount H753

    Smith Flashback Arrestor (set) - Regulator Mount H753

    4.6
    Rated 4.6 out of 5 stars
    8 Reviews
    $72.60
    Lowest Internet Price
    Mfg Industrial Price: $116.09
    $72.60
    You Save $43.49

    Smith® Flashback Arrestor (set) - Regulator Mount H753

    Smith Cutting Tip MC12 Series (Acetylene) - MC12-00

    Smith Cutting Tip MC12 Series (Acetylene) - MC12-00

    5.0
    Rated 5.0 out of 5 stars
    10 Reviews
    $18.40
    Lowest Internet Price
    Mfg Industrial Price: $36.75
    $18.40
    You Save $18.35

    Genuine Smith® Cutting Tip MC12 Series, size 00.

    Smith Cutting Tip MC12 Series (Acetylene) - MC12-0

    Smith Cutting Tip MC12 Series (Acetylene) - MC12-0

    $18.40
    Lowest Internet Price
    Mfg Industrial Price: $36.75
    $18.40
    You Save $18.35

    Genuine Smith® Cutting Tip MC12 Series, size 0.

    Smith Cutting Tip MC12 Series (Acetylene) - MC12-1

    Smith Cutting Tip MC12 Series (Acetylene) - MC12-1

    $18.40
    Lowest Internet Price
    Mfg Industrial Price: $36.75
    $18.40
    You Save $18.35

    Genuine Smith® Cutting Tip MC12 Series, size 1.

    Smith Cutting Tip MC12 Series (Acetylene) - MC12-2

    Smith Cutting Tip MC12 Series (Acetylene) - MC12-2

    $18.40
    Lowest Internet Price
    Mfg Industrial Price: $36.75
    $18.40
    You Save $18.35

    Genuine Smith® Cutting Tip MC12 Series, size 2.

    Smith Welding Tip - MW Series (Acetylene) MW201

    Smith Welding Tip - MW Series (Acetylene) MW201

    5.0
    Rated 5.0 out of 5 stars
    14 Reviews
    $52.50
    Lowest Internet Price
    Mfg Industrial Price: $104.94
    $52.50
    You Save $52.44

    Genuine Smith® Welding Tip - MW Series (Acetylene), size MW201, for use with MW5 and WH100 torch handles.

    Smith Welding Tip - MW Series (Acetylene) MW203

    Smith Welding Tip - MW Series (Acetylene) MW203

    $52.50
    Lowest Internet Price
    Mfg Industrial Price: $104.94
    $52.50
    You Save $52.44

    Genuine Smith® Welding Tip - MW Series (Acetylene), size MW203, for use with MW5 and WH100 torch handles.

    Smith Welding Tip - MW Series (Acetylene) MW205

    Smith Welding Tip - MW Series (Acetylene) MW205

    $52.50
    Lowest Internet Price
    Mfg Industrial Price: $104.94
    $52.50
    You Save $52.44

    Genuine Smith® Welding Tip - MW Series (Acetylene), size MW205, for use with MW5 and WH100 torch handles.

    Smith Heating Tip - MT Series (Acetylene) MT603

    Smith Heating Tip - MT Series (Acetylene) MT603

    4.6
    Rated 4.6 out of 5 stars
    9 Reviews
    $84.70
    Lowest Internet Price
    Mfg Industrial Price: $169.41
    $84.70
    You Save $84.71

    Smith® MT Series multi-flame heating tip, size MT603, is suitable for use with Smith WH100 and MW5A torch handles.

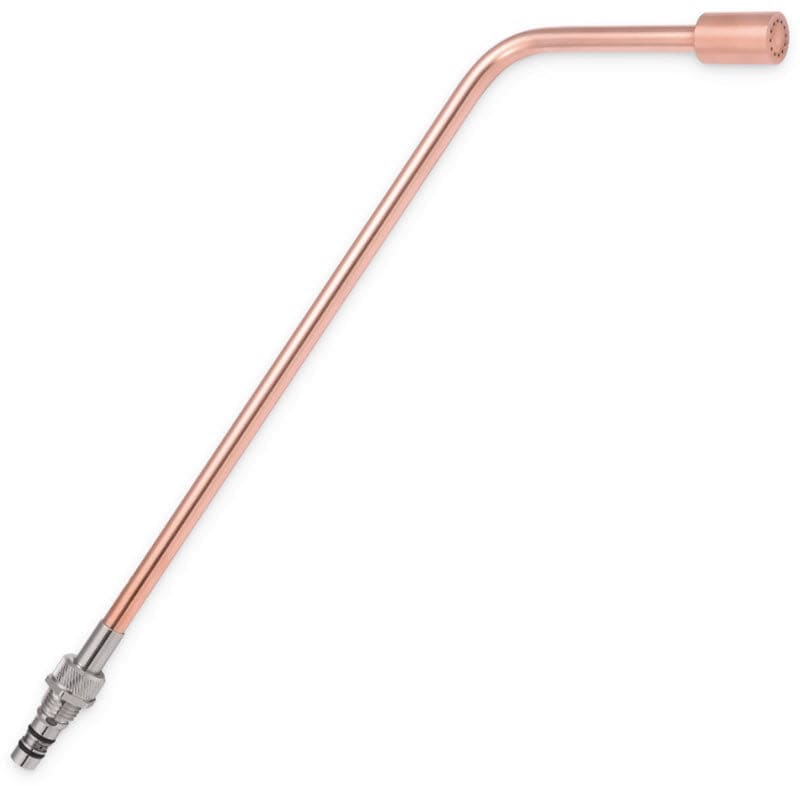

    Smith Heating Tip - MT Series (Acetylene) MT605
