Miller Venture 150 S Battery Welder w/400Wh Battery and Charger 951000202

Miller® Venture™ 150 S Battery Welder with 400Wh Battery and Charger 951000202

The Miller® Venture™ 150 S #951000202 is a 150 amp battery welder that comes complete with a 400Wh (watt-hour) battery and charger. It is capable of up to 150 amps of DC stick welding output and 160 amps of DC TIG output (with OPTIONAL TIG torch). Stick welding features include Miller's Hot Start™, which provides better arc starts and helps prevent your electrode from sticking to the workpiece. The Venture also handles E6010 stick electrodes with ease. For DC TIG, built-in Lift-Arc™ initiates the TIG welding arc without using high frequency. The TIG arc is struck when the tungsten electrode is lifted off of the weld piece, reducing tungsten contamination.

The Venture 150 S weighs only 27 pounds, with battery attached - making it the lightest battery welder in its class. The removable, rechargeable battery reaches 95% charge in as little as 30 minutes. It has a life of up to 1,000 charging cycles with proper care.

The Venture 150 S comes complete with battery, battery charger, 10 ft. lead cable with electrode holder, 10 ft. ground with clamp, shoulder strap and Miller's True Blue® 3 year warranty.



Process

Stick (SMAW)

Lift-Arc™ DC TIG (GTAW) - with OPTIONAL TIG torch

Applications
Mechanical contractors
Maintenance and repair
Construction
Mobile welding


Features

Swappable batteries are engineered for welding
Lightweight and packed with power, the Venture™ 150 S battery welder allows you to be more nimble on the job. Less equipment to carry — more time to weld.

Engineered for Durability and Safety
Battery chemistry and cell design are engineered specifically for high power applications like welding.

Innovative Software Design
Battery management software protects the battery and allows it to operate optimally throughout a range of conditions.

Variable Charging
Fast charging (from 0 to 95% in <30 minutes) enables a quick charge time and throughput with the flexibility of standard charging (<60 minutes) for extended life.

Created for Versatility
Batteries are lightweight and swappable, so users can weld anywhere.

Long Life
Over 1,000 charge cycles under typical use cases and with proper care.

6010 stick electrode capability
Superior stick arc performance even on the difficult-to-run electrodes like E6010.

Hot Start™
Adaptive control provides positive arc starts without sticking.

Lift-Arc™
Provides arc starting that minimizes contamination of the tungsten electrode without the use of high-frequency.

Fan-On-Demand™
Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through the machine.

Thermal overload protection
Helps prevent machine damage in light industrial applications.

Low OCV Stick
A simple design that reduces the open-circuit voltage to 12-16 volts when the welding power source is not in use. Can be enabled or disabled. Some jobs require this.

Stick-Stuck
detects if the electrode is stuck to the work piece and turns the welding output off to safely and easily remove the electrode.



NOTE: This is a DC welder ONLY. It CANNOT weld aluminum.

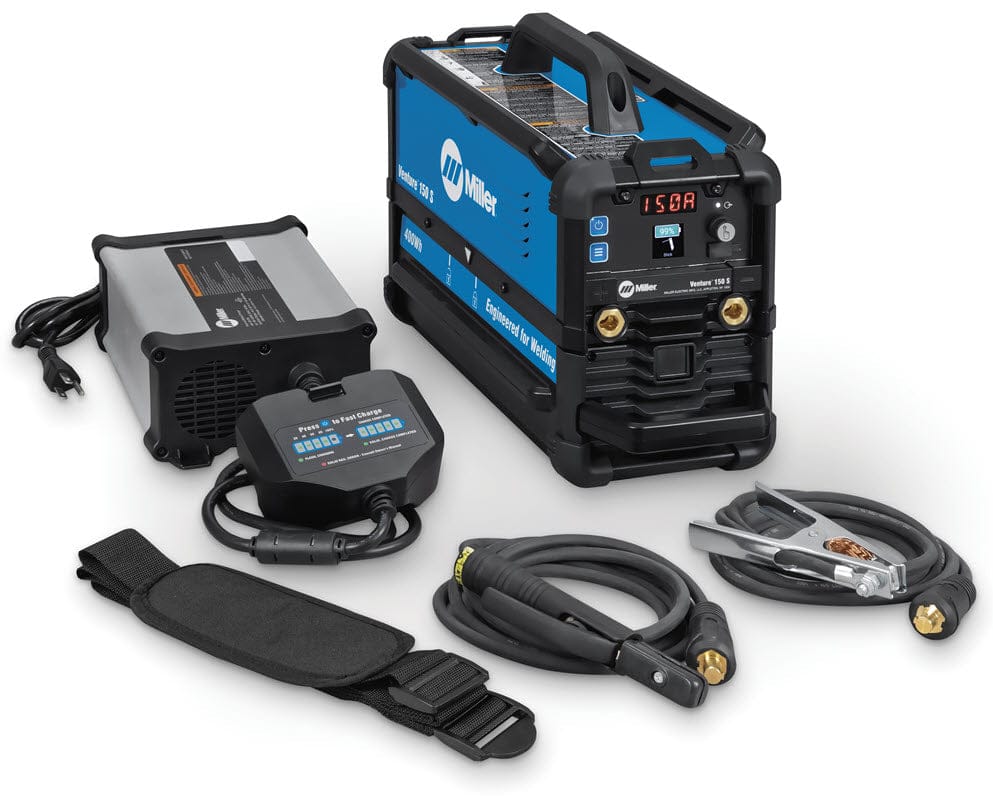

Comes complete with

Venture™ 150 S battery welder welder

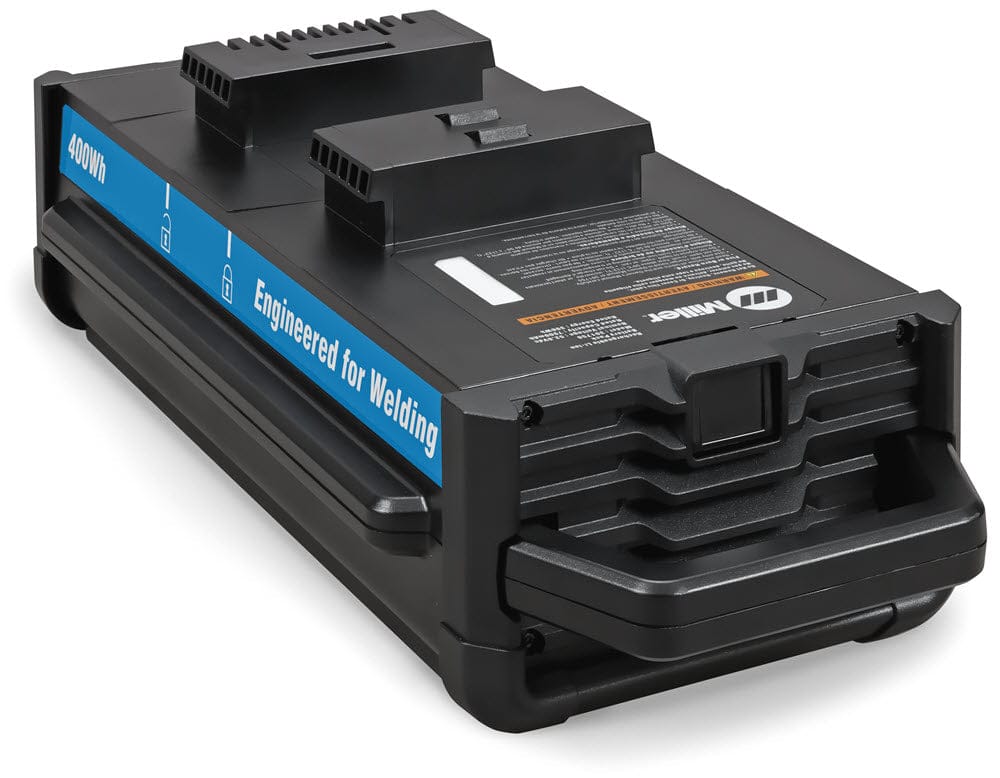

400Wh (watt-hour) battery

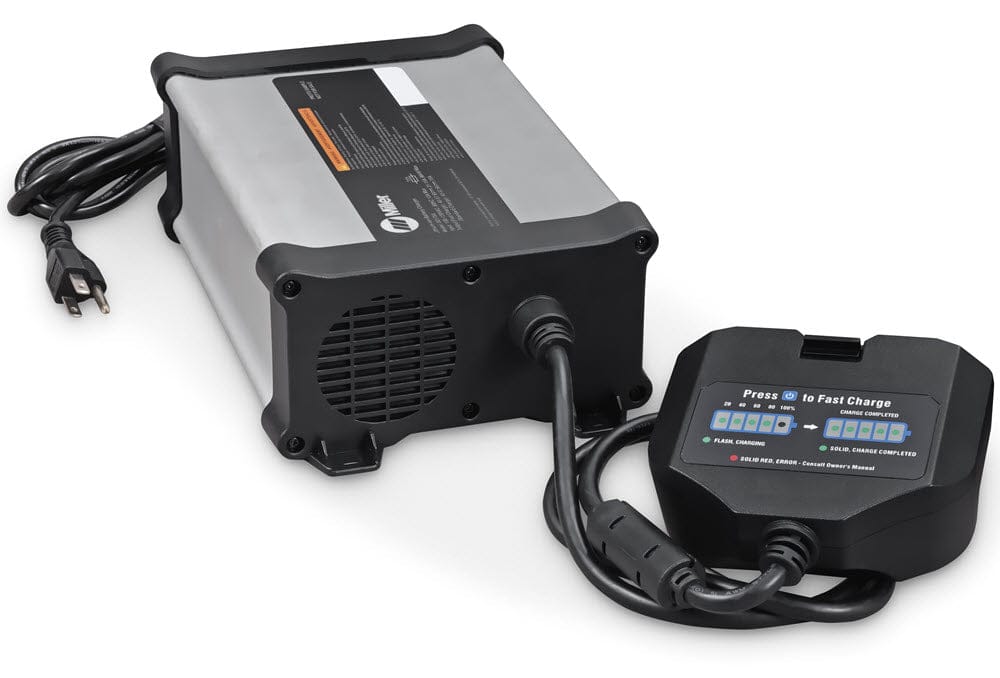

Battery charger

10 ft. (3 m) #4 work cable with clamp and 50 mm Dinse-style connector

10 ft. (3 m) #4 lead cable with stick electrode holder and 50 mm Dinse-style connector

Shoulder strap with pad

8 Rubber bumpers/feet
