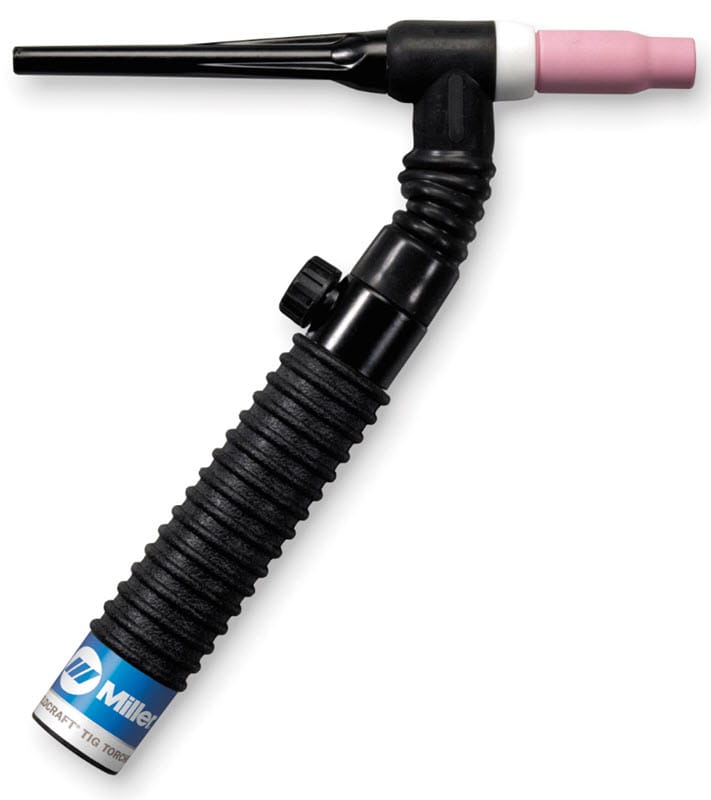

Weldcraft™ A-200 Flex TIG Torch Package With Gas Valve - 2 Piece 200 Amp Air-Cooled WP-26FV-25-2
Genuine Weldcraft™ WP-26FV-25-2 TIG torch with flexible head and gas valve is a 200 amp, air-cooled torch with individual 25 ft. gas hose and power cable. The TIG torch's flexible neck adjusts to just about any welding angle. The gas valve provides convenient on/off gas control at the torch. The two piece WP-26FV-25-2 is intended for use with TIG/Stick welders that do not have a built-in gas solenoid. Rubber insulated power cable has a lug on one end to connect to output stud of the welder or to a stinger. Braided rubber gas hose has male inert gas fitting and hooks directly to the gas outlet of your inert gas flowmeter/regulator.
The WP-26FV-25-2 provides a comfortable grip and better torch control in all positions. The ergonomic torch design ensures proper relationship between the TIG torch and weld joint, with maximum comfort and maneuverability. The A-200 Flex is excellent for welding difficult-to-reach welding joints.
Applications
Fabrication
Maintenance and Repair
Aerospace
Food and Beverage Industry
Metal Art
Petro/Chemical
Shipboard Installation/Repair
Features
Improve control and comfort with the A-200Flex and the
flexible neck that allows access into hard-to-reach areas.
Diamond Grip™ head design - ergonomic contact points for thumb and fingers. Provides
a more comfortable grip and reduces operator fatigue.
Built-in gas valve provides convenient on/off gas control at the torch.
Ribbed handle and torch design provide cool
operation and maximum operator comfort while
reducing downtime caused by operator fatigue.
Utilize existing parts - replacement parts are
easy to find. The A-150 Series uses Weldcraft
10N series consumables.
25-foot power cable
25-foot gas hose
Comes complete with:
A-200 Flex Valve torch body
handle

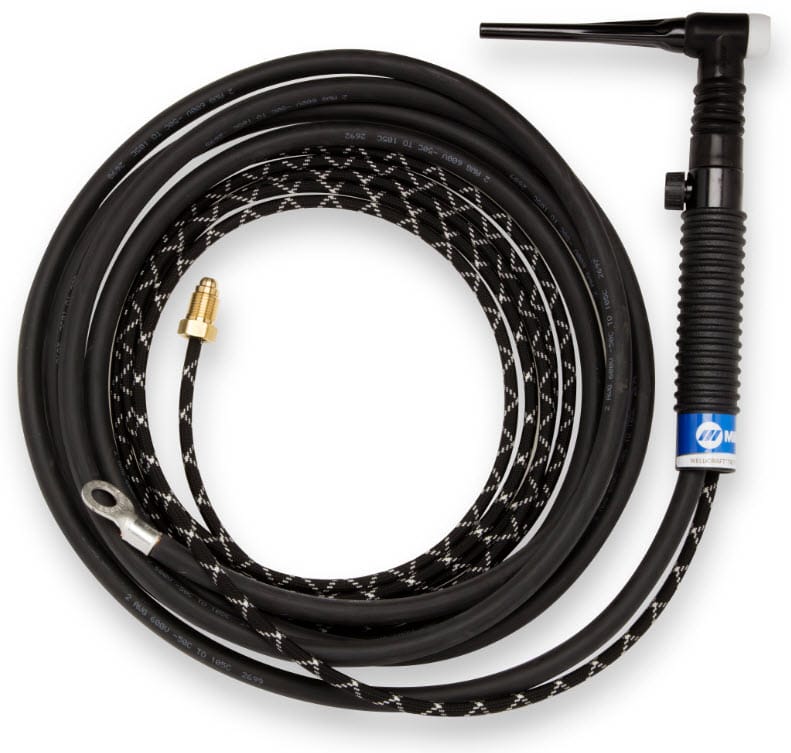

2-Piece 25 ft. (7.6 m) rubber insulated power cable with lug and braided rubber gas hose with male inert gas fitting
long back cap
OPTIONAL AK3C Accessory Kit comes complete with
1 short back cap
3 Collets, 1/16, 3/32 & 1/8"
3 Collet bodies, 1/16, 3/32 & 1/8"
3 Alumina Nozzles, #5, #6, #8
3 Tungsten Electrode 2% Ceriated, 1/16, 3/32 & 1/8 X 7"
