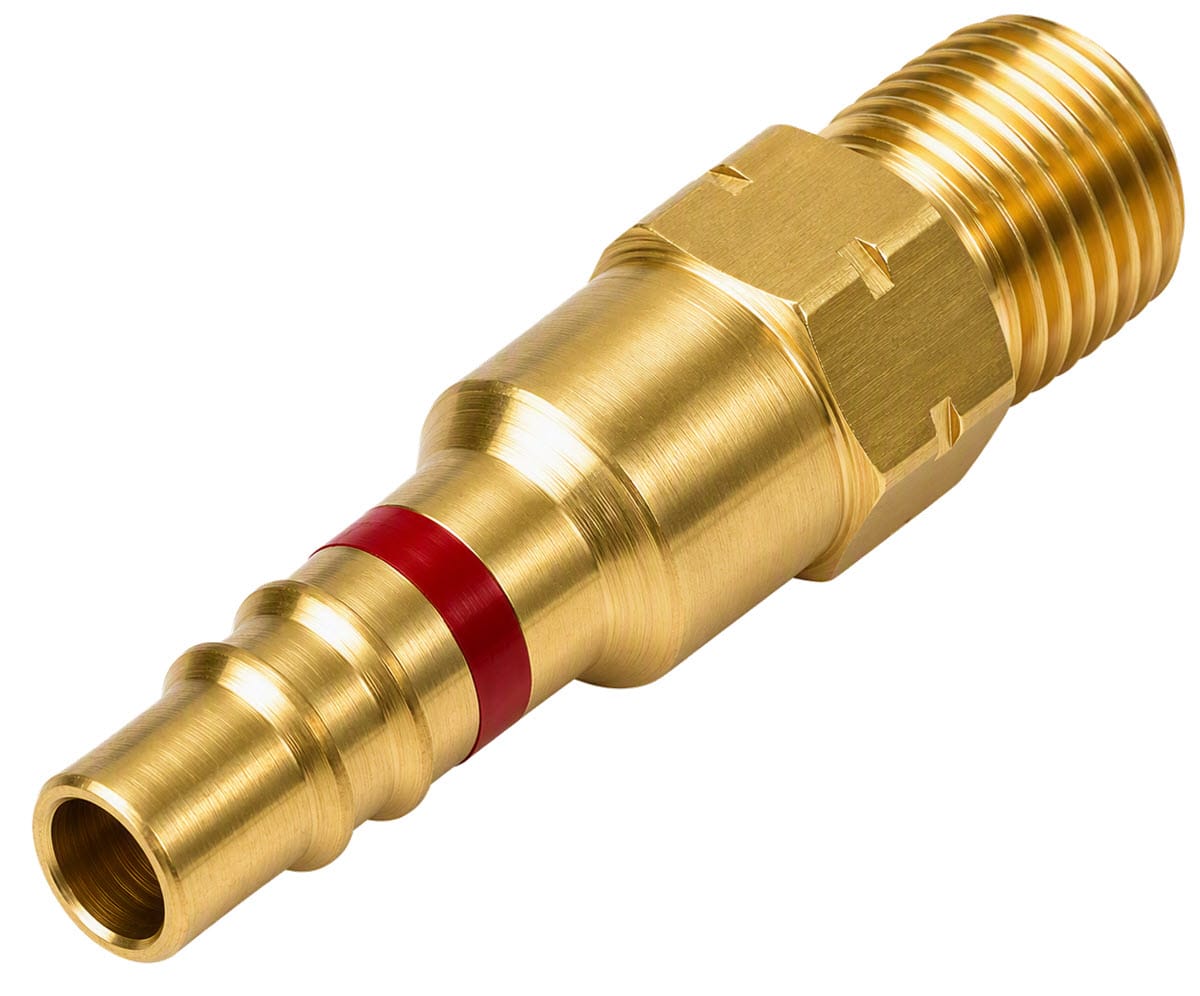

Western QDB205 Fuel Gas Quick Disconnect Male Plug - LH 9/16"-18 (B) Hose

Western™ QDB205 Male Fuel Gas Quick Disconnect Plug - Regulator To Hose

Genuine Western™ QDB205 Regulator to Hose Fuel Gas Quick Connect Replacement Male Plug provides fast, positive connections and quick disconnections for 9/16"-18 (B) LH fuel gas hoses. The QDB205 is color-coded red for fuel gas service. This quick connect fits all B-size (9/16"-18 LH) welding and cutting equipment with left-hand threads.

NOTE: Requires Western QDB206 female socket to complete the connection to a fuel regulator

Features

Brass construction provides long service life cycle tested over 10,000 operations indicating a service life of 10 to12 years of comparable use

Non-interchangeable Oxygen and Fuel Gas connectors prevent accidental gas mixing

Instant closure on reverse flow Check Valves with total shutoff at only 10 oz. of back pressure

Exceed CGA flow specifications 1100 SCFH flow at 125 PSIG inlet pressure and 800 SCFH flow at 125 PSIG inlet pressure when 2 additional check valves are used in conjunction with the Quick Connects

Spring loaded locking mechanism responds to fingertip action and achieves a gas-tight connection

Double seal socket connection on second seal provides added safety protection

Installation and operating instructions included
