Smith Welding & Cutting Outfit - Medium Duty MBA-30300

Code: MBA-30300

Cyberweld Price $500.95

Mfg Industrial Price: $1,064.51

(You Save $563.56)

10 Reviews

Acetylene Inlet:CGA 300 (Female)

QTY

FAST & FREE SHIPPING On All Orders Over $50

6 Questions & 7 Answers

Description

Smith® Welding & Cutting Outfit - Series 30 Medium Duty MBA-30300

The Smith® MBA-30300 medium duty welding and cutting outfit features quality construction throughout and is built to provide reliability and extended service. This oxy/acetylene torch kit comes with Smith's proven in-tip gas mixing technology. This combination greatly improves operator safety and increases torch life. Regulators, cutting attachment and torch handle are covered by Smith's True Blue® 3 year warranty. The outfit features rugged, highly accurate regulators. Outfits come complete with safety and operations manual.

Features

Graf-Tite� soft seats - Resilient Graf-Tite� seat material protects tip seating areas from nicking to maintain positive seating. Requires less replacement than metal-to-metal seat designs. Compressible soft seats are practically indestructible and withstand extremely high temperatures, resulting in longer tip life.

In-tip mix - Each tip is a precision engineered mixer for combining preheat oxygen and fuel gas to attain maximum efficiency. Adds resistance to flashback.

Slip-in tip design � just hand tighten After the first tightening with a wrench, only hand tightening is required to seat the tip, saving time when changing tips. Quick and easy tip changes encourage use of right tip for the job.

Removable high-pressure seat - Allows cleaning from back of tip.

Three-tube construction - Gases are kept separated, eliminating mixing tube burnout. Our thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength.

Ease-on oxygen cutting valve - Allows smooth piercing and keyhole free starts and restarts.

Triple o-ring seal - Provides positive gas seal, and allows rotation.

Internal threads - Threads are protected from damage if the torch is dropped, eliminating costly torch repair, replacement or downtime.

Double-tube handle - Tube-within-a-tube design provides strength while reducing weight. Internal tube is silver brazed for extra protection, strength and leak resistance.

Adjustable valve resistance - Special PTFE packing provides a gas-tight seal while allowing the �drag� to be adjusted to the individual preference.

Stainless steel ball-style valves - Corrosion-resistant balls and brass seating surfaces provide gall resistance and positive, chatter-free seating.

Replaceable hose connections - Hose connections are easily replaced if damaged.

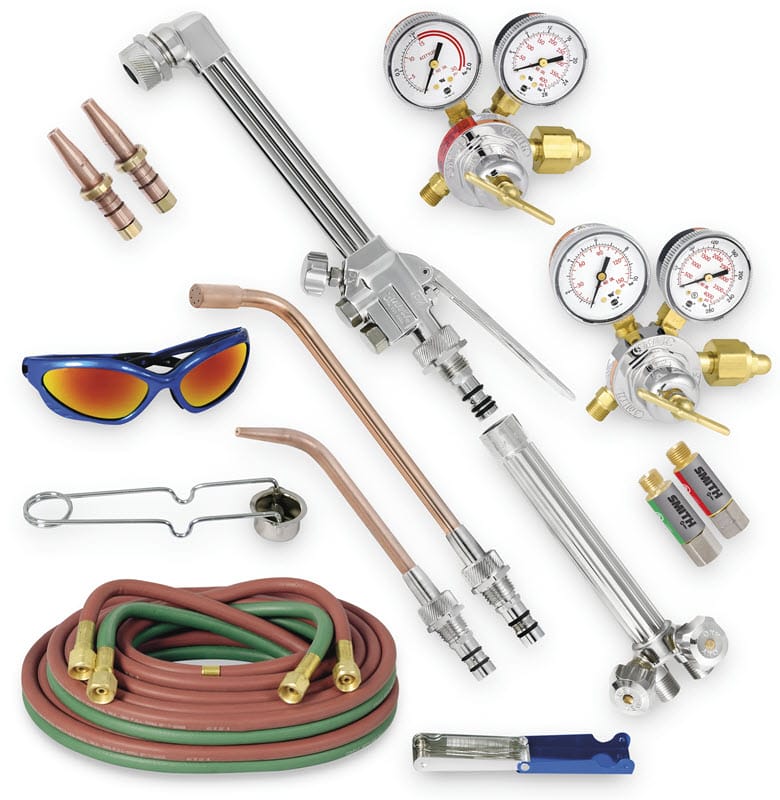

Comes complete with

W100 Torch handle

MC509 Cutting attachment

MC12-0 Acetylene cutting tip

MC12-1 Acetylene cutting tip

MW205 Welding tip

MT603 Heating tip

30-100-540 Oxygen regulator

30-15-300 Acetylene regulator

RL935 3/16"-20 ft. twin hose

N113ANB Friction lighter

Miller 235657 Safety glasses

N230 Tip cleaner

H743 Torch mount flashback arrestors

Operations manual

Know your acetylene inlet

If your tank valve has male threads, you should choose a CGA 300 (female) regulator. Note: will not fit "B" or "MC" acetylene cylinder.

This item ships Free via standard ground shipping within contiguous U.S.

Ask & Answer

6 Questions & 7 Answers

Ask a Question

Mike

from Illinois asked:

November 16, 2020

Is this� torch kit USA made?

1 Answer

Miller advises that the Smith Welding & Cutting Outfit - Medium Duty MBA-30300 is made in the United States.

Submitted by: Customer Service on November 17, 2020

Most Helpful Answer

Answer

Gunther

from Ottawa, Canada asked:

October 17, 2020

Hi, is there a way to use this set with a B size acetylene tank?

1 Answer

Smith Welding & Cutting Outfit - Series 30 Medium Duty MBA-30300 would work with a B (cga 520) cylinder with the use of�Superior Products CGA-520 (B) Acetylene Cylinder to CGA-300 (Commercial) Acetylene Regulator Adapter A-844

Submitted by: Cyberweld on October 21, 2020

Most Helpful Answer

Answer

Ingo

from Kirkfield, Ontario, Canada asked:

April 1, 2016

Hi, Do you ship to Canada. If so, what is the shipping cost and who is the shipping service. Postal code is K0M 2B0. Ingo

1 Answer

We do not ship directly to Canada we work through an exporter.. If you wanted to purchase a Smith Welding & Cutting Outfit - Medium Duty Series 30 MBA-30300 for shipment to Canada you would have to generate an order through our web site. You will reach a point in the order check out process which requires your shipping information. Once you indicate shipping to Canada our exporter will take over and provide you with your shipping costs. Once you have received this information you can continue with the order or you can opt out of the order. The shipping service is Bongo International.

Submitted by: Customer Service on April 1, 2016

Most Helpful Answer

Answer

Ryan

from Dallas, TX asked:

April 2, 2015

Where do I locate the serial number on this product for the purpose of product registration?

2 Answers

The Smith Welding & Cutting Outfit - Medium Duty Series 30 MBA-30300 does not have a serial#. The individual components in the kit , torch handle , and cutting attachment each have a 3 letter date code which is stamped into the body of the item.

Submitted by: Customer Service on April 6, 2015

Most Helpful Answer

Submitted by: Customer Service on April 6, 2015

Most Helpful Answer

Answer

Dan

from Gwinn MI asked:

March 22, 2014

Is this product made in USA?

1 Answer

The Smith Welding & Cutting Outfit - Medium Duty Series 30 MBA-30300 is made in USA

Submitted by: Customer Service on March 24, 2014

Most Helpful Answer

Answer

Sebastian

from Waitsburg, Washington asked:

January 4, 2013

Is the welding tip that comes with this outfit suitable for welding 4130 chromoly thin wall tubing, or must I buy another tip? I plan to use this outfit for homebuilt aircraft construction tasks. Is this outfit well suited for such work or would you recommend some other outfit? Thanks for your time.

1 Answer

The Smith Welding & Cutting Outfit - American Classic MBA-30300 comes with a MW 205 welding tip.. Smith this tip has a welding range up to 1/8 in thickness..An experience welder may be able to control the heat for welding your thin wall tubing using this tip .Smith does offer a MW203 tip rated to 5/64" thick or a MW201 rated to1/32 you may want to consider one of these..Also Smith offers a welding handle called an Airline which is a smaller light weight torch handle which my fit you needs better..This handle uses Smith AW style welding tips.. The AW 201 is rated for very light metal up to 1/32" Unfortuately this handle is not available in any kit.. You may want to consider this as an add on

Submitted by: Customer Service on January 11, 2013

Most Helpful Answer

Answer

Reviews

1599071135

Write a Review

Review Summary

4.9

10 Reviews

90% (9)

10% (1)

0% (0)

100% Recommend this product (10 of 10 responses)

By Alberto

EL CAMPO TX

Replacing my old victor torch

September 2, 2020

I'm really impressed with the quality, I'm replacing my old victor torch and after a lot of research I decided for smith torch, and I'm very pleased with my decision.

By James

Santa Fe, Texas

Great Product

March 10, 2017

This is my first Oxy-acetylene setup, but so far I'm loving the versatility and different things I can weld and cut. It's a quality product and there seems to be plenty of different tips available on the market. Here are a few points I've noticed over the past couple months:

The welding tip that is included does not work well with light gauges of steel, which is primarily what I work with. It blows holes right through the weld. I do like the fact that a rosebud heating tip was included with the kit. Handy to have. The cutting torch is awesome. Blows straight through pretty much anything you can find. Also, I don't like the torch-mount flashback arrestors. They add weight and length to the handle, which isn't really something I desire.

The gauges are heavy duty and built to last. That being said, the adjustment options are somewhat limited on the oxygen side, with marks only provided at 10 psi intervals. Which is the recommended pressure setting for the Smith tips, but limits their use for anything else....

Built to last Easy setup A little heavy for prolonged work Difficult to weld lighter gauges of steel and more delicate pieces Little adjustment on the oxygen regulator for low pressures

By Duane

Nashville, Tennessee

High quality Smith outfit

March 25, 2016

Quality you would expect from Miller/Smith. Used other brands and wanted to give this a try, don't regret. Best price I found online and quick shipping. Would recommend Miller/Smith and Cyberweld.

By Frank

Fast service

December 20, 2015

Fast service, I ordered on Friday and UPS delivered on Saturday

By J-Bird

South Texas

Smith Medium Duty welding and cutting outfit

November 24, 2015

This set is built to last when I received the package, I could not believe how well put together this unit is. Not to mention how good it looks.

Built To Last Looks Good None

By joe

south carolina

quality Smith Torch

October 4, 2015

Great torch as always, around $250.00 less than my local welding supply.

Extremely fast shipping Packaging was not so great. The box was not taped/stapled closed so the parts were scrambled.

By Alexander

Boulder, CO

High Quality Oxy/Acet Welding Outfit for a very reasonable price.

May 12, 2015

This is a great oxyacetylene outfit for most of us. There are heavier ones, but this is far better than most you will find in a high end hardware store. It is truly "Medium Duty". The quality and finish are excellent, and it works better than any other torch I have used (I've used quite a few).

Sensitive and easy adjustment. Safety features included. True chrome plated finish. Every part you need except the tanks and stand for most purposes: welding, cutting, heating, brazing. I cannot think of any downsides. I suppose, if you want a really heavy cutting torch, this might not be the item to buy. But if that is what you want, most people would simply buy a good Plasma Cutter.

By Edward

Kentucky

Great Product

February 6, 2015

Finally, I have found the Great Product I have been looking for. You can tell before even putting this torch kit together that it is a quality product. The look and feel of quality. Love the fact that you don't have to have a wrench every time you want to change heads or tips. Exactly what I have been looking for.
And, it is made in the USA !!!!

None

By wald1dan

North Minnesota

Good tool.

March 12, 2013

Love it. Great American made tool. I need more tip sizes, but will buy them as need arises. I got the 510 fitting for my acetylene regulator and leased a couple tanks from my local suppler. I got medium sized tanks. Hose that came with it is 20ft.

Doesn't require a tool to change tips. and because of this its easy to twist the tip to a different angle of attack. It won't sing me a lullaby and is rather cold in bed.

By Chris

Stanton, NJ

Excellent Basic Oxy-Acetylene Set-Up

March 3, 2012

I use my torch for a wide range of heating, welding, and brazing purposes, mostly in the creation, repair, and restoration of machinery and equipment in a low-volume, non-production environment. I've been extremely happy with the high quality and the excellent fit and finish of the Smith torch and regulators. They are beautifully-made tools, and using them is always a pleasure. Buying the outfit saves money over buying the individual components. I also own a Smith AW1A (Versa-Torch) handle, which I highly recommend.

Well-designed, well-made, easy-to-use, reliable. The kit comes with on-the-torch-handle flashback arrestors, while I'd prefer to have on-the-regulator fa's.
