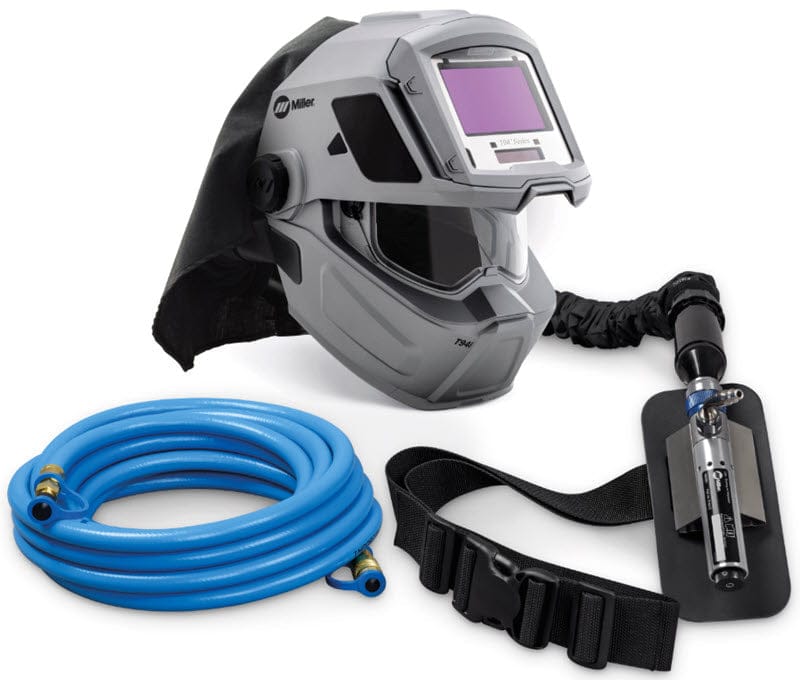

Miller® Supplied Air Respirator with T94i-R™ Auto Dark Welding Helmet & 25 ft. Straight Air Hose 951800
The Miller® SAR (Supplied Air Respirator) with 25 ft. straight air hose and C50 regulator cools temperatures under the hood by up to 50 degrees F. When teamed with the Miller BreatheAir™ filtration system (SOLD SEPARATELY), the Miller SAR supplies Grade D breathing air (CO<10ppm) at a flow rate up to 366 liters per minute.
The Miller SAR comes complete with T94i-R™ welding helmet featuring Miller's ClearLight™ lens technology and Dualtec™ air manifold. The ClearLight™ auto-darkening lens provides higher contrast for brighter, more realistic view in both light and dark states. Patent-pending Dualtec™ air manifold has six-point air distribution system that increases perceived cooling and operator comfort.
The system comes complete with T94i-R helmet assembly, C50 regulator, breathing tube, breathing tube cover, belt assembly flowmeter, tool bag and 25 foot straight 3/8 inch ID air hose with 1/4 inch industrial interchange fittings.
Process
Loose Fitting Supplied Air Respirator (SAR) with Auto-Darkening Welding Helmet
Applications
Manufacturing
Fabrication
Stainless Steel
Flux Cored
Features
Patent-pending Dualtec™ manifold design
with 6-point airflow distribution system
maximizes perceived cooling through
targeted air placement.
C50 air regulator can cool air entering the
helmet up to 50 degrees Fahrenheit,
heightening productivity and relieving heat stress.
360 degree swivel air hose connection alleviates
hose coiling, reducing potential trip hazards.
Lightweight versatile C50 air regulator can be
positioned horizontally or vertically to naturally
align with body movements.
Quick disconnect and swivel breathing tube provides easy adjust ability to accommodate space restraints
Flame-resistant cover protects breathing tube from sparks and abrasion for extended life.
ClearLight™ lens technology optimizes contrast
and clarity in welding and light states - reducing eye strain and operator fatigue
Integrated grinding shield has 44 square inches of viewing area, the best in the industry.
Aluminum heat shield protects the digital lens in high amperage applications
Matte silver shell reflects heat to keep helmet and user cool
Shade 5.0 side windows enhance peripheral
vision, amplifying sense of surroundings.
Chiseled shell design provides optimal
skin coverage while easily accommodating a
Miller® half mask respirator.
Convenient quick release provides easy access for front cover lens changes
Helmet locks in upright position, allowing user
to keep helmet on for non-welding tasks.
Digital Controls With Four Operating Modes -
- Weld Mode™ Shades #8 - 13
- Cut Mode™ Shades #5 - 8
- Grind Mode - Light State #3
- X-Mode™ Shades #8 - 13
X-Mode™ Electromagnetic Arc Sensing for: Sunlight interference outdoors, Low-Amperage TIG, Pipe/Curves, Obstructed Sensors & Hidden/Cavity Welds
Infotrac™ 2.0 allows for monitoring of arc time and arc count
Half-Shade settings allow for precise lens adjustments based on the environment
Simplistic digital lens interface allows for easy adjustment with or without gloves.
External grind controls allows quick switching from weld to grind modes and back without lifting welding hood.
Integrated mag lens holder
Lithium batteries with solar assist; up to 3,000 hours of life
Meets ANSI Z87.1-2015 standard
Improved headgear features additional settings for better fit & comfort
SAR Specs
NOT INTENDED FOR USE IN IDLH ENVIRONMENTS (Immediately Dangerous to Life or Health Environments)
T94-R™ Specs
Comes complete with
T94i™-R Helmet Assembly
C50 Air Regulator
25 Foot Straight 3/8 inch ID Air Hose with 1/4 inch industrial interchange fittings
Breathing Tube Assembly
Flame-resistant Breathing Tube Cover
Padded Belt
Flowmeter
5 Outside Cover Lenses
2 Inside Cover Lenses
2 Side Window Covers
Tool Bag
