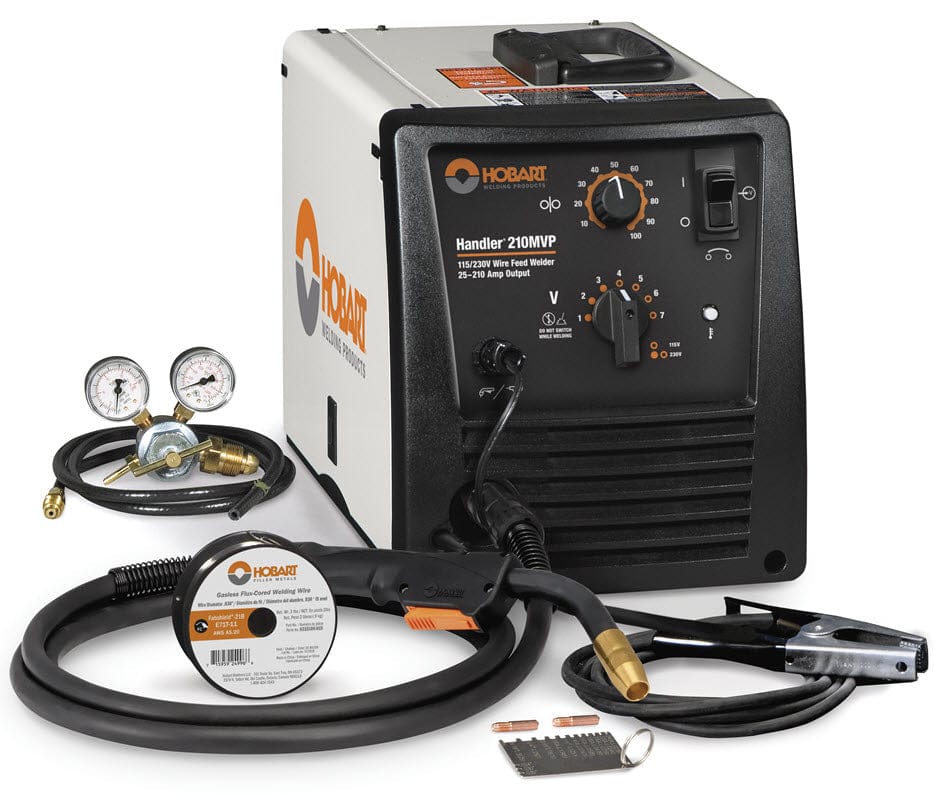

Hobart Handler 210 MVP MIG Welder 500553

Hobart Handler® 210 MVP MIG Welder 500553

The Hobart® Handler® 210 MVP™ MIG Welder 500553 has 210 amps of welding power in a portable case. Powerful output to handle 3/8 in. thick mild steel and enough control for 24 gauge material. The MVP (Multi-Voltage Plug) feature allows the Handler® 210 MVP to operate on either 115 Volt or 230 Volt input power.

The ease of connecting an OPTIONAL direct plug-in SpoolRunner™ spool gun expands the capability for aluminum welding. SpoolRunner™ spool gun can also be used for mild or stainless steel MIG welding applications.

Seven output voltage settings and infinite wire feed speed control make the unit easy to set and adjust for different materials, thicknesses and wires.

The Hobart Handler® 210 MVP MIG welder 500553 is recommended for running the following wires: mild or stainless steel .023-.035 in., flux cored .030-.045 in., aluminum .030-.035 in.



Processes

• MIG (GMAW)
• Flux Cored (FCAW) (gas and self-shielded)

  Applications
  Maintenance/repair
  Auto body
  Farm/ranch
  Construction
  Boat/marine
  Metal art



  Features
• Max 210 amps in small, portable case - Sized for transport of the unit to the job site and the power to weld 3/8 in. mild steel.
• 7 voltage selections - Permit easier fine control of the output parameters for improved arc, less spatter, better bead appearance, excellent penetration and minimal post-weld cleanup.
• Direct plug spool gun circuitry standard - OPTIONAL SpoolRunner 100 spool gun plugs directly into the Handler 210 MVP, no additional adapters or control boxes needed! Just remove the standard MIG gun and replace it with the SpoolRunner 100 spool gun, flip the switch on the center panel from "MIG Gun" to "Spool Gun" and you're ready to go.
• Proven built-in wire feeder with quick-release tension lever - Provides positive feed with adjustable tension. Easy access for threading wire.
• Replaceable, built-in contactor - Eases use and excellent safety feature. Makes the welding wire electrically "cold" when not pulling the trigger.
• Convenient polarity changeover with tip holder - Access makes it quick and easy to change polarity when switching from solid wire to flux cored wire. Includes convenient storage holes for spare tips.
• Quick-change, dual groove drive rolls - Easy to change from one wire diameter to another .023/.025 in. or .030-.035 in.
• Short circuit protection - Protects the unit against current overload.
• Self-resetting thermal overload - Protects power transformer to ensure reliability.
• Solid-state motor protection - Protects wire feed system from overload.
• 5/3/1 Industrial Warranty AND Technical Assistance - Five-year warranty on transformer and stabilizer; three years on electronics (drive motors, PC boards) and one year on MIG gun. Worldwide service network and 1-800-332-3281 Tech Help Line for prompt service and assistance.
• Hobart Exclusive! Multi-voltage plug (MVP™) allows you to connect to common 115 or 230 V power receptacles without the use of any tools - simply choose the plug that fits the receptacle and connect it to the power cord.



  Specs





  Comes complete with:
• Hobart Handler® 210 MVP MIG welding power source
• Durable built-in wire feeder
• MVP plug for 115 volt or 230 volt input power
• Integrated spool gun control circuitry with selector switch for MIG gun or spool gun operation
• built-in gas solenoid valve
• Dual-gauge regulator and gas hose
• 10 ft. HR-100 MIG gun
• 10 ft. work lead with clamp
• Spare .030 in. contact tips
• Sample spool of .030 in. self-shielding flux cored welding wire
• Weld set-up and information chart
• Owner's manual with parts lists, installation, operation, maintenance and MIG welding guidelines
