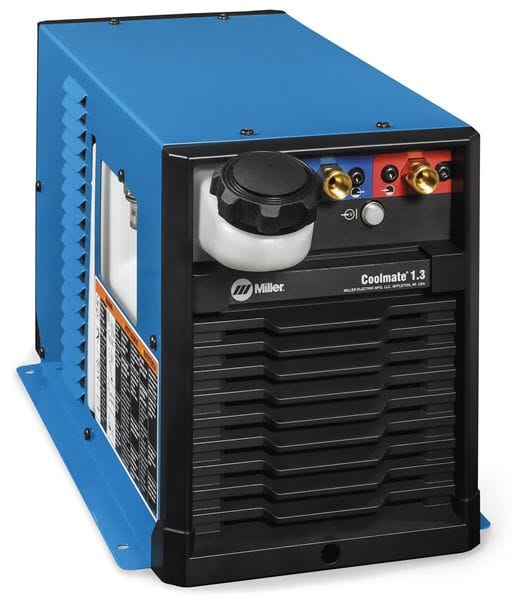

Miller Coolmate™ 1.3 Coolant System 301616
The Miller® Coolmate™ 1.3 is a light industrial 1.3 gallon capacity cooler designed for water-cooled TIG torches up to 280 amps. The Coolmate's design allows stacking and convenient mounting and is specifically designed for use with the Miller Maxstar® 210, Maxstar® 280, Dynasty® 210, Dynasty® 280 and Dynasty® 300 TIG welders.
Direct replacement for the 300972 Coolmate™ 1.3.Applications
Light/Heavy Industrial Applications
Manufacturing
Aerospace
Automotive
Tube mills
Automation
Features
Closed-loop design with radiator
Reduces coolant temperatures and prevents the system from overheating.
Closed-loop design also recirculates the coolant through a fan-cooled heat exchanger.
Rustproof coolant reservoir
Molded of poly ethylene for durability and corrosion resistance.
Standard inlet/outlet torch fittings
Compatible with TIG and MIG torches having standard 5/8-inch 18 left-hand fittings.
10-foot (3 m) power cord with plug
Longer than most power cords in the industry providing the extra length when required.
Compatible with Miller® coolants
Which are ideal for warm and cold weather conditions, while providing HF or corrosion protection.
Designed to integrate
With Dynasty 210/280/300 and Maxstar 210/280 models
Compact horizontal design
Allows stacking and convenient mounting
Weighs 46 pounds (21 kg) dry
Equipped with power-on indicator light
Located on front panel
Filter and coolant filling spout are conveniently located
For easy access
Fluid level sight window
Polyethylene-molded coolant tank and filler spout
Are both rustproof
Factory-set pressure-relief valve (55 psi)
Maintains consistent pressure during operation
Thermally protected 1/4 hp motor
Guards against overheating
Efficient fin-and-tube heat exchanger
Brass-body positive-displacement rotary vane pump
Provides consistent coolant flow and pressure rating with long pump-life expectancy

Comes complete with
115 volt input power cable and plug
CPS adapter for Dynasty and Maxstar TIG welders equipped with CPS (Cooler Power Supply)
