Home // Plasma Cutters // Thermal Dynamics Plasma Cutters // Thermal Dynamics Cutmaster 58 Plasma Cutter w/20 ft Torch 1-5830-1

Thermal Dynamics Cutmaster 58 Plasma Cutter w/20 ft Torch 1-5830-1

Code: 1-5830-1

Cyberweld Price: $1,320.00

Mfg Industrial Price: $2,138.00

(You Save: $818.00)

1 Review

Torch Length:

QTY:

FAST & FREE SHIPPING

Availability: Usually ships the next business day

4 Questions & 4 Answers

Description
Accessories
Specifications
Ask & Answer
Reviews

Thermal Dynamics® Cutmaster® 58 Plasma Cutter with 20 Foot Torch 1-5630-1

The Thermal Dynamics® Cutmaster® 58 plasma cutter with 20 foot torch provides 60 amps of output for outstanding cuts on 1/2 inch steel. It has a maximum sever capacity of 1 1/8 inch and also pierces up to 1/2 inch. The Cutmaster 58 weighs only 43 pounds and comes with the new SL60QD™ 1Torch® which features quick disconnect torch head for convenient, more economical replacement. The SL60QD plasma torch uses standard Thermal Dynamics 1Torch consumables.

The Cutmsater 58 comes set to run on 208/230, single phase power and comes with input power cable. The Cutmaster 58 carries ESAB's 4 year warranty on the plasma cutter and 1 year warranty on the plasma torch.

Applications
Construction
Fabrication
Repair and Maintenance

Features

6.2 kW rated output, 40% Duty Cycle at 60A with automatic multi-voltage detection from 230-460V; built for portability and durability with the integral multi-handle design

20 Foot SL60QD 1Torch quick disconnect with ATC� (Advanced Torch Connector) allowing selective replacement of either the torch handle assembly or the torch leads, using the patented SureLok� technology also available as an RPT Torch

1/2 in. (12 mm) recommended cut capacity with greater than 1-1/8 in. (30 mm) maximum cut and 1/2 in. (12 mm) pierce rating

Industry leading 4-year warranty on power supply and 1-year warranty on torch

1/2 in. (12 mm) recommended cut capacity with greater than 1-1/8 in. (30 mm) maximum sever and 1/2 in. (12 mm) pierce

Pilot arc "On" setting for cutting expanded metal

High-visibility, oversized display with gas optimizer technology and consumables end-of-life indicator

Industry leading 4-year warranty on power supply and 1-year warranty on torch

Comes complete with:

Cutmaster® 58 plasma cutter

SL60QD™ 1Torch® with ATC Quick Disconnect and 20 Foot Lead

Spare Parts Kit

Input Power Cable

20 Foot Work Cable and Clamp

Operating Manual

Filter Wrench.

ESAB�s industry-leading service and support means that if you do need help, you�ll be protected by the most comprehensive warranty in the business.

This item ships Free via standard ground shipping within contiguous U.S.

Download Cutmaster 58 Spec Sheet (Requires Adobe Acrobat Reader)
Download Cutmaster 58 Spec Sheet (Requires Adobe Acrobat Reader)

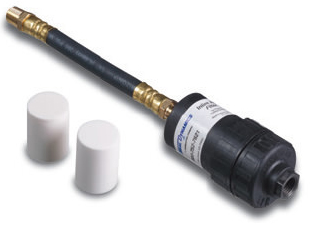

	Thermal Dynamics Plasma Air Filter Kit 7-7507 Code: 7-7507 Thermal Dynamics® Plasma Air Filter Kit 7-7507 Mfg Industrial Price: $177.00Cyberweld Price: $154.90 3 Reviews Availability: Usually ships the next business day

	Thermal Dynamics Plasma 2 Stage Air Filter Kit 9-9387 Code: 9-9387 Thermal Dynamics® Plasma 2 Stage Air Filter Kit 9-9387 Mfg Industrial Price: $246.00Cyberweld Price: $215.25 4 Reviews Availability: Usually ships the next business day

	Thermal Dynamics Radius/Roller Guide Kit 7-7501 Code: 7-7501 Thermal Dynamics® Radius/Roller Guide Kit 7-7501 Mfg Industrial Price: $91.15Cyberweld Price: $85.45 11 Reviews Availability: Usually ships the next business day Bushing for Cutmaster 42:

	Thermal Dynamics Plasma Straight Line Cutting Guide 7-8911 Code: 7-8911 Thermal Dynamics® Plasma Straight Line Cutting Guide 7-8911 Mfg Industrial Price: $365.00Cyberweld Price: $342.20 2 Reviews Availability: Usually ships the next business day Bushing for Cutmaster 42:

	Thermal Dynamics Plasma Deluxe Cutting Guide Kit 7-8910 Code: 7-8910 Thermal Dynamics® Plasma Deluxe Cutting Guide Kit 7-8910 Mfg Industrial Price: $387.00Cyberweld Price: $362.85 2 Reviews Availability: Usually ships the next business day Bushing for Cutmaster 42:

	Tillman Leather Torch Leads Cover 12.5 Foot 581125 Code: 581125 Tillman™ durable, snap-up leather torch leads cover, 12.5', extends the life of your plasma, MIG or TIG torch. Mfg Industrial Price: $55.30Cyberweld Price: $42.10 13 Reviews Availability: Usually ships the next business day Length:

	1 Torch SL60 Plasma Torch & Replacement Parts (Cutmaster Series) Genuine Thermal Dynamics® replacement parts for your SL60 1Torch plasma torch. Suitable for Cutmaster® 38 & 39, Cutmaster® 42, Cutmaster® 51 & 52, Cutmaster® 81 & 82 plasma cutters equipped with the SL60 Thermal Dynamics® 1Torch.

4 Questions & 4 Answers

Ask a Question

Bill

from Colorado asked:

June 8, 2019

Where are thermal dynamics manufactured?

1 Answer

Thermal Dynamics� Cutmaster 58 Plasma Cutter with 20 Foot Torch 1-5630-1 is made in Mexico.

Submitted by: Cyberweld on June 11, 2019

Answer

Dennis H

from AZ asked:

May 8, 2019

What accessory part numbers are needed to gouge cut with the cutmaster 58

1 Answer

To gouge with the Cutmaster 58 you would need:

Thermal Dynamics Plasma Shield Cup Maximum Life 9-8237

Thermal Dynamics Plasma Gouging Shield Cap 9-8241

Thermal Dynamics Plasma Gouge Tip A 9-8225�Tip "A"�- 40amps max output, shallow depth, narrow width.

Thermal Dynamics Plasma Gouge Tip 9-8225�Tip "B"�- 40-100 amps output, deep depth, narrow width.

Submitted by: Cyberweld on May 9, 2019

Answer

paul

from Massachusetts asked:

April 25, 2019

Does this Cutmaster 58 have the "pilot arc" feature ?

1 Answer

Thermal Dynamics Cutmaster� 58 Plasma Cutter with 20 Foot Torch 1-5630-1 does have a pilot arc.

Submitted by: Cyberweld on May 1, 2019

Answer

paul

from Massachusetts asked:

April 24, 2019

Does this unit have the same power as the 60i ?

1 Answer

Thermal Dynamics Cutmaster 58 Plasma Cutter has the same power as the 60i.� The only difference between the two machines is that the 58 can run on single or 3 phase.� While the 60i would have separate models for use on single or three phase.

Submitted by: Cyberweld on April 30, 2019

Answer

Write a Review

Review Summary

Thermal Dynamics Cutmaster 58 Plasma Cutter w/20 ft Torch 1-5830-1 $1,320.00

5.0

1 Reviews

100% (1)

0% (0)

100% Recommend this product (1 of 1 responses)

By dan

UP of Mi

April 29, 2019

First time user on a larger project with warm fuzzies :)

After much communication and procrastination, I ordered the Cutmaster 58 and FedEx delivered as advertised. After studying the manual, I set up and turned loose on a long-planned diet of metal removal on my 45 Studebaker US6.
I noted right away a Pilot, then MAIN arc is the sequence, and I am here to say this technology is just amazing. Gawd! I was cutting 1/2 steel that was WELL welded on DECADES ago. While I'm still learning, I found a 40A setting worked WELL. Worthy of note: the tool will reflect any wiggle/unsteadiness in the cut product; as long as you're steady-handed, cuts are perfect. I still have gouge cutting to do, but I am well on my way here..
Observations: I do need to add IF you touch the surface you're cutting a minuscule deposit will stick to the copper tip and directly interfere with straight-clean thru cuts. So MAINTAIN a GAP from the surface being cut. I picked up more electrodes and tips today so I can continue. Also on initial start, the unit mimics a battery charger... then spools up to replicate the sound of an older welder as it decimates anything in its path. Accolades: The air/purge does is a good idea. The torch is COMFY to hold, the Manual is priceless; well-written and very useful. I'd recommend to acquire some sort of wheeled stand to move this dude around a shop.
So, WELL DONE ESAB and a special Thank You to Amber @ CyberWeld!

ProsLightweight. Durable frame protecting the unit. Generous, GOOD quality cables! Not cheap plastic! This is a CRAFTSMAN's tool... not a cheap attempt; one of those GOOOOOD ones. Thermal Arc DOES answer their phones! Large Plus!

ConsThere is a learning curve. Read and understand the manual. Call Thermal Arc!
