Millermatic® 141 MIG Welder with Auto-Set, Running Gear/Cylinder Rack 951601
The Millermatic® 141 MIG welder with running gear and cylinder rack is a 140 amp portable MIG welder that runs on standard 120 volt household current. The 141 features Auto-Set, which eliminates the guesswork of setting voltage and wire feed speed for your MIG welding application. Simply select the material thickness and wire diameter while the welder is in the Auto-Set mode, and you are ready to weld. The Auto-Set control
automatically sets your welder to the proper
parameters. It is available when welding mild
steel with solid wire and only works with .024
and .030 solid wires and C25 shielding gas
(75% Argon, 25% CO2).
Manual MIG welding control is also available for those welders who wish to fine tune their welding arc. Manual welding mode must also be used when MIG welding aluminum, stainless steel or for flux-cored welding. The parameter door chart lists voltage and wire feed speed settings options.
The new Millermatic running gear and cylinder rack is made of heavy duty construction. It has eight inch rubber rear wheels for smooth running over most shop surfaces. It comes complete with front handles, cable holders and plastic consumables storage box. The cylinder rack will hold a single gas cylinder up to 7 inches in diameter and 65 pounds in weight.
Processes
MIG (GMAW)
Flux Cored (FCAW) (gas and self-shielded)
Applications
Light Industrial Applications
Light Fabrication
Maintenance and Repair
Auto Body
Farm/Home
Features:
Auto-Set™ automatically provides the right
settings to weld mild steel while
infinite voltage
control
allows the flexibility to manually set
your own parameters.
Set the wire diameter, a blue light shows
Auto-Set is activated
Dial in the thickness of what you are welding
Start welding with the exact parameters
you need!
Angled cast-aluminum drive system
with
calibrated tension knob creates consistent feeding
and easy setup for up to 15-foot MIG guns.
Quick Select™ drive roll
makes setup quicker
by offering three grooves, two for different
size solid wire and a third for flux-cored welding wire.
Auto Spoolgun Detect™ automatically detects
when a MIG gun or spool gun is connected
eliminating the need for a switch.
Smooth-Start™ provides a smooth, spatter-free
start. It is the best-starting machine in the small
MIG machine category.
Thermal overload protection shuts down unit
and activates the
over temperature light
if
airflow is blocked or duty cycle is exceeded.
Automatically resets when unit cools.
Uses 4 inch or 8 inch (102 or 203 mm) spools
and can be set up to weld with .024 to .030 inch
(0.6 to 0.8 mm) solid wire and .030 to .035 inch
(0.8 to 0.9 mm) flux-cored wire.

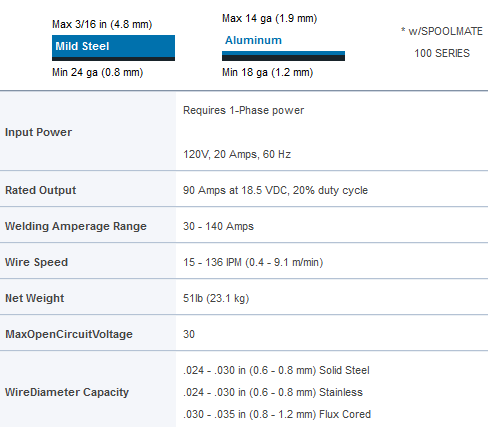

Specs
Comes complete with:
Millermatic® 141 MIG Welding Power source
6.5-ft. (2 m) power cord with plug
10-ft. (3 m), M-100 MIG gun and cable
assembly
10-ft. (3 m) work cable with clamp
Argon - Argon/CO2 mix flow gauge regulator
with gas hose
Hobart® spool of .030-in. (0.8 mm)
solid wire
Two contact tips for .030-in. (0.8 mm) wire
Quick Select® drive rolls for .024-in.
(0.6 mm) or .030/.035-in. (0.8/0.9 mm)
solid wire, and .030/.035-in.
(0.8/0.9 mm) flux-cored wire
Material thickness gauge
#229 895
Velcro cord wraps
Running gear/cylnder rack #301239
FREE Miller® .030 MIG Consumables Kit.
FREE Hobart® Fabshield® 21B 2 lb. spool .030 E71T-11 flux-cored welding wire.
Get a FREE Miller® .030 MIG Consumables Kit ($28.75 MSRP Value) PLUS a FREE 2 lb. spool of Hobart® Fabshield® 21B .030 E71T-11 flux-cored welding wire ($20.50 MSRP Value) with purchase of a Millermatic® 141 MIG welder. Expires 12/31/18. (No substitutions allowed.)Genuine Miller .030 MIG Consumable Kit for your Miller M-10, M-15 or M-100 Series MIG gun.
Comes complete with
10 .030 contact tips
1 MIG nozzle
1 nozzle adapter
Storage box
Fabshield® 21B Features
E71T11 Self-Shielded Wire - no shielding gas needed
.030 wire diameter
Excellent for general purpose carbon steel welding applications.
Works well on galvanized steel.
All-position, single or multiple pass
PLUS get up to $200 in additional Build With Blue™ Cash Rebates when you purchase a Millermatic® 141 MIG welder AND Miller® or Hobart® branded welding accessories or filler metals. Additional accessories MUST be purchased at the same time as the welder. Download Build With Blue™ Rebate Submission Instructions HERE. All rebate forms MUST be submitted electronically to Miller no later than January 15, 2019. Offer expires 12/31/18.
This item ships Free via standard ground shipping within contiguous U.S.
| Code: 301262 The Millermatic® protective cover protects the finish of your Millermatic® 141, 190 or 211 MIG welder. Also suitable for Multimatic™ 215 multi-process welders. Mfg Industrial Price: $55.00  Cyberweld Price: $49.50
Availability: Usually ships the next business day | |
|
| Code: 300371 Miller Spoolmate™ 100 MIG Spoolgun 300371 Mfg Industrial Price: $319.00 Cyberweld Price: $276.00
Availability: Usually ships the next business day | |
|
| Code: 234607 Genuine Miller .024 MIG Consumable Kit for your Miller M-Series MIG gun. Suitable for use with Millermatic MIG welders. Mfg Industrial Price: $29.35 Cyberweld Price: $27.39
Availability: Usually ships the next business day
Wire Diameter:
| |
|
| Code: 234608 Genuine Miller .030 MIG Consumable Kit for your Miller M-Series MIG gun. Suitable for use with smaller Millermatic MIG welders. Mfg Industrial Price: $28.75 Cyberweld Price: $26.89
Availability: Usually ships the next business day
Wire Diameter:
| |
|
| Code: 234609 Genuine Miller .035 MIG Consumable Kit for your Miller M-Series MIG gun. Suitable for use with smaller Millermatic MIG welders. Mfg Industrial Price: $28.55 Cyberweld Price: $26.69
Availability: Usually ships the next business day
Wire Diameter:
| |
|
Toben D
from Denver, Colorado asked:
August 24, 2017
Can you use pre-mixed gas i stead of two separate tanks?
1 Answer
Millermatic 141 MIG Welder With Cart 951601 will accept a single bottle of mixed gas instead of two separate cylinders.
Customer Service
on September 26, 2017
Brian C
from Rapid city asked:
July 20, 2017
What is warranty
1 Answer
Roddy Boudreaux
from Baton Rouge, la. asked:
October 11, 2016
Can the door of the welder be opened while on the cart?
1 Answer
You can open the door on the Millermatic 141 MIG Welder With Cart 951601while it is on the cart.
Customer Service
on October 12, 2016
bill gibson
from dyer, In. asked:
May 15, 2016
I don't want the cart. Now how much is it
1 Answer
The Millermatic 141 MIG Welder 907612 without the cart is priced at $755.00
Customer Service
on May 16, 2016
Gene
from springfield, IL asked:
July 4, 2015
what is the warranty on this machine?
1 Answer
The Millermatic 141 MIG Welder With Cart 951601 is warrantied for 3 years parts and labor. The main power rectifier and parts are warrantied for 5 years. the Mig gun is warrantied for 90 days
Customer Service
on July 6, 2015
Gabe
from FL asked:
January 10, 2015
How I can order with 12 ft MIG gun and cable assembly?
Can I keep the cover on while I will weld?
Thanks.
Gabe
1 Answer
The Millermatic 141 MIG Welder With Cart 951601 comes with the Miller M-100 mig gun which is 10 ft long. Miller generally does not recommend installing a longer gun because of the extra strain it will put on the wire drive motor. That said if you need a 12ft gun you can order and install a Miller 249040 M-150 mig gun. This gun is priced at $150.95. You should not operate the unit with the cover on as it will cause overheating problems.
Customer Service
on January 12, 2015
Ed Tobin
from Chantilly, VA asked:
January 8, 2015
Do I have to use gas to weld with this machine, or can I use flux core wireing?
Thanks, ED
1 Answer
Millermatic 141 MIG Welder With Cart 951601 can be used for gas less flux cored welding for welding with a shielding and solid wire
Customer Service
on January 9, 2015
