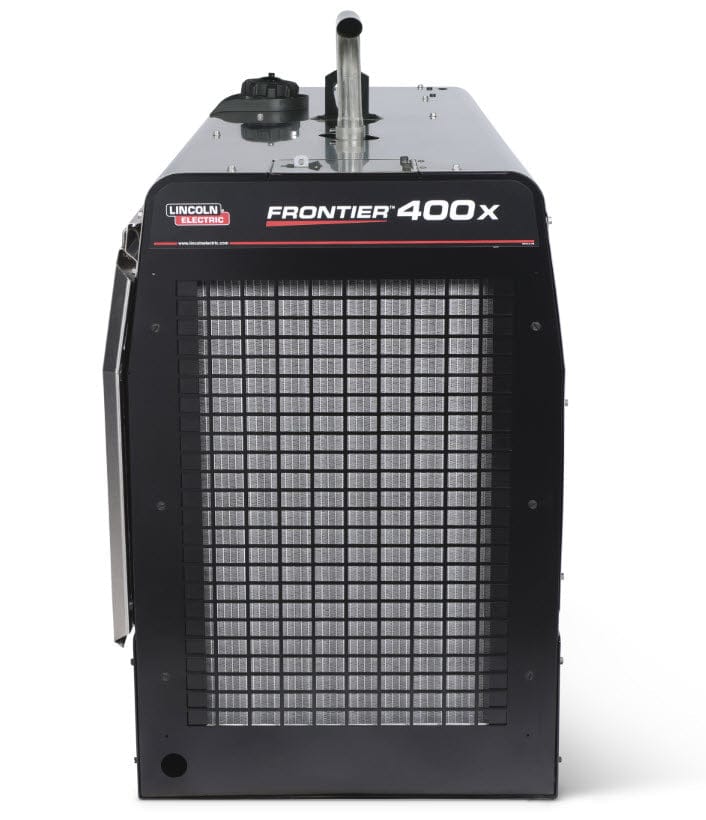

Lincoln® Frontier® 400X (Kubota®) Diesel Engine Welder K3484-2
The Lincoln® Frontier® 400X (Kubota®) is an advanced 400 amp, multi-process diesel engine welder that features state-of-the-art CrossLinc® technology. Built-in CrossLinc circuitry means that the Frontier 400X communicates with a Lincoln CrossLinc wire feeder or CrossLinc remote control directly through your welding leads. Full remote amperage and voltage control is achieved without the use of a separate remote-control cable. This completely eliminates the need to go back to the welding machine to make output amperage or voltage adjustments. Other advanced features include 7-inch digital user interface with memory recall, DC Pulsed TIG, and STT® MIG (when paired with an OPTIONAL Activ8X® Pipe™ wire feeder).
The Frontier 400X comes standard with stainless steel side panels and roof, to extend the life and durability of the welder. Six different welding modes allow you to quickly switch between stick, touch start DC TIG, MIG, flux-cored and carbon arc gouging. Best-in-class arc characteristics provide outstanding welding results, time after time.
The Frontier 400X produces up to 11,500 peak watts of single-phase AC auxiliary power AND up to 12,500 peak watts of three-phase AC auxiliary power. The Kubota® D1503-M three-cylinder, naturally aspirated diesel engine is EPA Tier 4F compliant and produces 24.8 horsepower at 1,800 RPM. Auto Start/Stop feature saves fuel by shutting the engine down after a programmable period of welding inactivity. The engine automatically re-starts when the machine senses you are ready to strike a welding arc.
Processes
Stick (SMAW)
MIG (GMAW)
Flux-cored (FCAW)
DC TIG (GTAW)
Air carbon arc (CAC-A) Rated: 1/4-inch (6.5 mm) carbons
Applications Maintenance & Repair
Pipeline
Power Generation
Process Industries
Structural
Features:
Full Job-Site Versatility
Offers up to 400 amps (IEC rated at 325 amps) of welding current to tackle numerous welding and carbon arc gouging applications.
Includes six optimized CC and CV modes, plus advanced modes to support pulsed TIG, pulsed MIG, STT®, and mechanized equipment.
All Day Auxiliary Power
Provides up to 11 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.
Provides up to 10 kW of continuous single-phase power to run tools and lights.
Next-Gen Display
Bright, durable 7 in. digital user interface for unmatched machine control.
Save and recall memories, receive maintenance reminders, and enable PIN authorization.
CrossLinc® Enabled
Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter.
Built-in True Voltage Technology™ (TVT) compensates for voltage drop to further improve operations.
Run Longer and More Efficiently
Weld longer with a class-leading 20 US gal. (75.7 L) fuel tank and integrated Auto-Stop/Start feature, designed to prevent excessive idling to help save on fuel costs, avoid unnecessary engine wear, and extend time between required maintenance.
Field-Proven Diesel Engine
Powered by a 24.8 hp, naturally aspirated Kubota® diesel engine to provide extremely smooth and quiet operation while meeting EPA Tier 4 Final compliance.
Trusted Reliability
Engineered tough to withstand harsh conditions and backed by trusted industry support and 3-year warranty.
