Lincoln Vantage 549X (Deutz) Diesel Welder K3534-2
Code: K3534-2
Cyberweld Price $32,369.00
Cyberweld Price $32,369.00
Mfg Industrial Price: $36,710.00
(You Save $4,341.00)
Finance Options:
Couldn't load pickup availability
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
FAST & FREE SHIPPING On All Orders Over $99

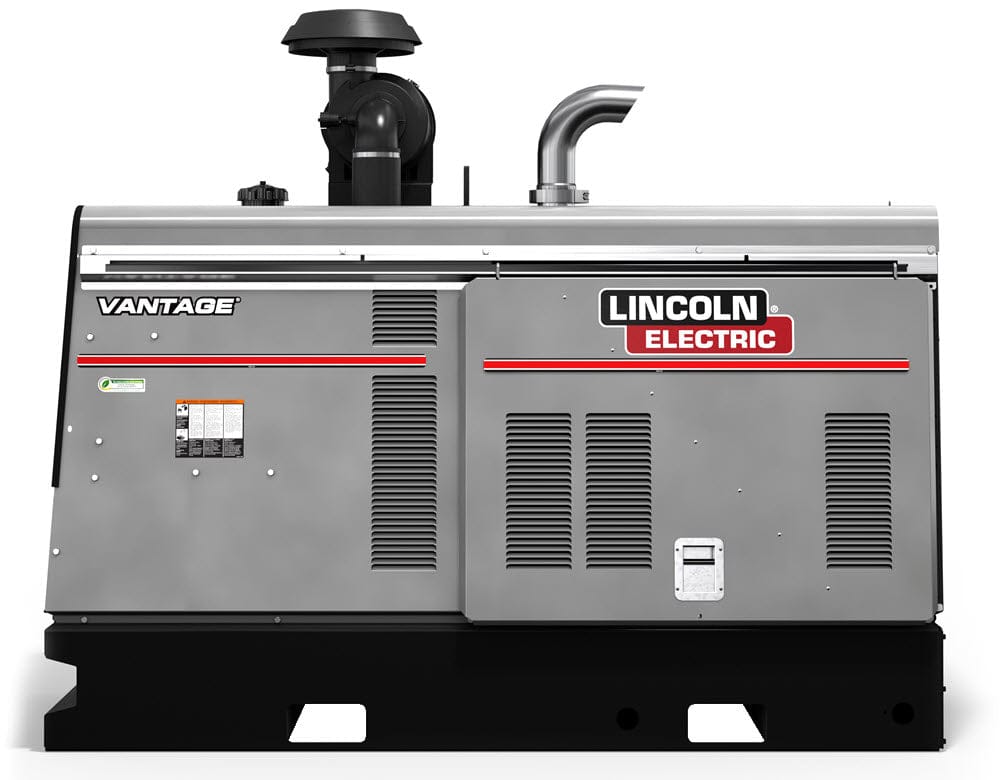

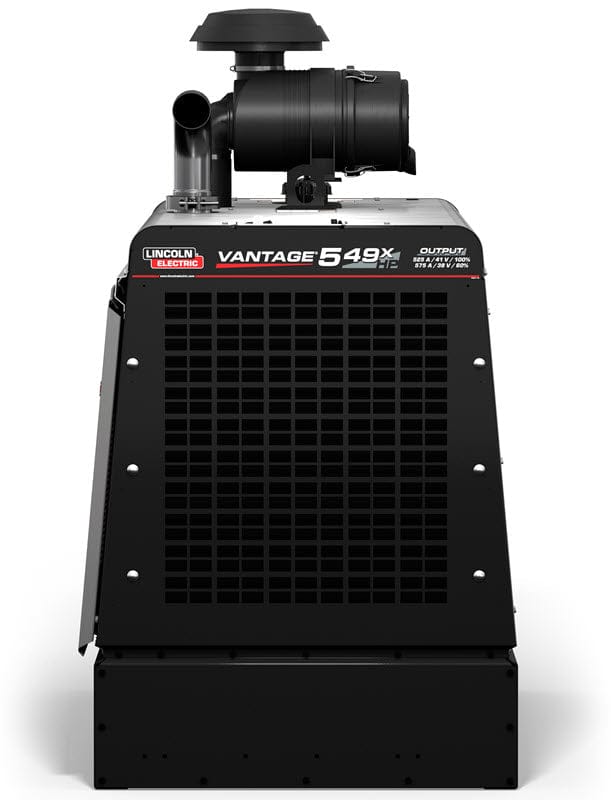

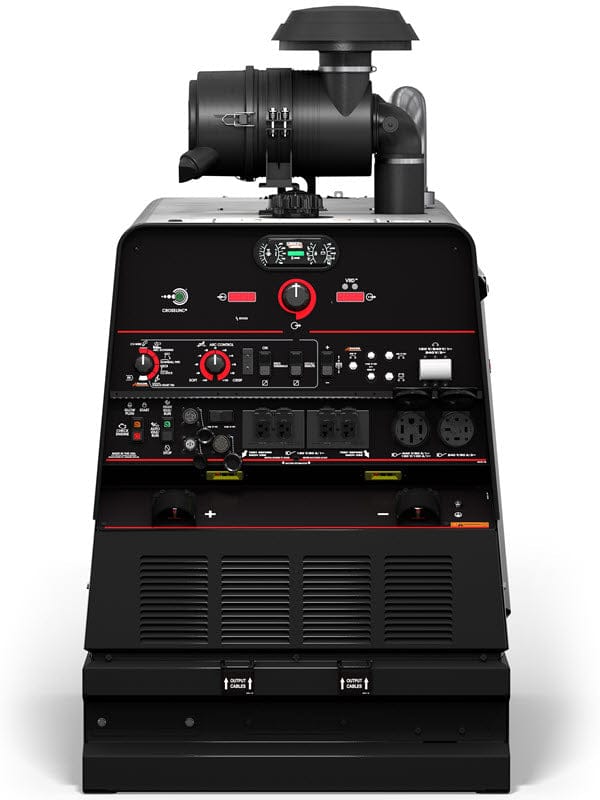

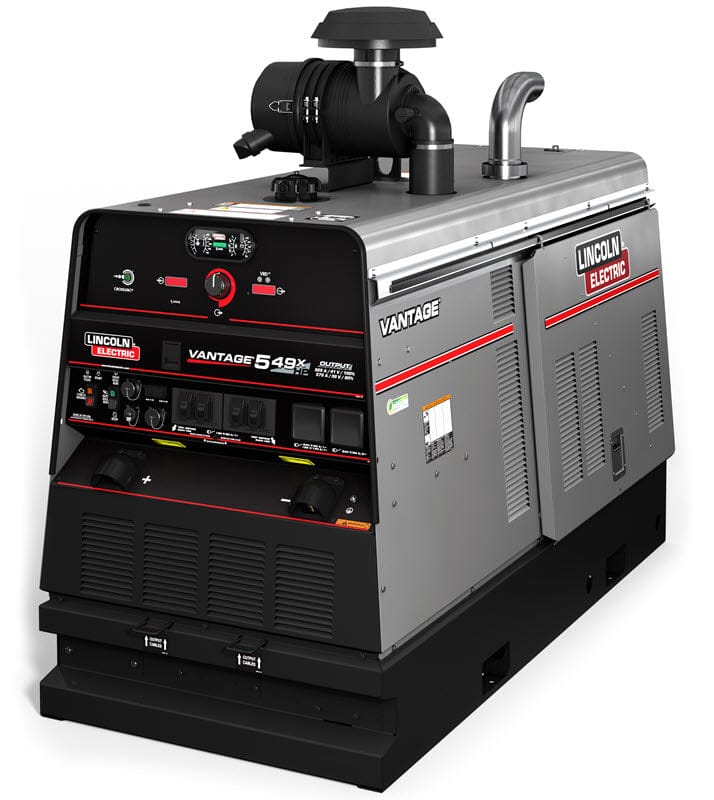

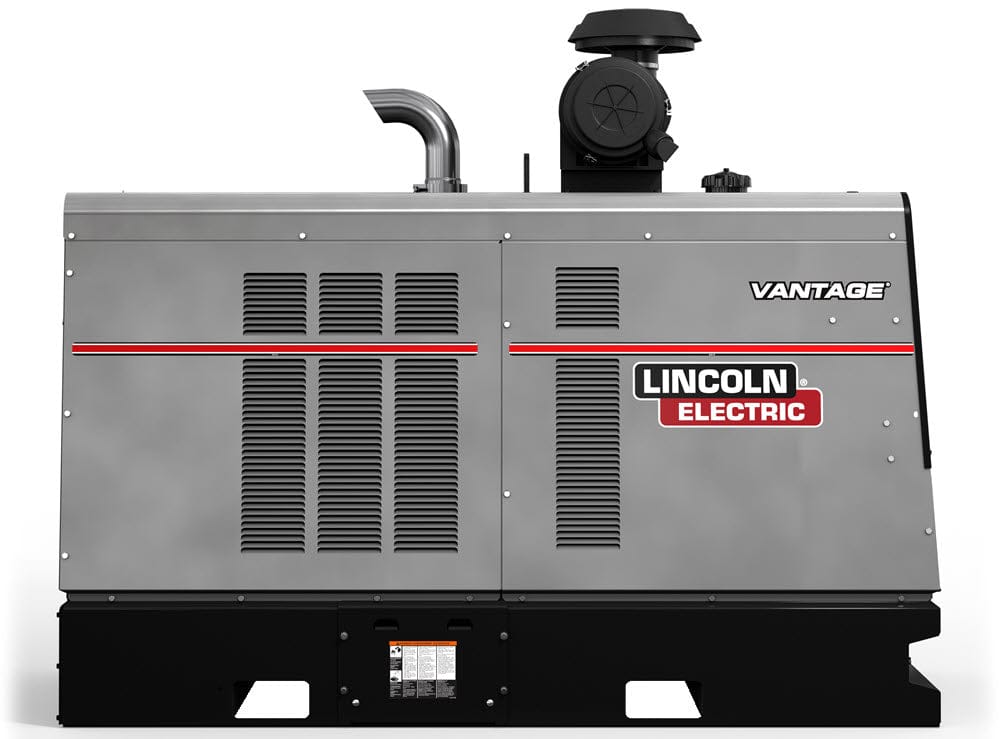

Lincoln® Vantage® 549X (Deutz®) Diesel Welder K3534-2
The Lincoln® Vantage® 549X is a 575 amp, multi-process diesel engine welder that is equipped with a Deutz® 49.4 HP turbo-charged TD2.9L4 diesel engine. The standard stainless steel side panels and roof extend the life and durability of the Vantage 549X welder. Five different welding modes allow you to quickly switch between stick, touch start DC TIG, MIG, flux-cored and carbon arc gouging (with up to 3/8" diameter carbons).
Advanced technology built into the Vantage 549X includes state-of-the-art CrossLinc®. Built-in CrossLinc circuitry means that the Vantage 549X communicates with a Lincoln CrossLinc wire feeder or CrossLinc remote control directly through your welding leads. Full remote amperage and voltage control is achieved without the use of a separate remote-control cable. This completely eliminates the need to go back to the welding machine to make output amperage or voltage adjustments. Other advanced features include pulsed MIG welding (when paired with the proper OPTIONAL Lincoln X-Series wire feeder).
The Vantage 549X generates 11,000 continuous watts of 120/240 volt single-phase AC auxiliary power AND 19,000 continuous watts of 240 volt three-phase AC auxiliary power. The Deutz® TD2.9L4 four-cylinder turbo-charged diesel engine is EPA Tier 4F compliant and produces 49.4 horsepower at 1,800 RPM.
Processes
Applications
Maintenance & Repair
Pipeline
Power Generation
Shipbuilding
Structural
Features:
Offers up to 575 amps (IEC rated at 525 amps) of welding current to tackle numerous welding and carbon arc gouging applications. Select one of five basic process modes including CC-Stick, Downhill Pipe, DC Touch Start TIG®, CV-Wire, or Arc Gouging mode, which maximizes output for up to 3/8 in. (9.5 mm) carbon rods.
Provides up to 19 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.
Experience premium arc performance with minimized spatter for stick or pipe welding as well as enhanced gouging performance that prevents the engine from stalling, resulting in smooth material removal.
Utilize customized modes for stainless, aluminum, and steel as well as advanced SAW and orbital pipe modes. Features pulse welding capability for better arc control in out-of-position work and low heat input for critical welds.
Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter.
Compensates for voltage drop to further improve operations.
Engineered tough and field proven for ruggedness and durability to meet the most challenging job site needs and harshest environments.
Powered by a 49.4 hp, turbocharged Deutz® diesel engine. Runs smooth and quiet while meeting EPA Tier 4 Final compliance.
Lincoln Vantage 549X Specs
Lincoln Activ8X Pipe Wire Feeder & Magnum PRO Curve HDE 250 One Pak
Regular price
$8,512.00
Lowest Internet Price
Mfg Industrial Price: $9,074.00
$8,512.00
You Save $562.00
The Lincoln® Activ8X® Pipe™ Wire Feeder with Magnum® PRO Curve HDE 250 MIG Gun One-Pak® is an advanced field MIG wire feeder package that has pulsed MIG and STT® (Surface Tension Transfer®) capabilities.
Lincoln Activ8X Wire Feeder & Magnum PRO Curve 300 One Pak K3564-1
Regular price
$3,401.00
Lowest Internet Price
Mfg Industrial Price: $3,807.00
$3,401.00
You Save $406.00
Lincoln® Activ8X® Wire Feeder with TVT™ and Magnum® PRO Curve MIG Gun is a voltage sensing MIG wire feeder package that has full remote voltage and amperage control without the use of a remote-control cable.
Lincoln LN-25X Wire Feeder & Magnum PRO Curve 300 One Pak K4266-1
Regular price
$4,676.00
Lowest Internet Price
Mfg Industrial Price: $5,303.00
$4,676.00
You Save $627.00
Lincoln® LN-25X® Wire Feeder w/CrossLinc® and Magnum® PRO Curve 300 MIG gun has full remote voltage and amperage control without the use of a remote-control cable.
Lincoln LN-25X Wire Feeder & K126 PRO 5/64-1/16 One Pak K4266-2
Regular price
$4,924.00
Lowest Internet Price
Mfg Industrial Price: $5,584.00
$4,924.00
You Save $660.00
Lincoln® LN-25X® Wire Feeder with CrossLinc® and K126® PRO Innershield® gun has full remote voltage and amperage control without the use of a remote-control cable.
Lincoln CrossLinc Remote K4345-1
Regular price
$1,395.00
Lowest Internet Price
Mfg Industrial Price: $1,806.78
$1,395.00
You Save $411.78
Lincoln® CrossLinc™ Remote allows welders to adjust welding output remotely at the arc, including current for Stick and TIG welding and voltage for wire welding processes.
Lincoln CoreLinc Wireless Remote Control Kit K5728-1
Regular price
$1,081.00
Lowest Internet Price
Mfg Industrial Price: $1,199.00
$1,081.00
You Save $118.00
Genuine Lincoln® CoreLinc™ Wireless Remote K5728-1 allows wireless remote amperage/voltage, welding output on/off control of your Lincoln Flextec® X series, Frontier® or Vantage® welder ONLY.

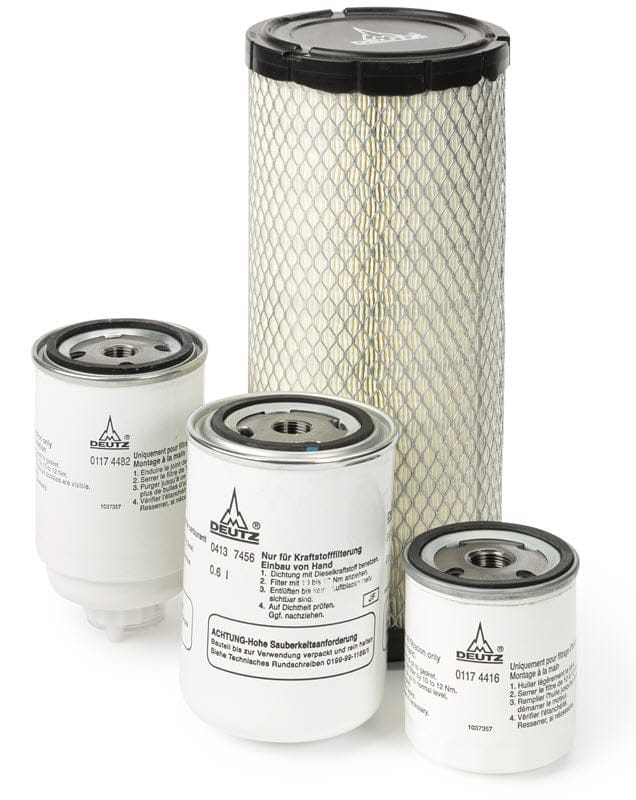

Deutz TD2.9L4 (Vantage) Diesel Engine Service Kit K3558-5
