Miller Big Blue 800 Duo Air Pak (Deutz) Diesel Welder w/WIC & ArcReach

Miller® Big Blue® 800 Duo Air Pak™ (Deutz®) Diesel Welder with Wireless Interface Control (WIC) & ArcReach® 907752003

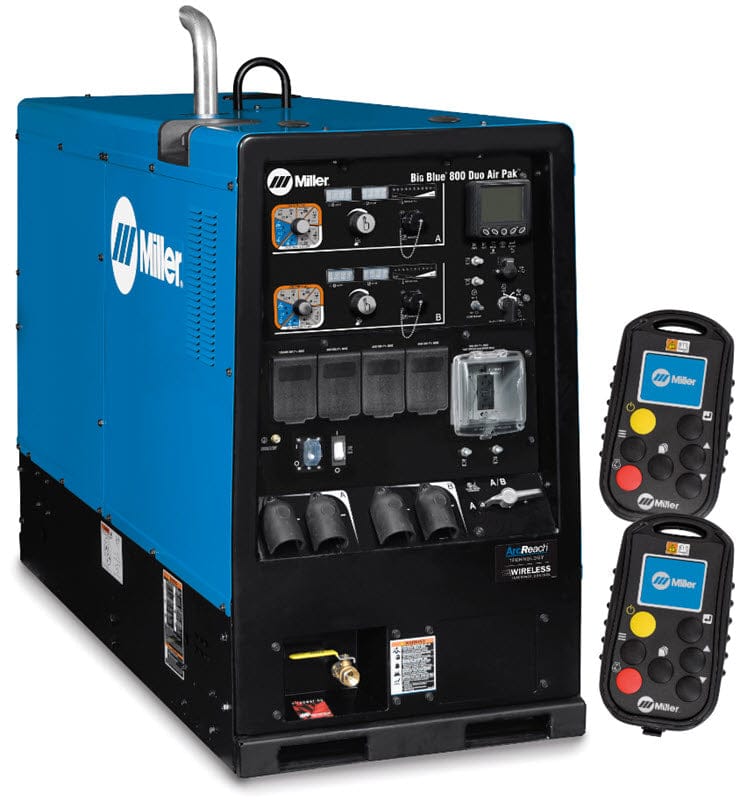

The Miller® Big Blue® 800 Duo Air Pak™ with Wireless Interface Control (WIC) & ArcReach® is an 800 amp multi-operator, multi-process welder and 20,000 watt AC generator that is equipped with an Ingersoll Rand® 60 cfm air compressor. The compressor has an independent on/off switch, which allows it to run only when needed - saving fuel and reducing maintenance costs. The 65.7 HP Deutz® TD2.9 L4 diesel engine features a Diesel Oxidation Catalyst (DOC) that requires no exhaust after-treatment maintenance; providing the cleanest, greenest exhaust without the hassle.

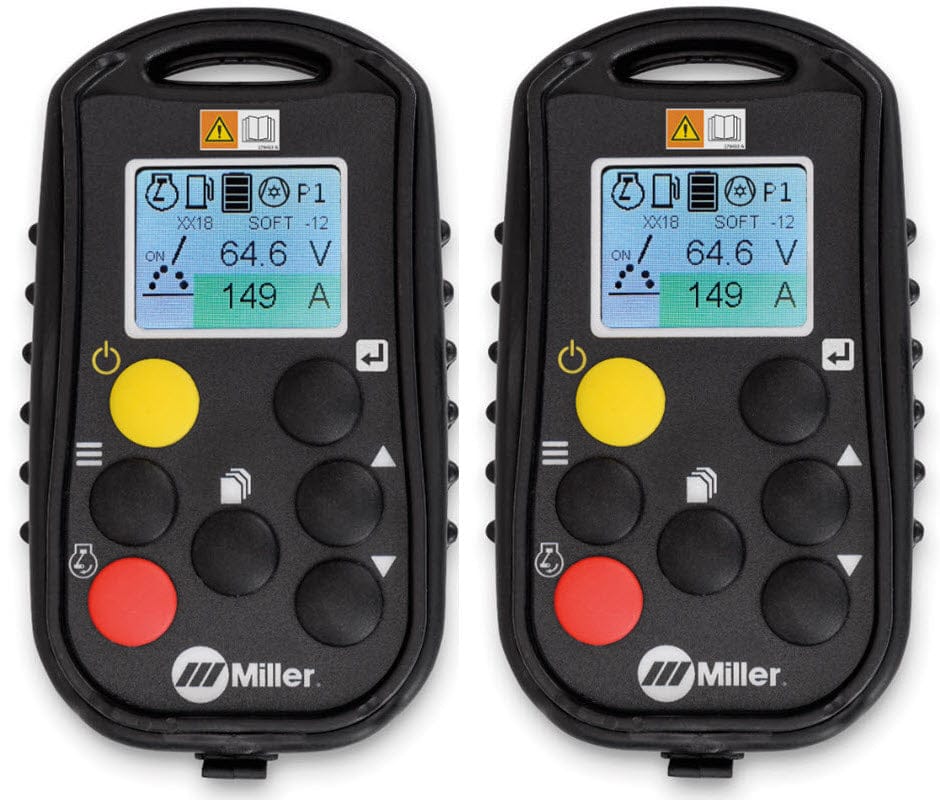

The Wireless Interface Controls are handheld units that control all weld parameters, store custom weld settings, display real time engine status and service intervals, and acts as a remote engine start/stop. Wireless interface control saves fuel, reduces jobsite noise, and enhances worker safety and productivity by reducing trips back and forth to the welder. The ArcReach feature allows the Big Blue to communicate with a remote Miller® ArcReach® wire feeder or ArcReach® Stick/TIG remote without the use of a remote control cable. The secret to this technology is built-in circuitry in both the Big Blue 800 Duo Air Pak welder and Miller ArcReach wire feeder/remote control that passes remote control signals through the welding leads, eliminating the need for costly remote control cables. ArcReach remote control distance is limited only by the length of your welding cable leads. ArcReach allows your Stick, TIG, MIG or Flux-Cored welding operation to take place further away from the welding power source and reduces downtime and costs by giving the operator full remote control capabilities at the site of the weld without using expensive remote control cables. The Big Blue 800 Duo Air Pak MUST be paired with a Miller ArcReach feeder or ArcReach Stick/TIG remote to get the full benefits of this feature.

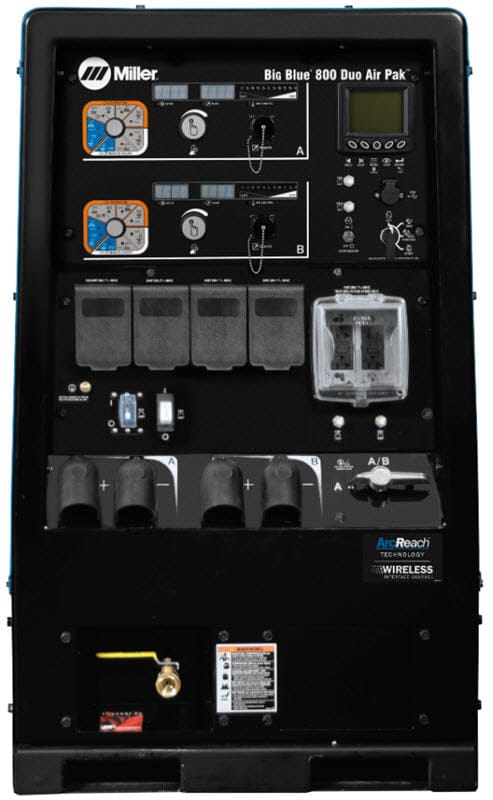

The Big Blue 800 Duo Air Pak supplies two welding arcs of up to 400 amps each.  A simple paralleling switch on the front panel allows the welder to operate with a single arc of up to 800 amps.  This welding machine is capable of stick, MIG, Pulsed-MIG, flux-cored, Lift-Arc™ DC TIG and submerged arc welding processes.  The AC generator supplies 27,000 peak watts and 20,000 continuous watts of 3-phase auxiliary power. Up to 15,000 peak watts and 12,000 watts of continuous single-phase auxiliary power is also available for operating tools, lights and other jobsite equipment.  The BB 800 Duo Air Pak is capable of carbon arc gouging using up to 1/2" diameter carbons.

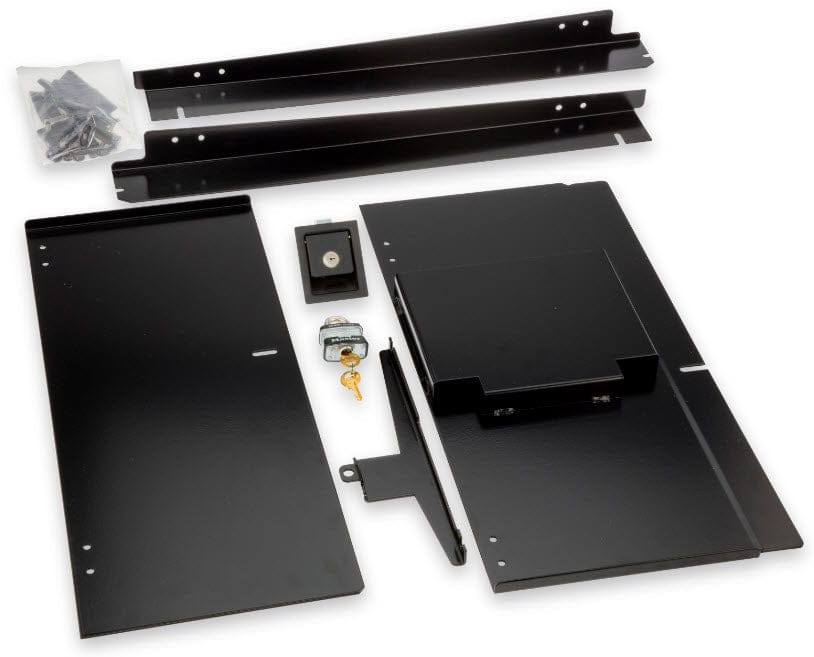

The Big Blue 800 Duo Air Pak is built for the harshest welding environments. It comes with a 120 volt block heater and Vandalism Lockout Kit as standard equipment.  The heavy duty powder coat with zinc-rich primer protects the welder's sheet metal from rust and corrosion.   The Deutz® TD2.9 L4 liquid-cooled, turbo-charged, four-cylinder diesel engine is EPA Tier 4F compliant..



Processes

Electronic engine display
Simultaneously displays fuel level, engine hours, coolant temperature, oil pressure, battery volts and engine rpm. Also tracks oil change intervals and displays engine diagnostics for quick and easy servicing.

Superior Arc Performance
Four preset DIG settings (Stick)
Hot Start™ (Stick)
Lift-Arc™ DC TIG
MIG/FCAW arc performance

Standard features include:
Adjustable Hot Start™
Output contactor control
Automatic idle
120-volt block heater
