Miller Multimatic™ 215 Multiprocess Welder 907693
The Miller Multimatic™ 215 multi-process welder is a 230 amp, portable welder that is capable of MIG, Stick and DC TIG welding. It comes standard with a color LCD screen and features Miller's Auto-Set™ Elite. Auto-Set™ Elite sets MIG, Stick and TIG welding parameters automatically, all you need to do is enter metal thickness and welding wire or tungsten electrode diameter. It also allows you to fine tune weld settings manually to suit your individual preferences.
The Multimatic™ 215 runs on either 120 volt or 240 volt input power, using Miller's exclusive multi-voltage plug (MVP™) and weighs only 38 pounds. It comes complete with MIG welding gun, stick electrode holder and ground clamp. TIG welding kit is sold separately.
Processes
MIG (GMAW)
Stick (SMAW)
Flux Cored (FCAW)
DC TIG (DC GTAW)
Features
Multiprocess capabilities allow for MIG,
flux-cored, DC TIG and DC stick welding.
Intuitive color LCD user interface makes it
quick and easy to adjust parameters.
Auto-Set Elite can be used on multiple materials
and multiple processes with the ability to fine tune
your settings. Easy to set up and use.
Multi-voltage plug (MVP™) allows you to connect
to 120 or 240 V power receptacles without the
use of any tools - choose the plug that fits the
receptacle and connect it to the power cord
Angled wire drive with Quick Select™ drive roll
for smooth feeding and quick wire changes.
Smooth-Start™ for consistently smooth,
spatter-free MIG starts.
Auto Spool Gun Detect™ automatically detects
when a MIG gun or spool gun is connected
eliminating the need for a switch.
Fan-On-Demand™ power source cooling system
operates only when needed, reducing noise,
energy use and the amount of contaminants
pulled through the machine.
Thermal overload protection automatically
shuts the power source down if airflow through
the unit is blocked or the duty cycle is exceeded.
OPTIONAL TIG
Kit - gives you everything
you need for remote
TIG welding with the
Multimatic 215. Includes RFCS-RJ45 remote foot control, Weldcraft® 150-amp WP17 TIG torch with 25-mm Dinse connector, AK-2 torch accessory kit, regulator and gas hose.
OPTIONAL Spoolmate™
100 OR Spoolmate™ 150 direct-connect spool
gun. The Spoolmate 100 is ideal for running 4043 aluminum and solid MIG wire sizes .023 to .035 diameter. The Spoolmate 150 runs both 5356 and 4043 aluminum and solid MIG wire sizes .030 to .035 diameters
Specs
This is a DC only machine. It cannot TIG weld Aluminum
Comes complete with
Multimatic™ 215 multi-process welder
6.5 ft. (2 m) power cord with MVP plugs
for 120 V and 240 V
10 ft. (3 m) MDX™-100 MIG gun and cable
assembly
13 ft. (4 m) cable electrode holder and
25 mm Dinse-style connector
10 ft. (3 m) work cable with clamp and
25 mm Dinse-style connector
Flow gauge regulator and gas hose for
argon and AR/CO2 mix
Hobart® spool of .030 in. (0.8 mm)
solid wire
Two contact tips for .030 in. (0.8 mm) wire
Quick Select™ drive roll for .024 in.
(0.6 mm) or .030/.035 in. (0.8/0.9 mm)
solid wire, and .030/.035 in.
(0.8/0.9 mm) flux-cored wire
Material thickness gauge #229895
Hook-and-loop cord wraps
FREE Miller® Classic VSi Black auto-darkening welding hood.
FREE Hobart® Fabshield® 21B 2 lb. spool .035 E71T-11 flux-cored welding wire.
Get a FREE Miller® Classic VSi Black auto-darkening welding helmet PLUS a FREE 2 lb. spool of Hobart® Fabshield® 21B .035 E71T-11 flux-cored welding wire with purchase of this Multimatic™ 215 multi-process welder. Expires 6/30/23. (No substitutions allowed.)

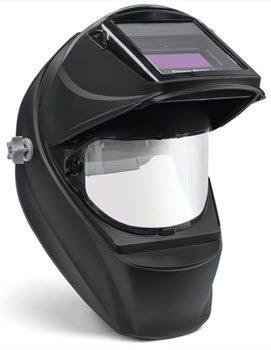

The Miller® Classic Black VSi ClearLight™ welding helmet with integrated grinding shield features a four color variable shade 8-13 auto-darkening lens with Miller's innovative X-Mode™. ClearLight™ offers a bright, crisp, clear view of the weld puddle with more realistic color hues in both light and dark states. The X-Mode™ feature is excellent for welding outdoors or for low amperage welding. The Classic VSi ClearLight gives you the added convenience of a fully integrated grinding shield built right into the helmet.
The Classic Black VSi ClearLight lens also features Miller's replaceable battery/solar-assist Classic Series lens technology (no recharging required). It is one of the most versatile DIY and light industrial welding helmets you can buy. The VSi lens offers unsurpassed light-state clarity and exceptional battery life at an unbeatable price.
Classic Series
The ideal welding helmet for DIY and light-duty industrial applications.
Classic VSi Features
ClearLight™ lens technology optimizes contrast
and clarity in welding and light states - reducing eye strain and operator fatigue
Variable shade 8-13
X-Mode™ allows welding in bright sunlight without unwanted lens darkening. Also detects low amperage DC TIG arc and obstructed-view welding arcs
Manual On/Auto-Off circuitry
Three independent arc sensors
TIG rated down to 5 amps
Features magnifying lens holder
Flip up design with integrated grinding shield
Extra protective lens covers included
Classic Series Specs
Fabshield® 21B Features
E71T11 Self-Shielded Wire - no shielding gas needed
.035 wire diameter
Excellent for general purpose carbon steel welding applications.
Works well on galvanized steel.
All-position, single or multiple pass
PLUS get a $500 cash rebate from Miller® with the purchase of this Miller® Multimatic™ 215 welder. Rebate form must be submitted online HERE within 30 days of original purchase. Offer expires 6/30/23.
Earn additional rebates when you purchase additional Miller® branded accessories or Hobart® filler metals.
