Miller® Trailblazer® 325 Diesel Welder with Excel™ Power, GFCI (Ground Fault Circuit Interruption) & Wireless Interface Control 907799003
The Miller® Trailblazer® 325 Diesel with Excel™ Power, GFCI and Wireless Interface Control features full remote front panel access; including remote amp/voltage control and engine start/stop. The wireless interface control is a handheld unit that controls all weld parameters, stores custom weld settings, displays real time engine status and service intervals, and acts as a remote engine start/stop. Wireless interface control saves fuel, reduces jobsite noise, and enhances worker safety and productivity by reducing trips back and forth to the welder.
The Miller Trailblazer 325 Diesel Welder with GFCI is a 325 amp, 100% duty cycle welder and 12,000 watt AC generator. It comes standard with two - 120 volt duplex receptacles with Ground Fault Circuit Interruption for operation in areas where state or federal law requires GFCI. The Trailblazer 325 Diesel features a Kubota 24.8 HP diesel engine and is lighter, quieter and more fuel efficient than previous models. Trailblazer welder/generators are the most rugged, durable, long-lasting welder/generators available.
Excel™ Power provides 2,400 watts of generator power while the engine is at idle speed, resulting in dramatically reduced fuel costs. Excel Power reduces emissions, operating noise and extends run time hours. The built in battery charger can charge batteries at 12 volts or 24 volts. It produces 75 amps of charging power and up to 350 amps of jump start power.
Processes (X-Ray Quality)
Stick (SMAW)
MIG (GMAW)
Flux Cored (FCAW)
DC TIG (GTAW)
Air Carbon Arc (CAC-A) Cutting and Gouging (3/16 in carbons)
Air Plasma Cutting and Gouging with optional Spectrum models
AC Generator
Applications
Industrial Applications
Fabrication
Maintenance
Repair
Structural Steel Work
Pipe
Sheet Metal
Features
Wireless Interface Control - With wireless interface control, you can change welding processes, adjust parameters, select and save preset programs, turn the machine on/off, get service reminders and more from wherever you are on the jobsite. Extend time between fill ups and maintenance intervals while eliminating the need to go back to your machine to make adjustments.
300 foot operating range from welder to remote
View engine status, fuel level, and battery charge level of remote.
View and select between all available processes.
Turn contactor on/off manually in remote welding mode. Turn engine on/off with remote.
Save custom presets in up to four programs and easily switch between pre-programmed settings.
Quickly adjust and save arc control settings including DIG, DIG range inductance and Auto-Stop.
Adjust amperage or voltage, by increments or percentage, while welding.
Excel™ Power - Excel power provides 120V, 60Hz of pure sine wave generator power at idle speed and while welding. When connected to the Excel power receptacle, you get up to 2400 watts of the cleanest generator power available. Plus, you can run most jobsite tools - like grinders, chop saws, drills and lights at idle speed, which provides:
Exceptional fuel-efficiency
Extended runtimes
Quieter operation
Longer engine life
GFCI receptacles standard - comes complete with two installed 120 volt duplex receptacles with Ground Fault Circuit Interruption
Designed for the professional welder - the Trailblazer® 325 Diesel delivers unbeatable arc performance in all weld processes, providing the smoothest, most stable arc in the industry. The independent welder and generator power system means no interaction between jobsite tools and the welding arc.
Smart-Cor™ technology - Independent weld and generator power in an improved, more compact design.
No interaction between jobsite tools and the welding arc, resulting in:
Stronger, cleaner, more efficient generator power
Reduced size and weight
Improved arc performance
Innovative design - Engine is rotated to the front to create more efficient airflow, resulting in:
Quieter operation
Reduced size and weight
Easier maintenance
Improved Arc Performance -
Three Stick modes for optimized arc performance - EXX18, EXX10 and Gouge
Two Wire modes for simplified setup - Solid and Flux-Core
Three TIG modes for optimized arc performance - Auto-Stop™, Auto-Crater™ and Pulse
TIG Pulse mode available for out-of-position welding, thin metals and stainless steel where a lower amount of heat is desired while welding
Infinite arc control available in the Stick and Solid Wire modes for easier fine tuning of tough-to-weld materials and out-ofposition applications
Kubota® D902 three cylinder diesel engine produces 24.8 horsepower at 3,600 RPM
Ultra-adaptive arc control - Unlike conventional DIG that provides a preset amount of short-clearing current, Miller-exclusive Dynamic DIG technology works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. Delivers a smoother more consistent arc that can be tailored to match application, material, fit-up and welder technique.
Innovative design - Engine is rotated to the front to create more efficient airflow, resulting in:
Quieter operation
Reduced size and weight
Easier maintenance
More portable, uses less truck space - Miller Trailblazer welder/generators are up to 17% smaller and 10% lighter then competitive machines, which means moving them is faster and easier, for maximum productivity. And because they take up less space, Trailblazer welder/generators let work trucks carry more equipment and gear, so your work crews can be ready for anything.

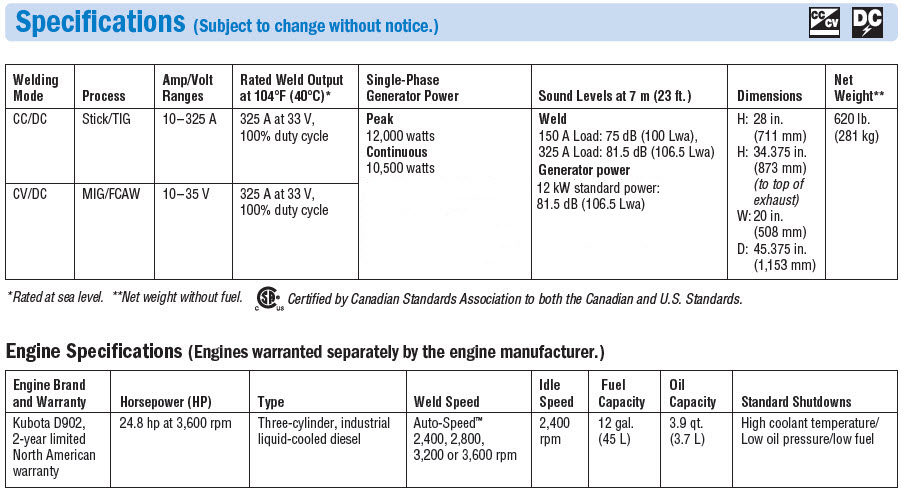

Specs
PLUS get a FREE 500 ft. reel of 2/0 neoprene jacketed welding cable with the purchase of this Miller® Trailblazer® 325 Diesel welder. While supplies last. (No substitutions allowed.)
Kalas ToughFlex™ 2/0 welding cable, in 500 foot reel, is premium, neoprene jacketed, 600 volt copper cable designed to stay flexible, even in cold weather. Cable is marked in one foot increments for the entire length of the reel.
Resists oil, chemicals, water, ozone and solvents
EPDM insulation for optimum cold weather flexibility and excellent spatter resistance
Sequential foot-marked
RoHS compliant
UL® Listed
